Sony SA-WCT800 - EXPLODED VIEWS - SPEAKER SECTION

27
SA-WCT800
SECTION 5
EXPLODED VIEWS
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
 
Parts Color Cabinet’s Color

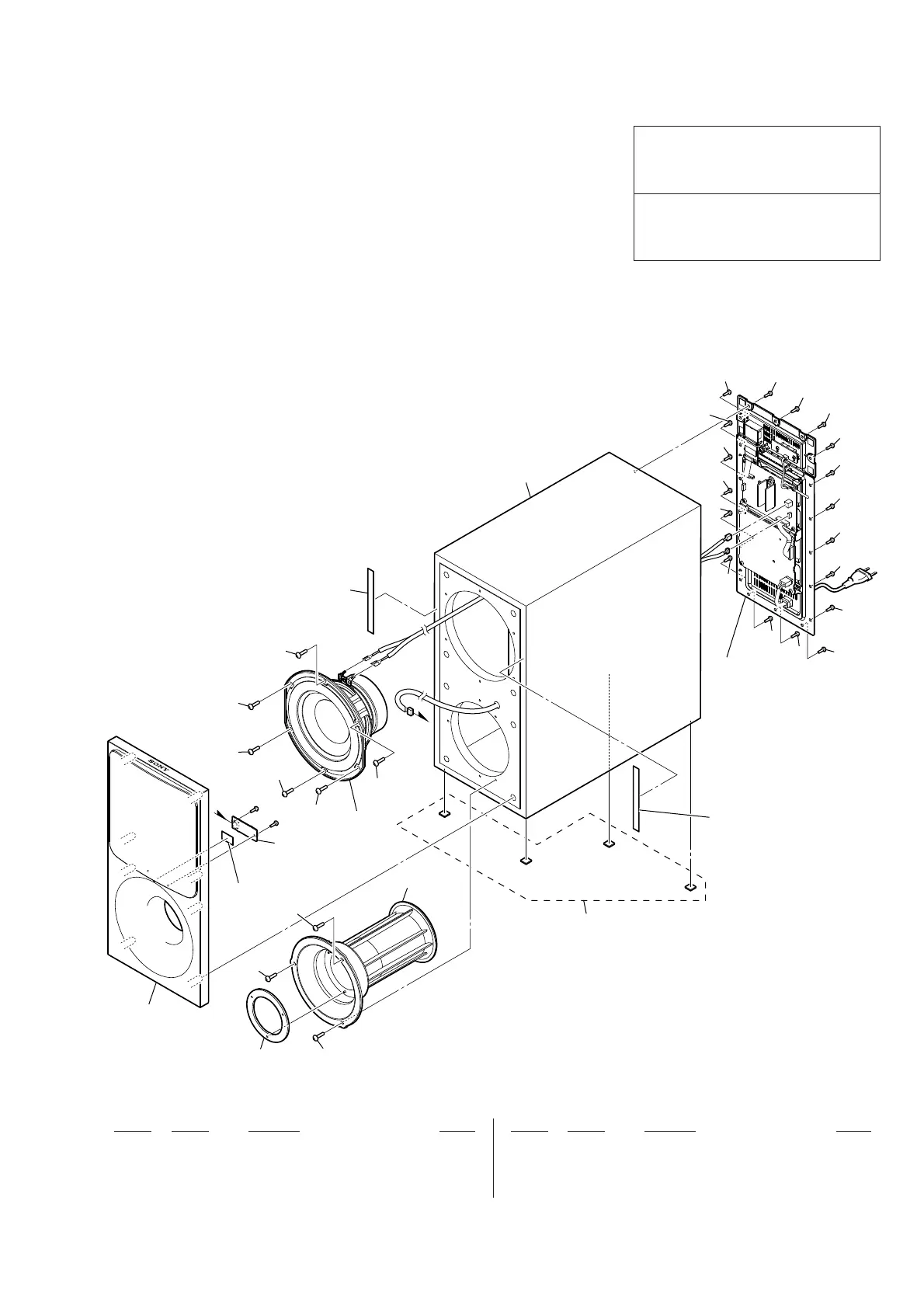

5-1. SPEAKER SECTION
not supplied
#1
1
A
A
not supplied
not supplied
(SUB LED board)
not supplied
not supplied
not supplied
#1
not supplied
AMP section
2
2
2
2
2
2
2
2
2
SP1
4
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
1 X-2592-717-1 FRONT PANEL ASSY
2 4-238-407-12 SCREW (1) (4X20), +BV TAPPING
3 4-874-614-62 SCREW (1) (3.5X16), TAPPING
4 2-682-469-11 FOOT (SW) (4 pieces, 1 set)
SP1 1-859-162-11 LOUDSPEAKER (160 mm)-162-11
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
Les composants identifi és par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce por-
tant le numéro spécifi é.
