Sony SA-WMS215 - Schematic Diagram

SA-VE215/WMS215/SS-MS215
44

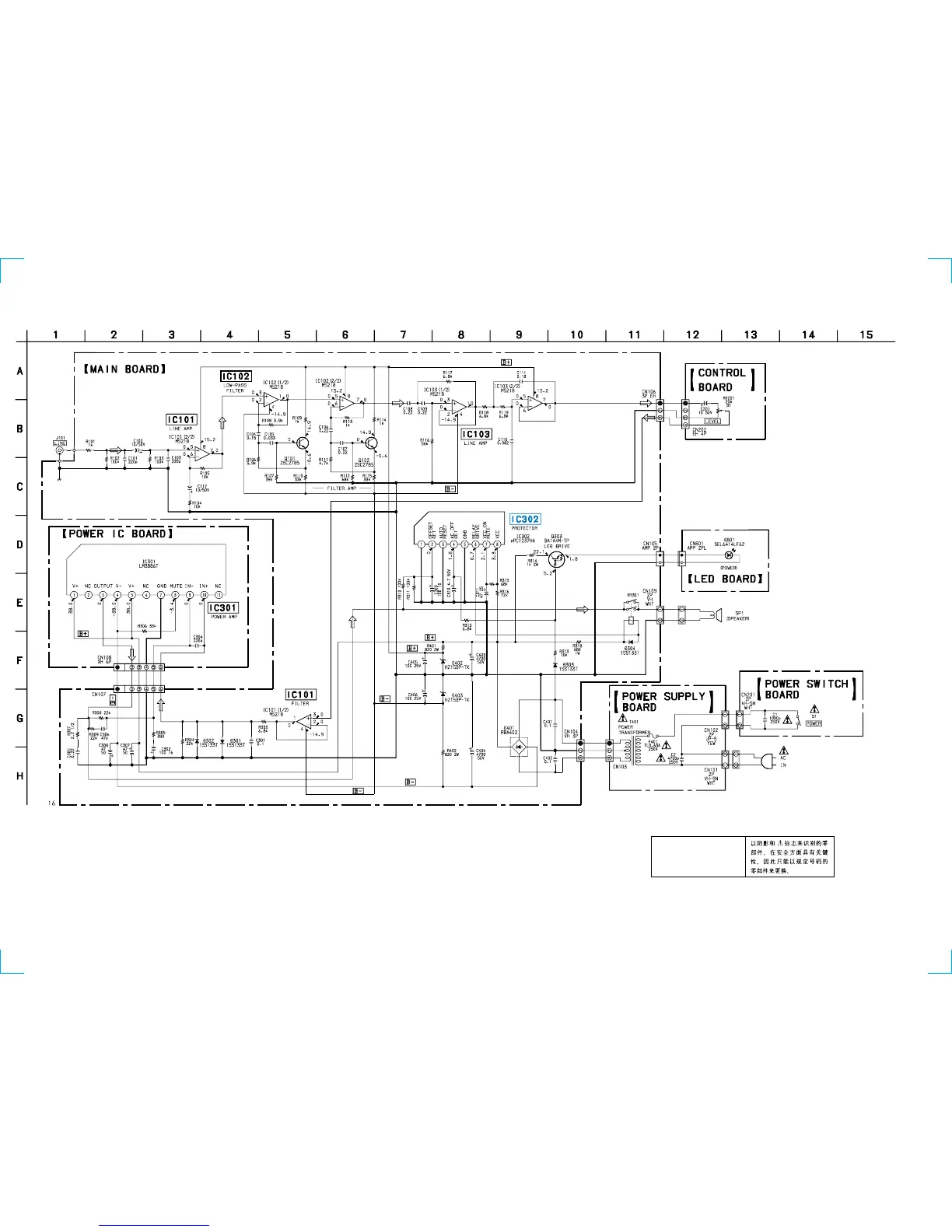

1-2. SCHEMATIC DIAGRAM (SA-WMS215)
• See page 3 for IC block diagram.
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
