Sony SA-WMS215 - Exploded Views; SA-WMS215 (Part 1); SA-WMS215 (Part 2)

66
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.

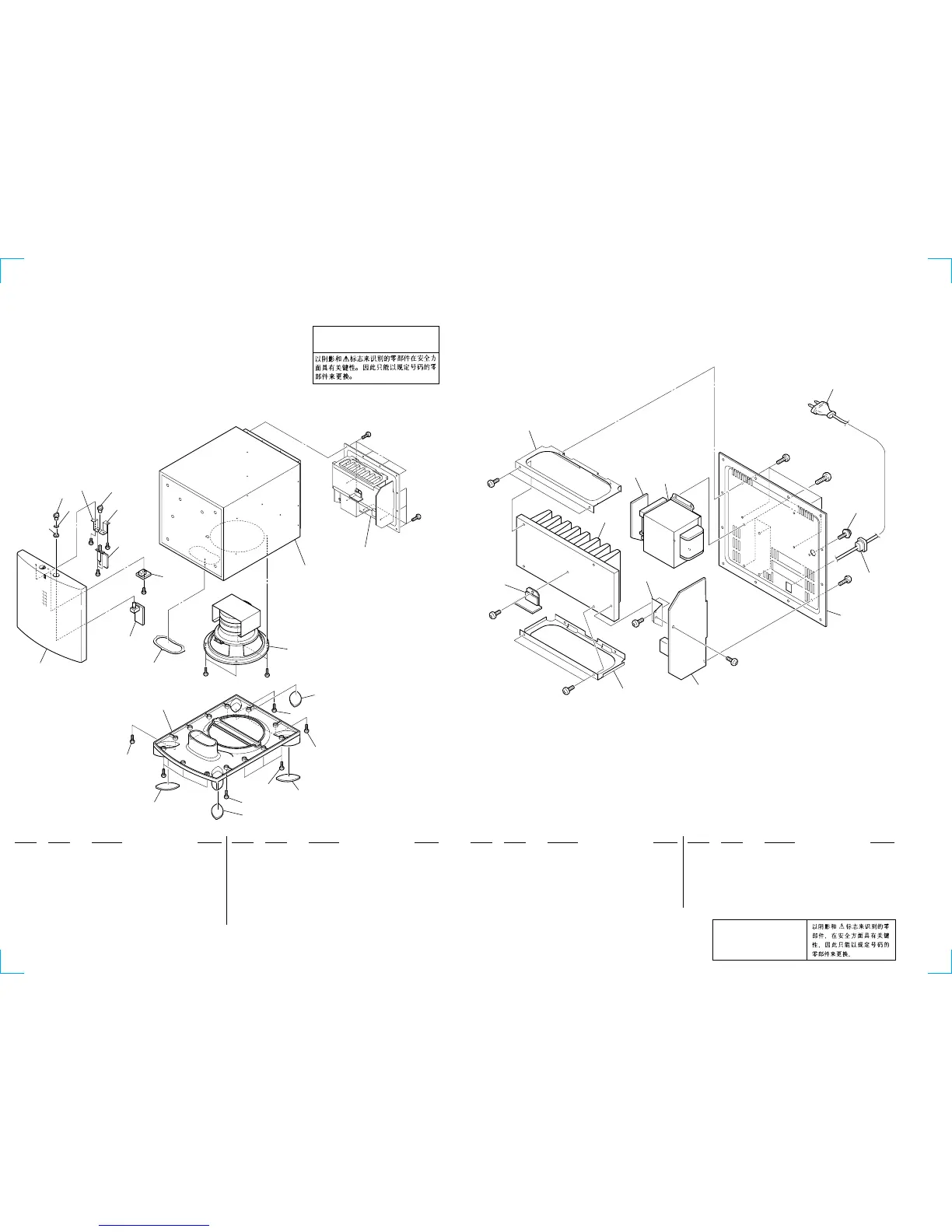

SECTION 2
EXPLODED VIEWS
2-1. SA-WMS215 (1)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
2-2. SA-WMS215 (2)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
1
2
3
4
5
7
6
9
10
11
12
12
12
12
12
11
11
11
Amplifier
section
SP1
8
#1
#1
#2 #2
#2
#2
#5
supplied
with RV201
#5
#5
not
supplied
not
supplied
51
52
53
54
55
56
T401
58
not supplied
not supplied
not supplied
#4
#4
#4
#4
#3
#5
#3
#4
not
supplied
1 A-4412-320-A PANELASSY, FRONT
2 4-229-516-01 KNOB (VOL)
3 4-220-465-01 WASHER, INSULATING
4 4-229-517-01 KNOB (SW)
5 1-678-476-11 POWER SWITCH BOARD
6 1-678-475-11 CONTROL BOARD
7 1-678-478-11 LED BOARD
8 4-229-518-01 PACKING (D)
9 A-4412-321-A CABINET ASSY
10 4-229-514-01 PANEL, BOTTOM
11 4-229-522-11 FOOT
12 4-229-966-01 SCREW (4X16), +BV TAPPING
SP1 1-529-764-11 SPEAKER (16cm)
#1 7-685-163-01 SCREW +P4X16 TYPE1
#2 7-685-646-79 SCREW +BVTP3X8 TYPE2 N-S
#5 7-685-660-19 SCREW +BVTP4X10 TYPE2 N-S
51 1-678-477-11 POWER IC BOARD
52 A-4473-638-A MAIN BOARD, COMPLETE
53 1-678-474-11 POWER SUPPLY BOARD
54 4-228-899-11 REAR PANEL (AEP,EE,CIS,CH,AUS,UK)
54 4-228-899-21 REAR PANEL (HK,MY,SP)
* 55 3-703-244-00 BUSHING (2104), CORD
0 56 1-777-071-11 CORD, POWER
58 3-710-901-11 SCREW, TAPPING
0 T401 1-435-608-11 TRANSFORMER, POWER
#3 7-685-647-79 SCREW +P3X10 TYPE2 NON-SLIT
#4 7-685-648-79 SCREW +P3X12 TYPE2 NON-SLIT
#5 7-685-660-19 SCREW +BVTP4X10 TYPE2 N-S
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
• Accessories and packing materials are given in
the last of this parts list.
• Abbreviation
EE : East European model.
AUS : Australian model.
CH : Chinese model.
HK : Hong Kong model.
MY : Malaysia model.
SP : Singapore model.
