Sony SA-WMS215 - Printed Wiring Board

SA-VE215/WMS215/SS-MS215
55

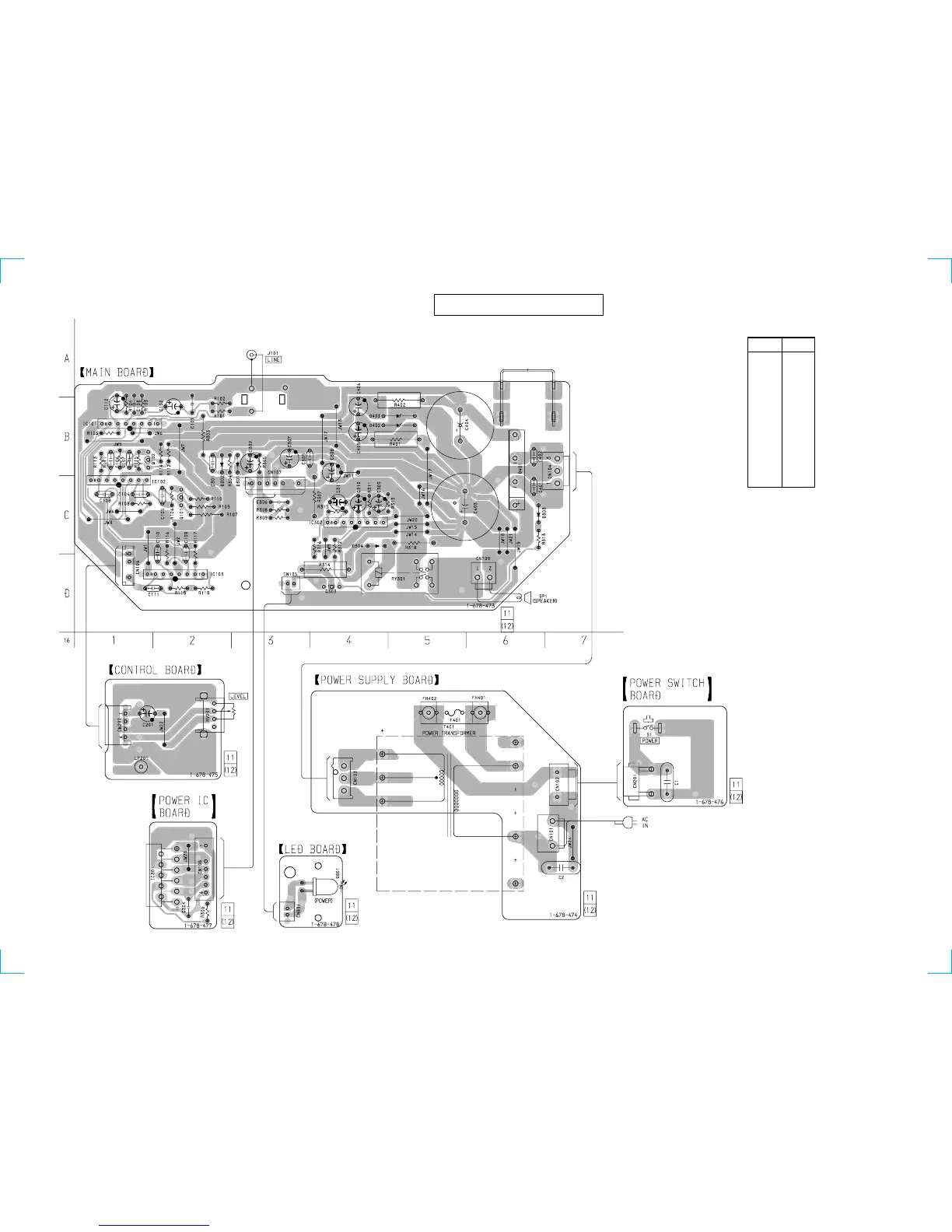

1-3. PRINTED WIRING BOARD (SA-WMS215)
• See page 3 for Circuit Boards Location.
There are a few cases that the part printed on
this diagram isn’t mounted in this model.
Ref. No. Location
D301 B-3
D302 B-2
D303 C-6
D304 C-4
D401 B-6
D402 B-4
D403 B-4
IC101 B-1
IC102 C-1
IC103 D-2
IC302 C-4
Q101 C-2
Q102 B-2
Q303 D-4
• Semiconductor
Location
