Sony SA-WMS445 - 2-2. REAR PANEL SECTION (SA-WMS445)

8
SA-VE445H/WMS445/SS-MS445
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark

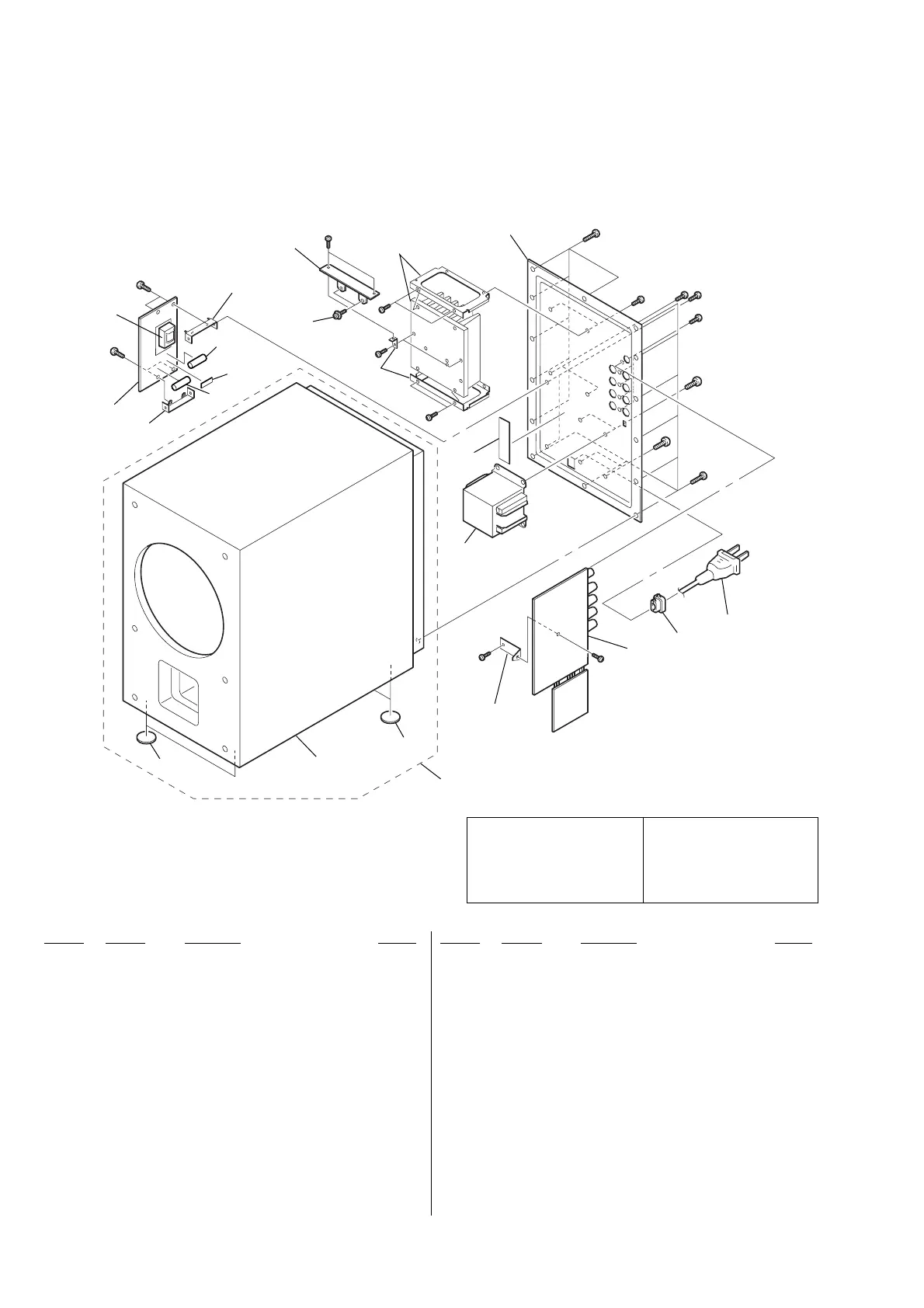

2-2. REAR PANEL SECTION
(SA-WMS445)
51 4-235-237-01 FOOT (AUS,SP,MY)
51 4-981-864-01 FOOT (US,CND)
52 1-680-789-11 AUTO POWER BOARD
* 53 3-701-946-24 LABEL, FUSE RATING (US,CND)
54 1-680-786-11 POWER BOARD
55 3-905-609-01 SCREW (TRANSISTOR)
* 56 3-703-044-26 LABEL, CAUTION (US,CND)
057 1-696-845-31 CORD, POWER (AUS)
057 1-769-744-52 CORD, POWER (SP,MY)
057 1-783-531-11 CORD, POWER (US,CND)
* 58 3-703-244-00 BUSHING (2104), CORD
59 A-4732-162-A MAIN BOARD, COMPLETE (AUS,SP,MY)
59 A-4732-172-A MAIN BOARD, COMPLETE (US,CND)
60 A-4736-759-A CABINET ASSY, SPEAKER (US,CND)
60 A-4736-769-A CABINET ASSY, SPEAKER (AUS,SP,MY)
0 F601 1-532-463-31 FUSE (T1AL/250V) (AUS)
0 F601 1-532-501-31 FUSE (T0.8AL/250V) (SP,MY)
0 F601 1-533-418-11 FUSE, GLASS CYLINDRICAL (DIA.5)
(2.5A/125V) (US,CND)
0 F602 1-532-503-31 FUSE (T1.6AL/250V) (SP,MY)
0 T501 1-435-999-11 TRANSFORMER, POWER (US,CND)
0 T501 1-437-219-12 TRANSFORMER, POWER (SP,MY)
0 T501 1-437-246-11 TRANSFORMER, POWER (AUS)
0 T601 1-435-993-11 TRANSFORMER, POWER (US,CND)
0 T601 1-435-994-11 TRANSFORMER, POWER (AUS)
0 T601 1-435-995-11 TRANSFORMER, POWER (SP,MY)
#3 7-685-647-79 SCREW +P 3X10 TYPE2 NON-SLIT
#4 7-685-663-79 SCREW +BVTP 4X16 TYPE2 N-S
#5 7-685-660-19 SCREW +BVTP 4X10 TYPE2 N-S
