8
SA-VE835ED/WMS835/SS-MS835
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark

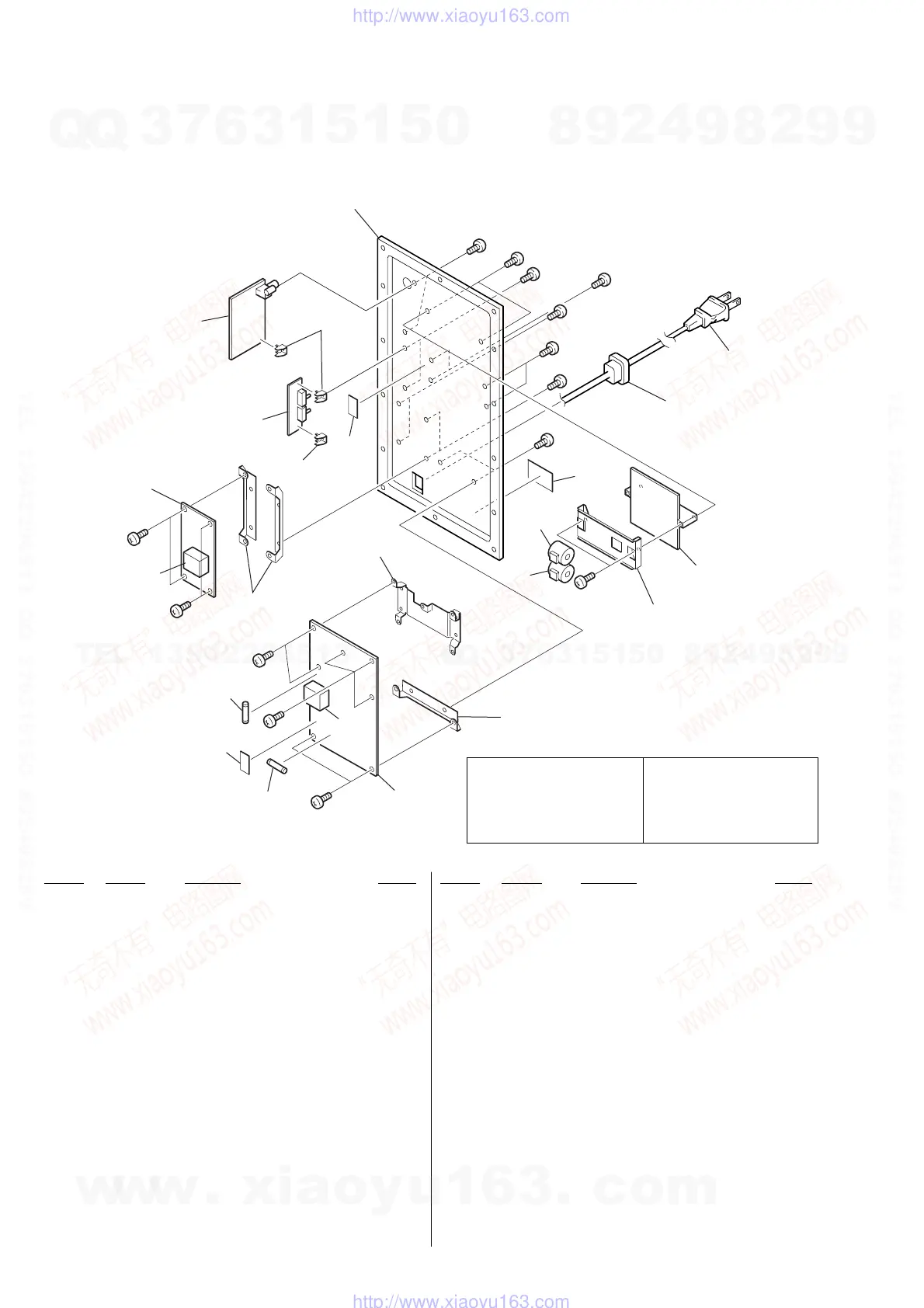

2-2. REAR PANEL SECTION
(SA-WMS835)
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
51 A-4676-377-A MAIN POWER BOARD, COMPLETE (US,CND,MX)
51 A-4676-386-A MAIN POWER BOARD, COMPLETE
(AEP,UK,SP,AR,KR)
52 A-4676-383-A AUTO POWER BOARD, COMPLETE
53 1-684-637-11 INPUT SELECT BOARD
54 A-4728-652-A INPUT BOARD, COMPLETE
55 4-239-408-01 PANEL, REAR (US,MX)
55 4-239-408-11 PANEL, REAR (CND)
55 4-239-408-21 PANEL, REAR (AEP,UK,SP)
55 4-239-408-41 PANEL, REAR (AR)
55 4-239-408-51 PANEL, REAR (KR)
* 56 3-703-244-00 BUSHING (2104), CORD
057 1-769-744-52 CORD, POWER (AEP,SP)
057 1-696-570-21 CORD, POWER (UK)
057 1-783-820-11 CORD, POWER (US,CND)
057 1-783-941-22 CORD, POWER (AR)
057 1-824-778-11 CORD, POWER (KR)
58 3-701-946-31 LABEL, FUSE RATING (US,CND,MX)
* 59 3-701-946-28 LABEL, FUSE RATING (US,CND,MX)
* 60 3-703-044-26 LABEL, CAUTION (US,CND,MX)
0 F901 1-532-504-31 FUSE, CYLINDRICAL (TIME-LAG) (T4A/250V)
(AEP,UK,SP,AR,KR)
0 F901 1-533-310-11 FUSE, GLASS CYLINDRICAL (DIA.5)
(6.3A/125V) (US,CND,MX)
0 F902 1-533-312-11 FUSE, GLASS CYLINDRICAL (DIA.5)
(10A/125V) (US,CND,MX)
0 F902 1-533-949-31 FUSE, CYLINDRICAL (TIME-LAG) (T8A/250V)
(AEP,UK,SP,AR,KR)
FC1 1-543-993-11 CORE, FERRITE
FC2 1-543-993-11 CORE, FERRITE
IC1 6-700-752-01 IC ICE250A-SW
0 T201 1-437-793-11 TRANSFORMER, POWER (US,CND,MX)
0 T201 1-437-794-11 TRANSFORMER, POWER (AEP,UK,SP,AR,KR)
0 T901 1-437-232-11 TRANSFORMER, POWER (US,CND,MX)
0 T901 1-437-233-11 TRANSFORMER, POWER (AEP,UK,SP,AR,KR)
#7 7-685-160-19 SCREW +P 4X10 TYPE2 NON-SLIT
#8 7-685-751-09 SCREW +PTT 3X6 (S)
#9 7-682-560-09 SCREW +B 4X6
#10 7-685-871-09 SCREW +BVTT 3X6 (S)
51
59
52
53
54
55
56
57
#8
#8
#8
#8
#8
#7
FC1
FC2
#9
#10
not supplied
not supplied
not supplied
not supplied
not supplied
IC1
not supplied
#10
#10
#10
#10
#10
#10
58
60
F902
T201
F901
T901
Ver 1.1
