SA-VE835ED/WMS835/SS-MS835
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark

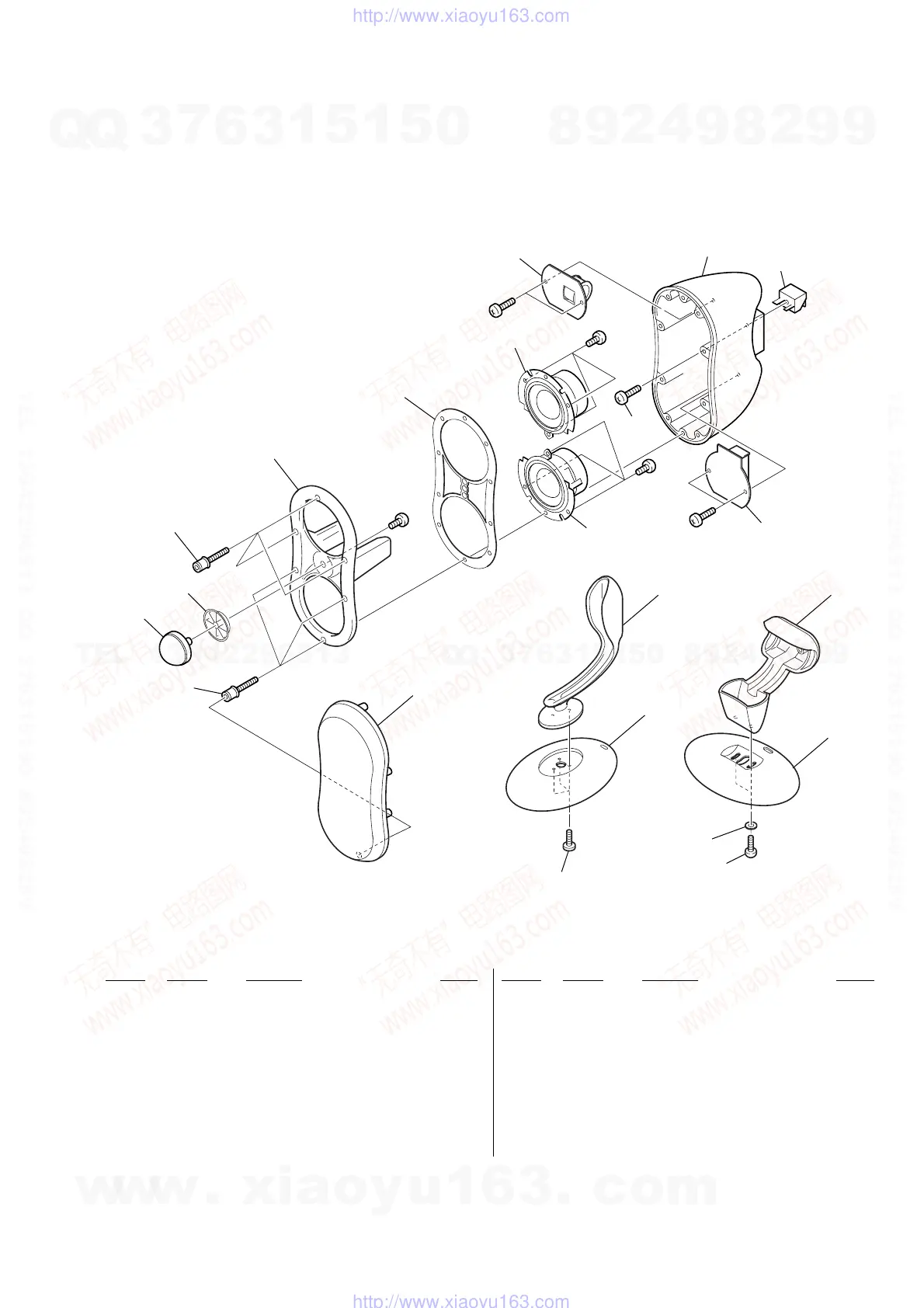

2-3. SPEAKER SECTION
(SS-MS835)
101 X-4954-548-1 FRAME ASSY (V), GRILLE (VERTICAL TYPE)
101 X-4954-566-1 FRAME ASSY (H), GRILLE (HOLIZONTAL TYPE)
102 4-238-678-01 SCREW, ORNAMENTAL
103 4-239-114-01 PANEL, FRONT
104 4-986-971-11 SCREW (3.5)
105 4-239-118-01 PACKING
106 1-761-530-11 MAIN BOARD
107 1-694-516-21 TERMINAL, SPEAKER
108 4-239-107-01 STAY (V)
109 4-239-106-01 BASE (V)
110 4-222-029-01 SCREW (+P 3.5X14)
111 4-239-109-01 STAY (H)
112 4-239-108-01 BASE (H)
113 4-219-450-01 SCREW (M5X16)
SP2 1-825-068-11 SPEAKER (5.7cm)
SP3 1-825-068-11 SPEAKER (5.7cm)
SP4 1-825-079-11 SPEAKER (1.9cm)
#11 7-682-145-01 SCREW +P 3X4
