SA-WMSP68

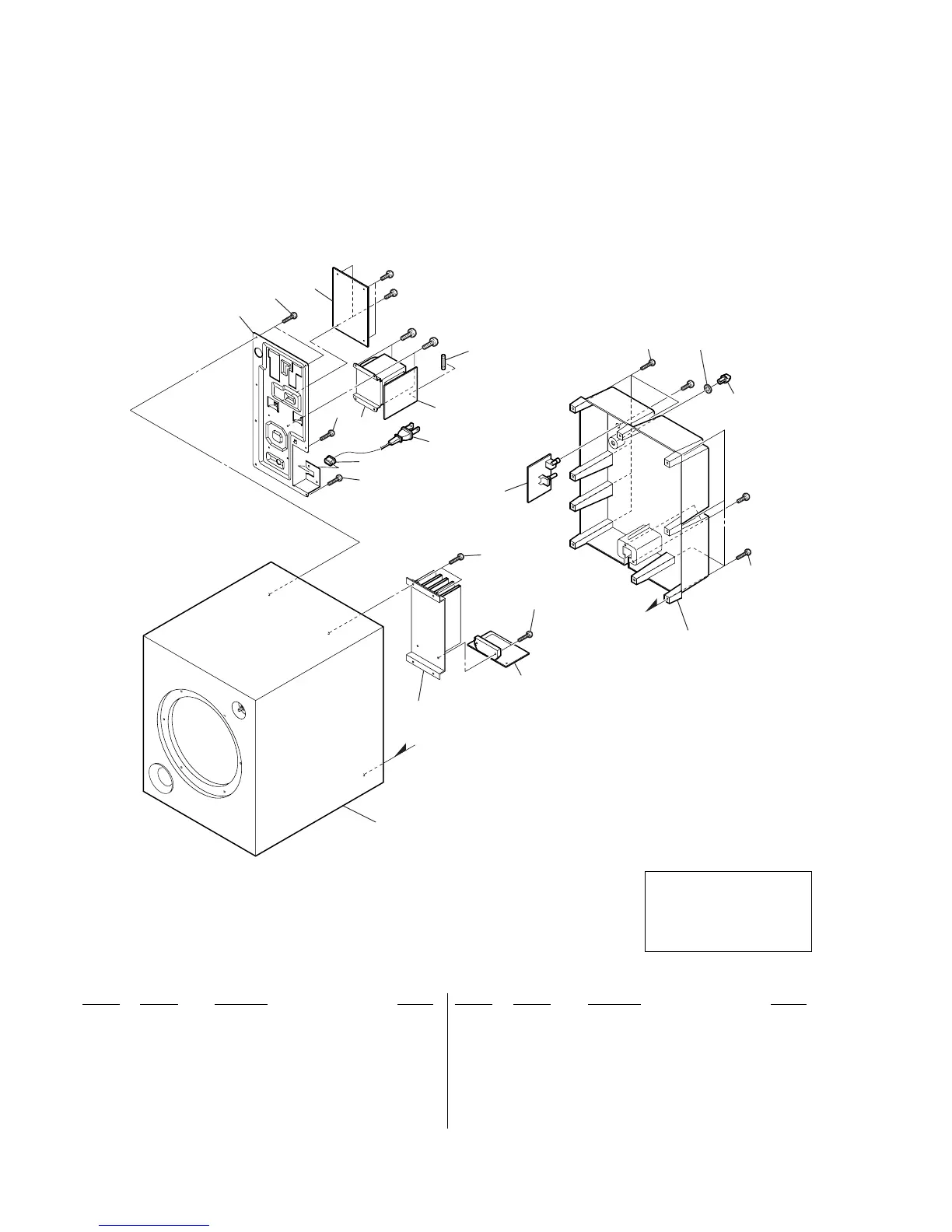

2-2. REAR SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 A-4713-864-A CABINET ASSY, SPEAKER
52 4-235-677-01 SCREW (4X20) (TYPE1), +BVTP
53 3-905-609-31 SCREW (TRANSISTOR)
* 54 3-703-244-00 BUSHING (2104), CORD
055 1-783-820-11 CORD, POWER
56 A-4751-955-A MAIN BOARD, COMPLETE
57 4-999-482-81 KNOB (VOL)
58 A-4751-957-A POWER AMP BOARD, COMPLETE
59 4-253-276-01 REAR (COVER)
0 F901 1-533-450-12 FUSE, GLASS TUBE (DIA.5) (2.5A/125V)
0 T1 1-439-625-12 TRANSFORMER, POWER
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
#2 7-685-881-09 SCREW +BVTT 4X8 (S)
F901
51
52
52
52
52
52
54
53
55
56
57
58
59
A
A
supplied with RV201
not supplied
(POWER TRANS board)
not supplied
(CONTROL board)
not supplied
T1
#2
#1
#1
#1
#1
#2
not supplied
52
The components identified by
mark 0 or dotted line with mark.
0 are critical for safety.
Replace only with part number
specified.
To Next Page
