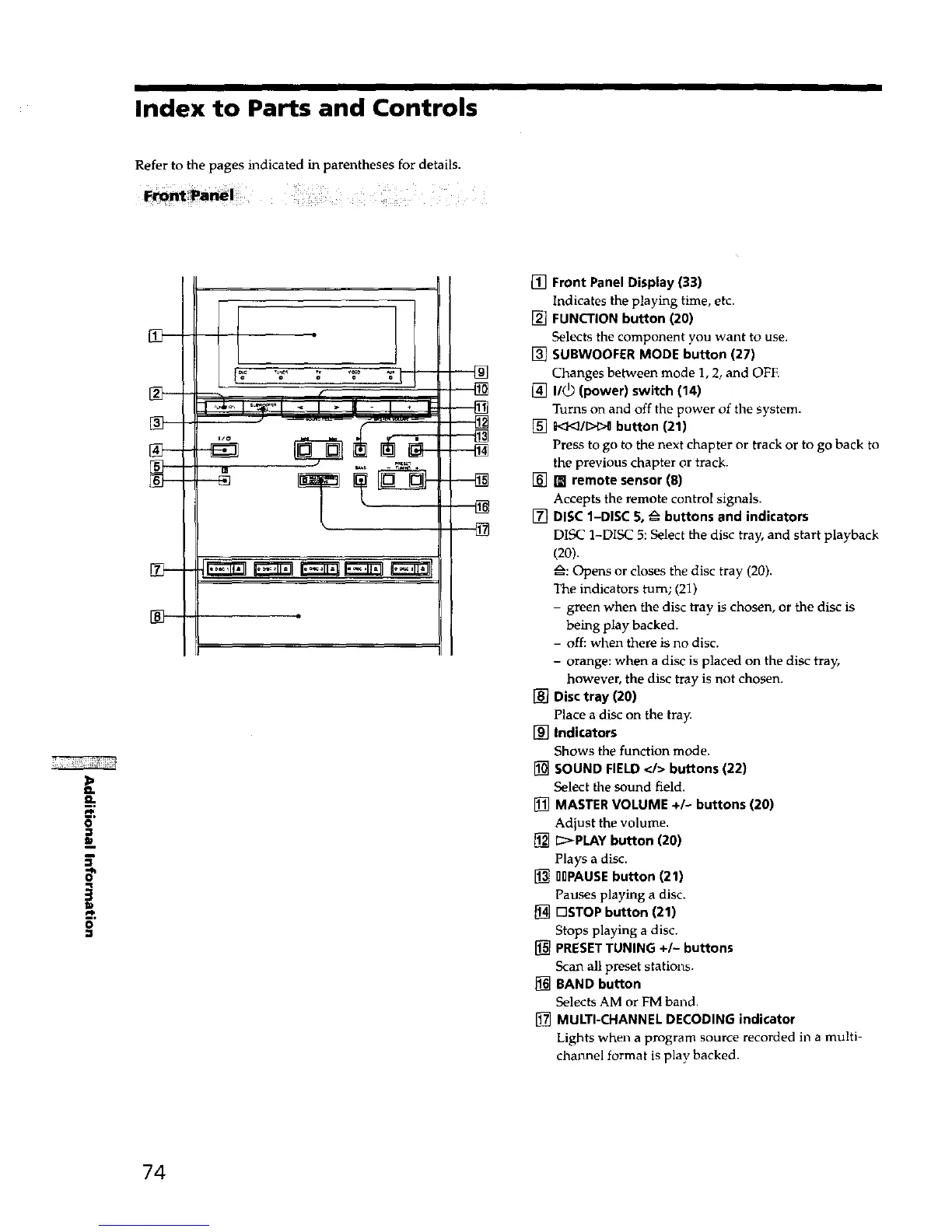

Index to Parts and Controls
Refer to the pages indicated in parentheses for details.
i
o
[]
[]
E?-
[]
[]
[]
[]
[] Front Panel Display (33)
Indicates the playing time, etc.
[] FUNCTION button (20)
Selects the component you want to use.
[] SUBWOOFER MODE button (27)
Changes between mode 1, 2, and OFF.
[] I/_ (power) switch (14)
Turns on and off the power of the system.
[] i<3<_/E>_>Sbutton (21)
Press to go to the next chapter or track or to go back to
the previous chapter or track.
[] [] remote sensor (8)
Accepts the remote control signals.
[] DISC 1-DISC 5, _ buttons and indicators
DISC 1-DISC 5: Select the disc tray, and start playback
(20).
_: Opens or closes the disc tray (20).
The indicators turn; (21)
- green when the disc tray is chosen, or the disc is
being play backed.
- off: when there is no disc.
- orange: when a disc is placed on the disc tray,
however, the disc tray is not chosen.
[] Disc tray (20)
Place a disc on the tray.
[] Indicators
Shows the function mode.
[] SOUND FIELD</> buttons (22)
Select the sound field.
[] MASTER VOLUME +/- buttons (20)
Adjust the volume.
[] E_>PLAYbutton (20)
Plays a disc.
[] 0nPAUSEbutton (21)
Pauses playing a disc.
[] []STOP button (21)
Stops playing a disc.
[] PRESETTUNING +/- buttons
Scan all preset stations.
[] BAND button
Selects AM or FM band.
[_ MULTI-CHANNEL DECODING indicator
Lights when a program source recorded ill a multi-
channel format is play backed.
74
