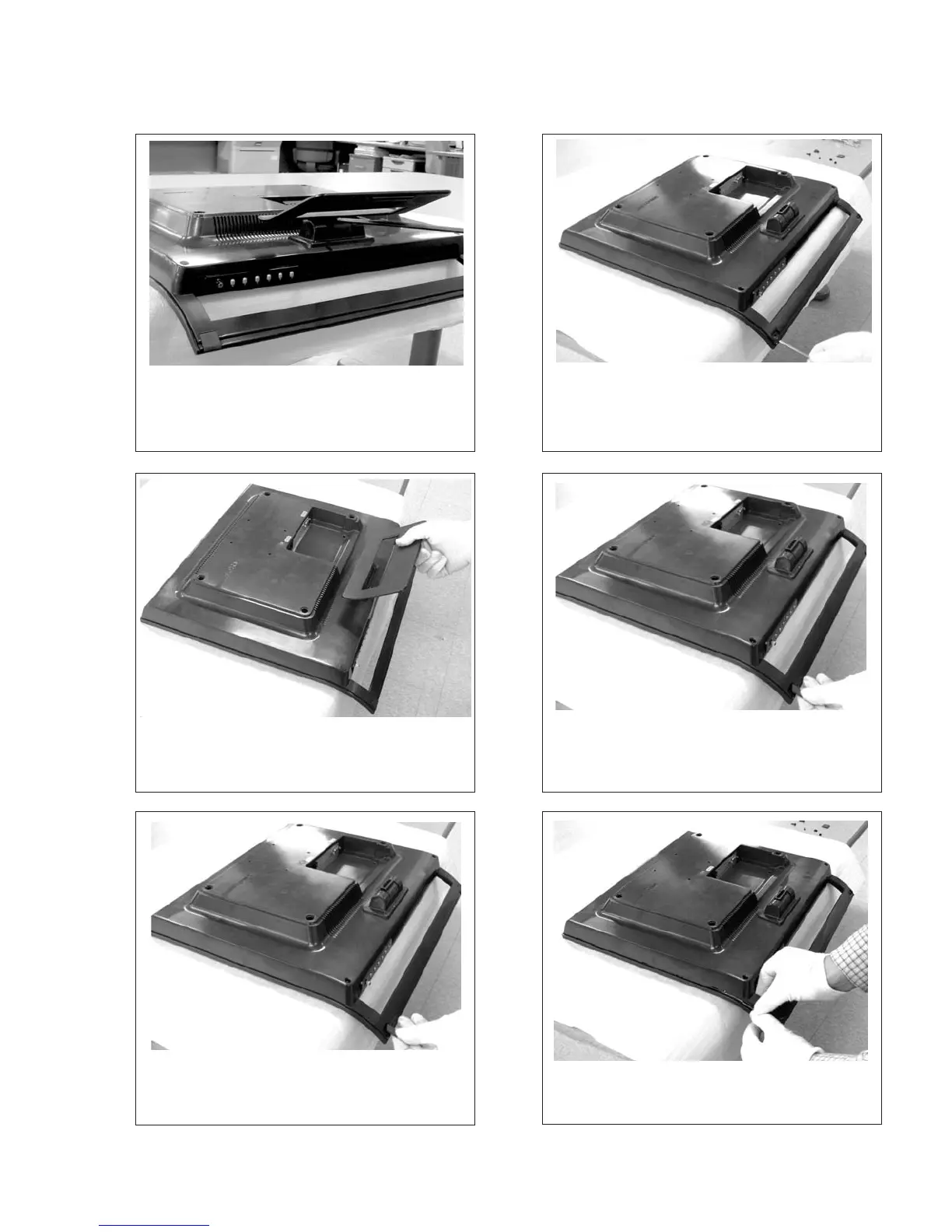

DISASSEMBLY
1) Please remove Screws which are between Hinge and
Stand support like picture.
4) Please lift the left-bottom side edge of Back cabinet
with tip-jig like picture, then latch will be departed.
5) Please lift the bottom side of Back cabinet with
fingertip like picture, then latch will be departed.
6) Please pull the left side of Back cabinet like picture
then latch will be departed.
2) Please pull the Stand support at the Hinge, then Stand
support will be departed.
3) Please remove the screw cover at the Back cabinet,
then screw cover will be departed.
# 1 # 4
# 2 # 5
# 3 # 6
To Next Page
