SDM-X82(E) 1-1
SECTION 1
DISASSEMBLY

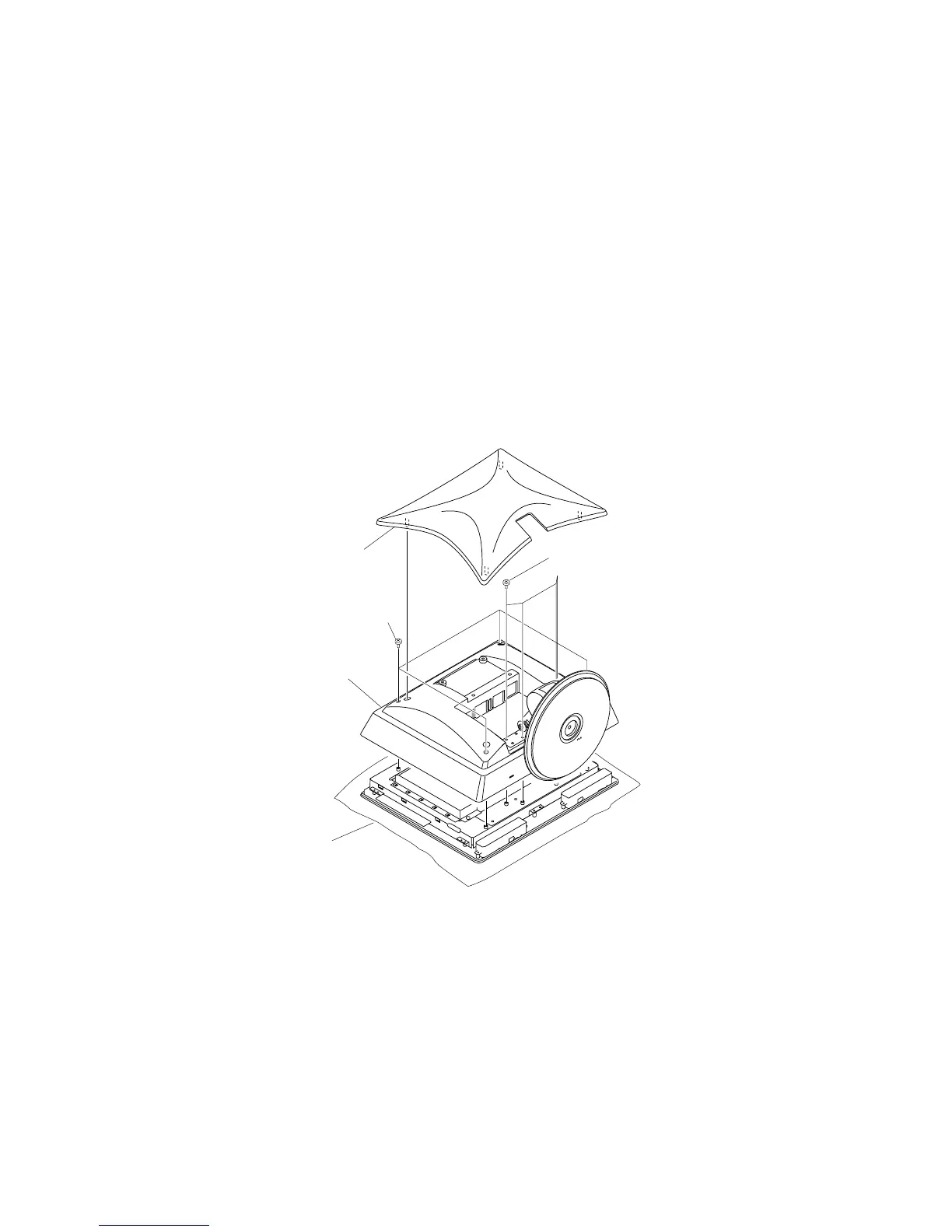

1-1. REAR COVER AND CABINET ASSY REMOVAL
1 Rear cover
4 Cabinet assy
3 Four screws
(+PWH 3X12)
2 Four screws
(+PSW 4X10)
Protection sheet
