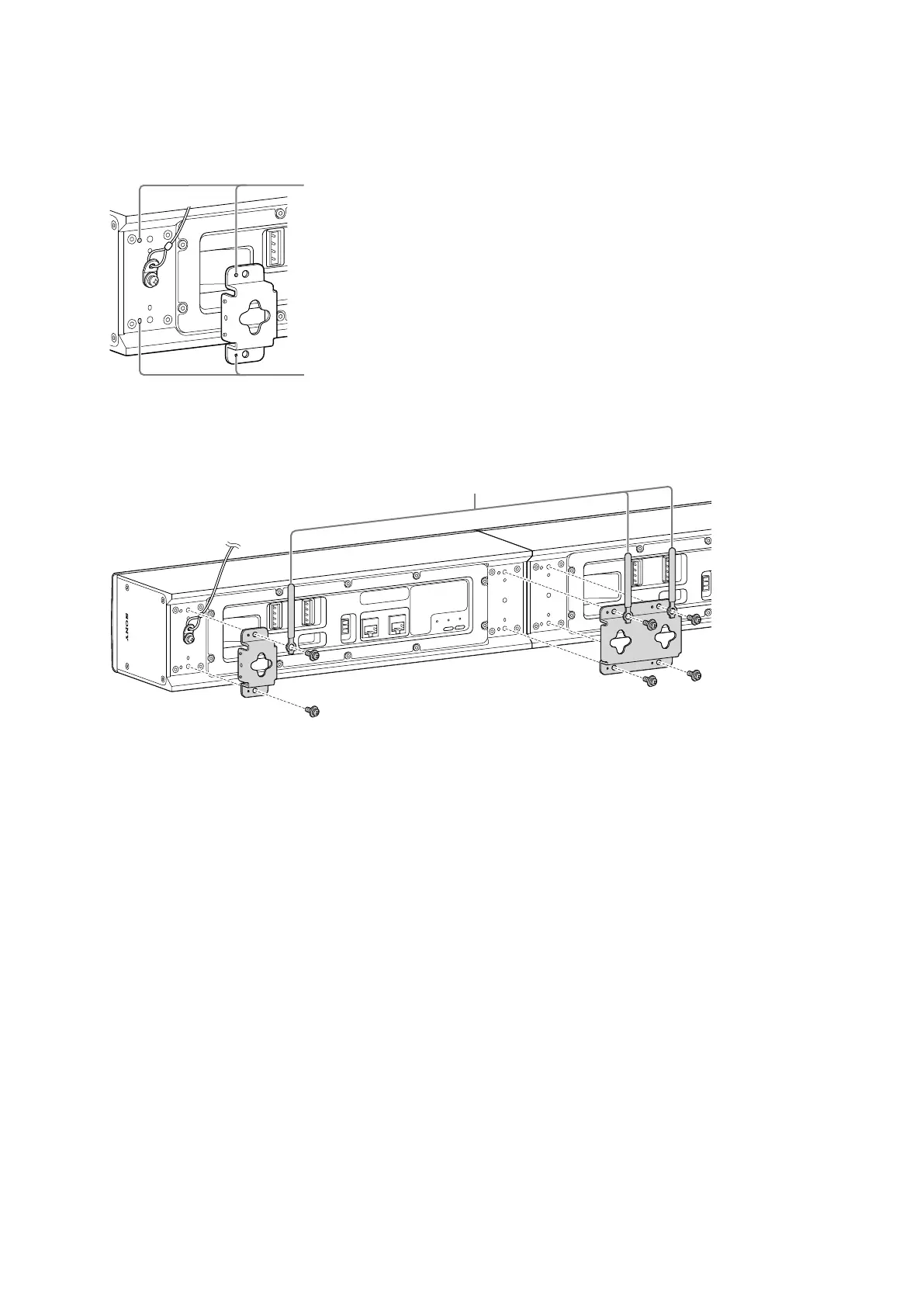

Attach the speaker bracket to the rear surface of the speaker with a 4×10 screw with washer.
Using the dowels and the dowel holes as reference points for positioning, align the position of the speaker
bracket for attachment (
).
To the joint section of the first and second speakers, attach the speaker joint bracket with 4×10 screws with
washers.
Tightening torque: 2.0 N·m
When using only one speaker, attach the speaker bracket to either end of the speaker.
Note
• When attaching the speaker joint bracket, put a linear object, such as a ruler, against the adjoining speakers to keep them
aligned straight.
Hint
• For bundling cables, attach the cable clamp (
) together with the speaker bracket.
• Pull out the safety wire through a corner gap between the speaker bracket and the speaker.
