7-1
SLV-772HF/779HF
SECTION 7
REPAIR PARTS LIST
7-1. EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
• Abbreviation
CND: Canadian
The components identified by mark ! or
dotted line with mark ! are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
! sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

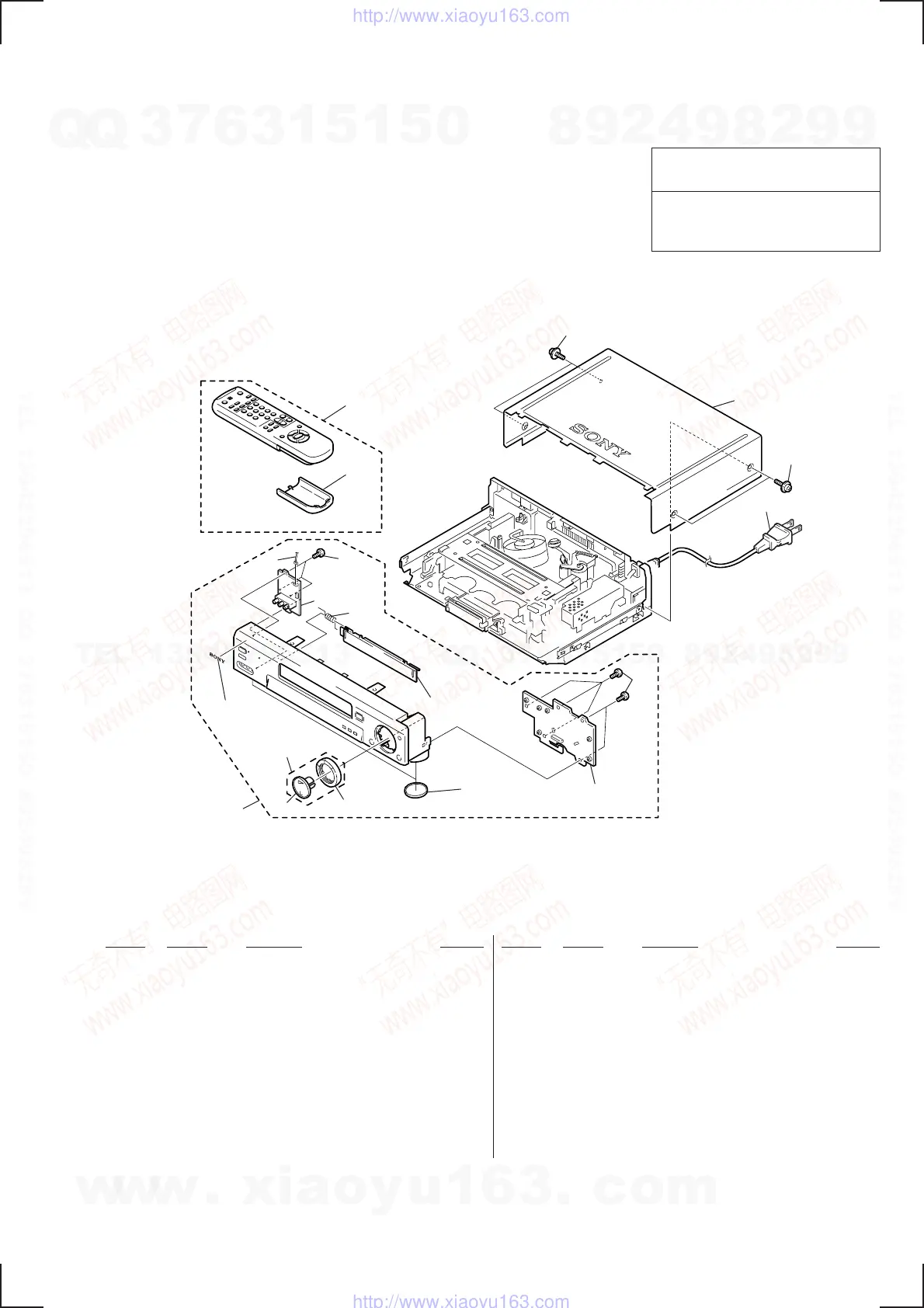

7-1-1. FRONT PANEL AND UPPER CASE SECTION
14
15
14
16
11
5
3
17
10
4
9
11
12
13
18
7
2
1
not supplied
1 X-3949-121-1 PANEL ASSY, FRONT (779)
1 X-3949-531-1 PANEL ASSY, FRONT (772)
2 3-972-518-11 BUTTON, CENTER (772)
2 3-987-939-22 BUTTON CENTER (779)
3 3-987-938-21 BUTTON, RING (779)
3 3-987-816-01 RING, BUTTON (772)
4 X-3948-232-1 BUTTON ASSY, FUNCTION (779)
4 X-3948-599-1 BUTTON ASSY, FUNCTION (772)
* 5 A-6791-804-A DM-84 BOARD, COMPLETE
* 7 A-6791-803-A MF-316 BOARD, COMPLETE
9 3-953-432-01 SPRING (GE), FL
10 3-979-302-61 DOOR, CASSETTE (779)
11 4-921-277-41 SCREW (B2.6 × 8), TAPPING, BIND
12 3-709-432-01 COVER, REMOTE CONTROL BATTERY
13 1-418-153-11 COMMANDER, STANDARD (RMT-V266)
14 3-710-901-11 SCREW, TAPPING
15 3-977-136-71 CASE, UPPER (772)
15 3-977-136-81 CASE, UPPER (779)
! 16 1-790-293-31 CORD, POWER
* 17 3-977-160-01 INSULATOR
18 1-779-725-11 CONNECTOR, BOARD TO BOARD 5P
