Sony SLV-E730UX - 8-1-4. MECHANISM CHASSIS ASSEMBLY (2)

8-5
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark

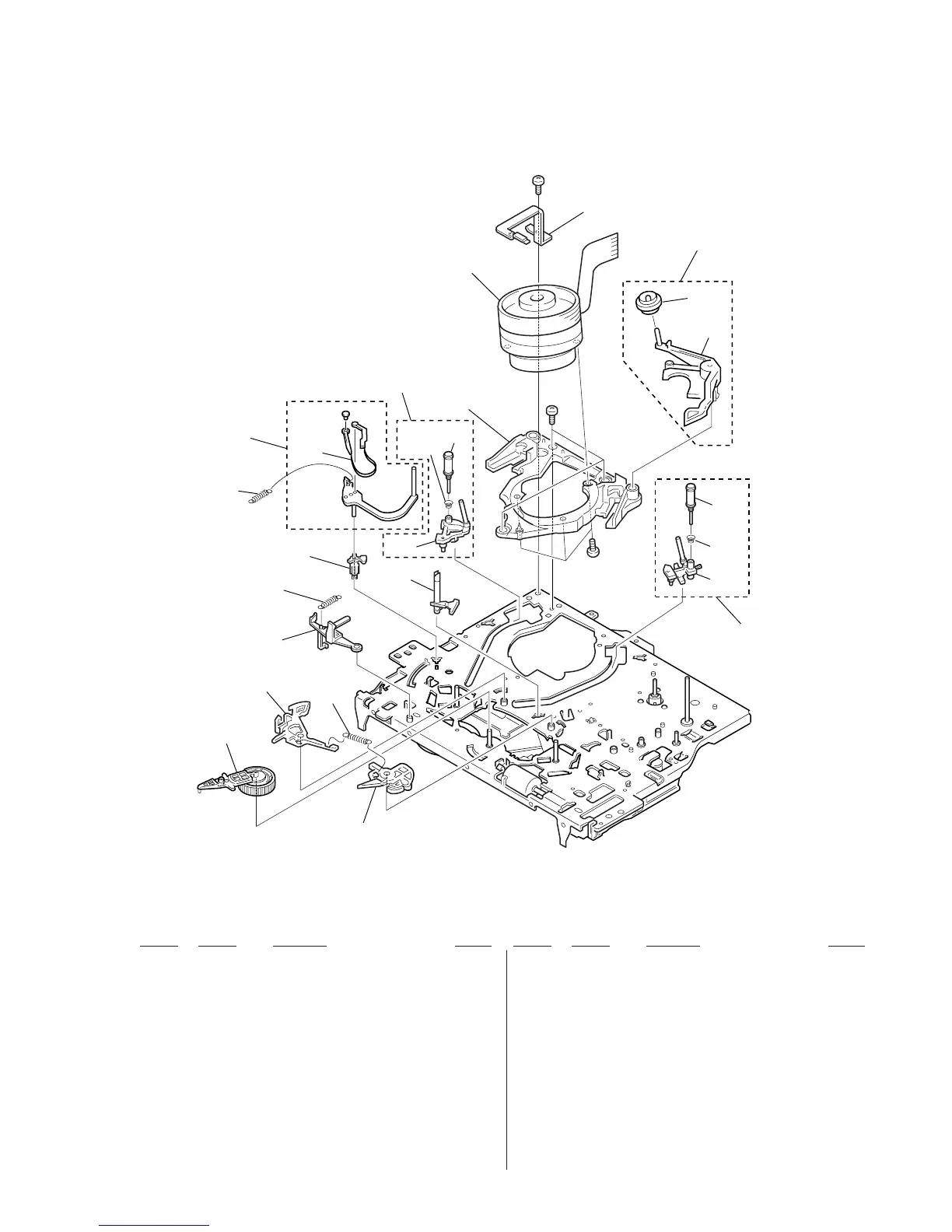

8-1-4. MECHANISM CHASSIS ASSEMBLY (2)
#3
#2
#3
767
768
762
763
775
765
772
771
773
764
761
760
758
759
757
756
766
774
755
754
752
751
753
763
762
764 3-969-632-04 BASE, DRUM
765 A-6750-325-A SHUTTLE (T) BLOCK ASSY
766 3-977-501-01 PLATE, LUMINOUS
767 X-3943-899-8 GROUND ASSY, SHAFT
768 1-759-371-11 DRUM ASSY (DZH-85A-R) (E580)
768 1-759-373-11 DRUM ASSY (DZH-86A-R)
(EXCEPT E580/E730B/E735B)
768 1-759-557-11 DRUM ASSY (DZH-98A-R) (E730B/E735B)
771 A-6746-074-G ROLLER BLOCK ASSY, HC
772 X-3947-255-1 ROLLER ASSY, HC
773 3-975-724-07 ARM, HC
774 X-3946-855-1 SHUTTLE (S) ASSY
775 X-3946-856-1 SHUTTLE (T) ASSY
751 X-3947-581-1 BRAKE ASSY, MAIN (T)
752 3-977-462-01 SPRING,EXTENTION. (MAIN BRAKE)
753 X-3947-573-1 ARM ASSY, PENDULUM
754 X-3947-580-2 BRAKE ASSY, MAIN (S)
755 3-977-513-02 LEVER, REC. PROOF
756 3-976-767-01 SPRING, TENS. (REC. PROOF)
757 3-977-487-01 BOSS, TG1 FULCRUM
758 X-3947-587-1 TG1 ASSY
759 X-3947-589-1 BAND ASSY, TG1
760 3-977-488-01 SPRING (POWER TENSION)
761 A-6750-324-A SHUTTLE (S) BLOCK ASSY
762 X-3944-378-1 ROLLER ASSY, GUIDE
763 3-965-178-01 SPRING
