Getting Started

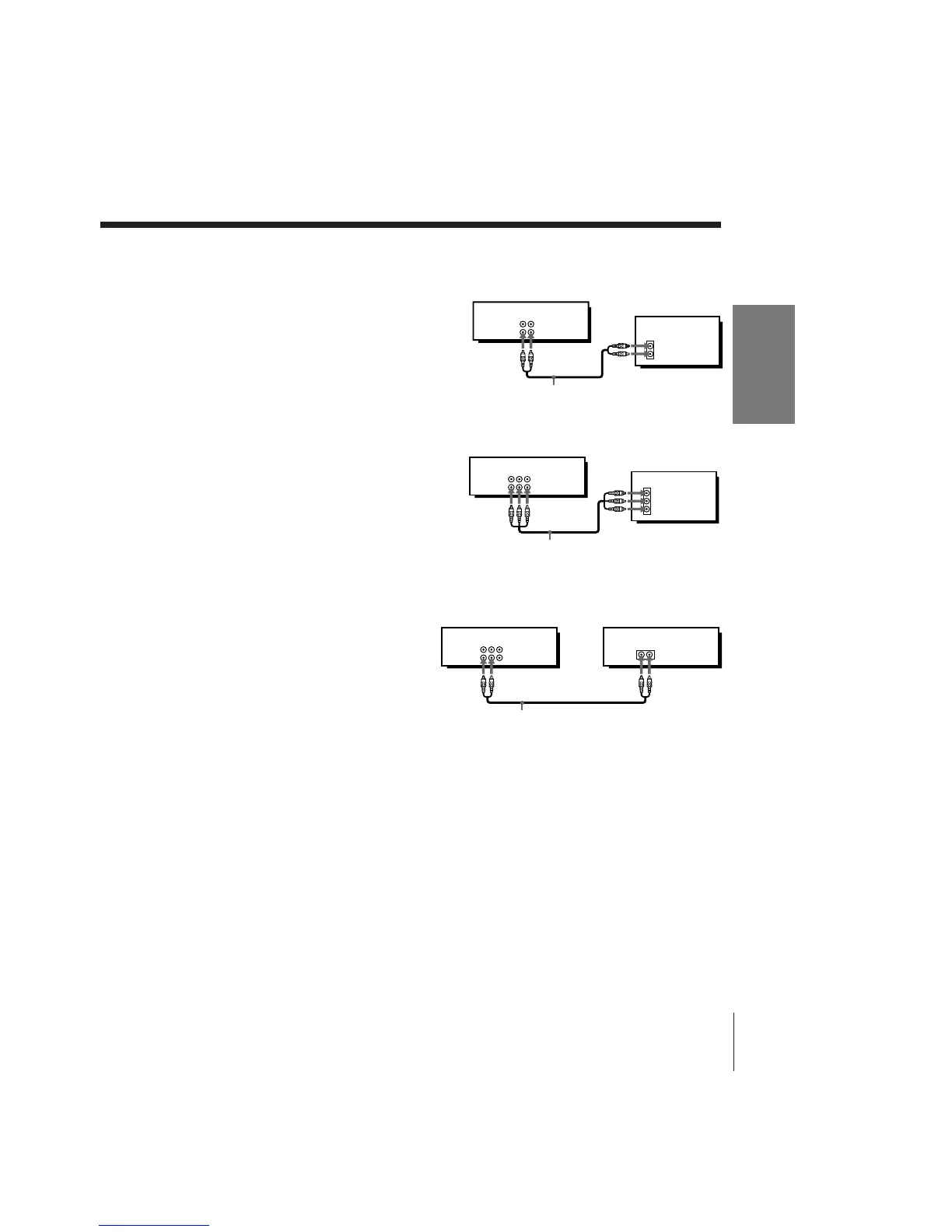

Additional connections
To a TV that has phono type
audio/video input jacks
This additional connection
improves picture and sound quality.
Connect the TV as shown on the
right.
To a stereo system (SLV-PH77EE
only)
You can improve sound quality by
connecting a stereo system as
shown on the right.
TV
This VCR
Audio/video cable (not supplied)
For SLV-P55EE
TV
This VCR
Audio/video cable
For SLV-PH77EE
IN
VIDEO
AUDIO
AUDIO VIDEO
LINE IN
LINE OUT
AUDIO VIDEO
LINE IN
LINE OUT
IN
VIDEO
AUDIO
AUDIO VIDEO
LINE IN
LINE OUT
AUX IN
Audio cable (not supplied)
This VCR Stereo system
