Sony SPP-A946 - Schematic Diagram - HAND MAIN Section

SPP-A946/A947
– 49 – – 50 –

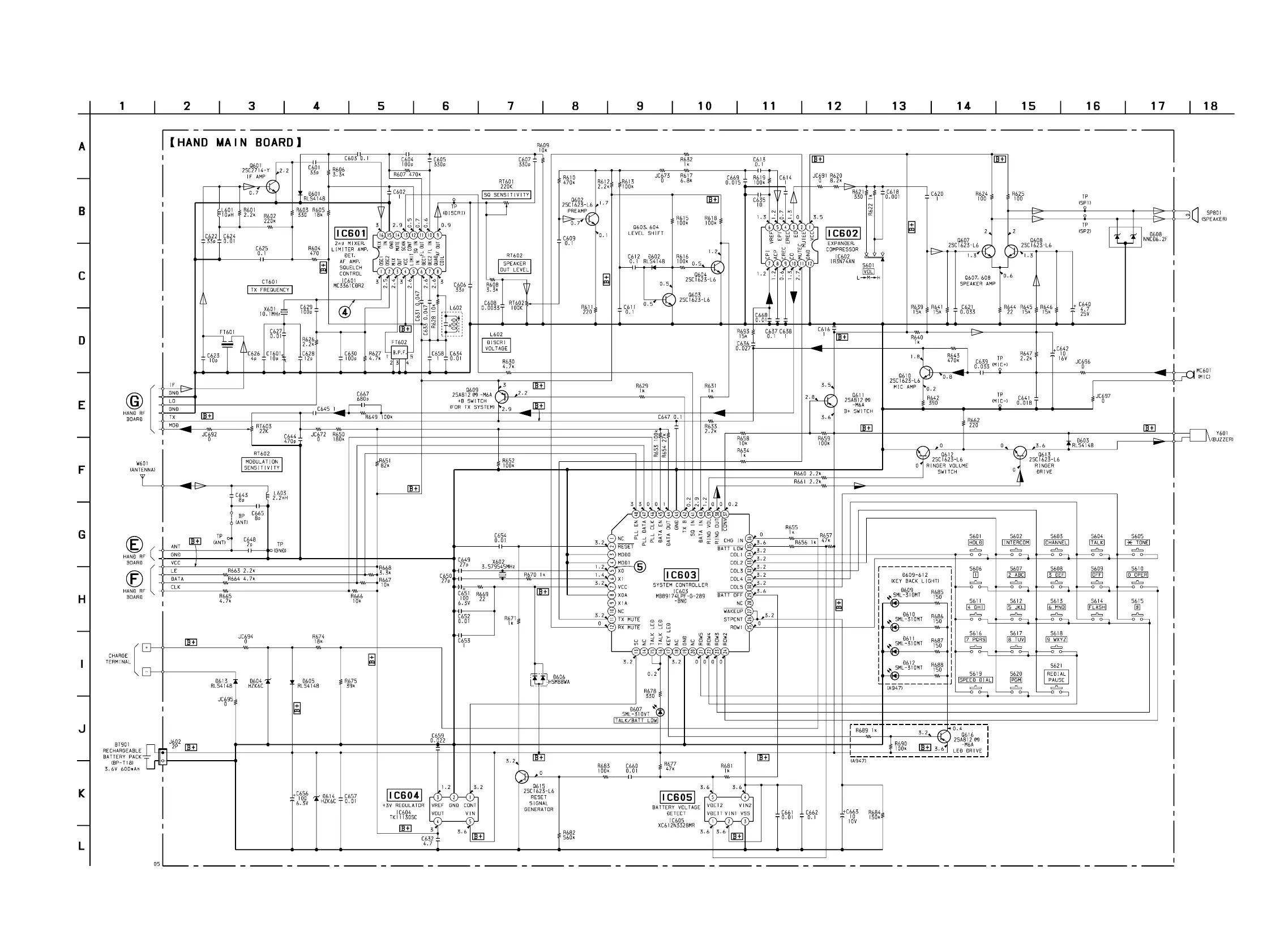

5-14. SCHEMATIC DIAGRAM – HAND MAIN Section – • See page 43 for Waveforms. • See page 51 for IC Block Diagrams.
(Page 46)
(Page 45)
(Page 46)
