– 58 –

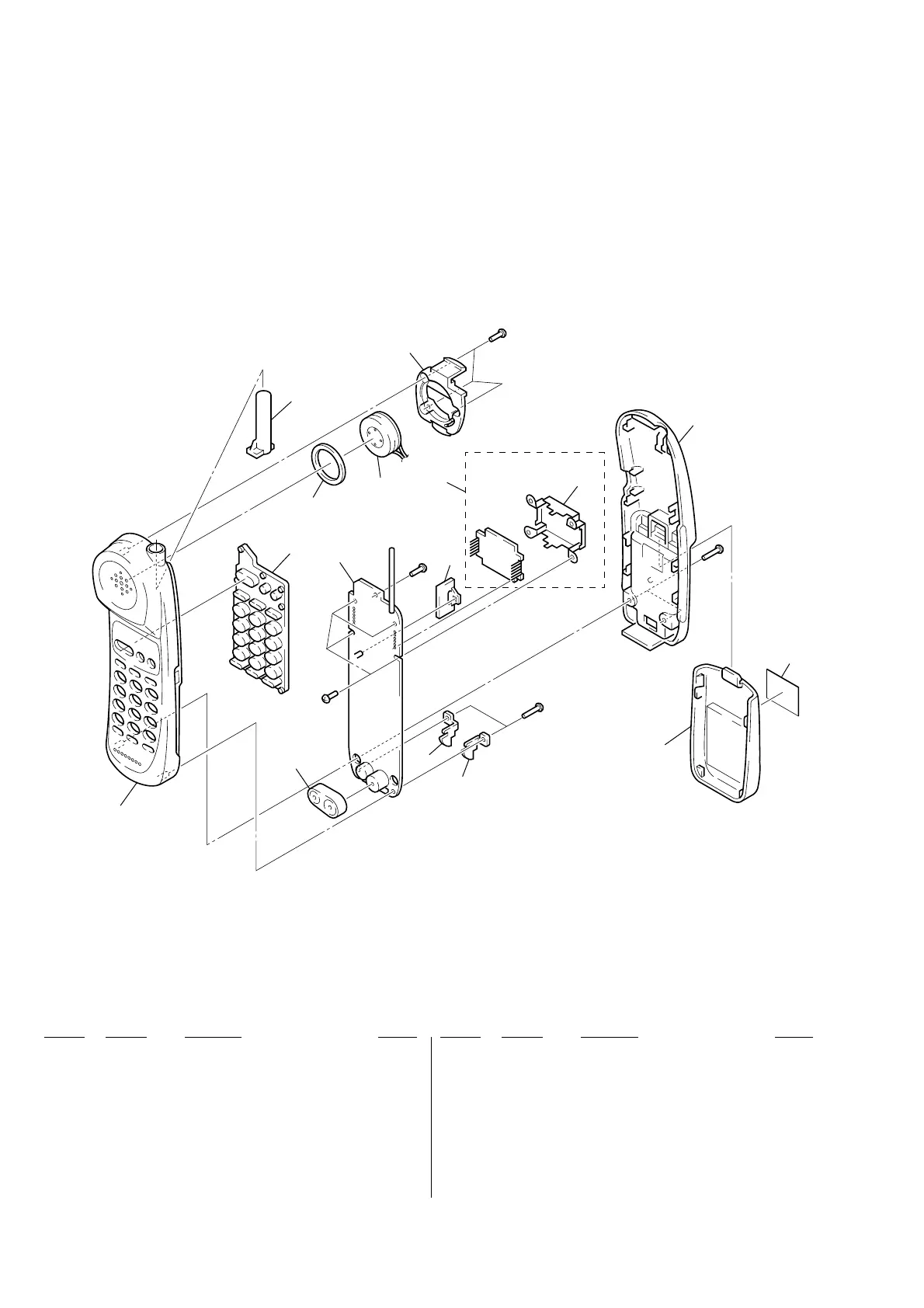

(1) HANDSET SECTION
SECTION 6
EXPLODED VIEWS
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of the
electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
1
#5
#3
#3
#4
#4
SP801
not
supplied
3
4
2
7
6
8
13
14
10
11
12
9
5
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 X-3378-531-1 CABINET (FRONT) ASSY
2 1-771-870-11 SWITCH, RUBBER KEY (HAND 12 KEY) (A946)
2 1-771-870-21 SWITCH, RUBBER KEY (HAND 12 KEY) (A947)
3 3-039-405-01 COVER, ANTENNA
4 3-043-639-01 CUSHION
* 5 3-042-448-01 HOLDER (SP)
6 A-3672-934-A HAND MAIN BOARD, COMPLETE
7 3-042-449-01 HOLDER (MICROPHONE)
8 3-042-447-01 KNOB (VR. HAND SET)
9 A-3672-932-A HAND RF BOARD, COMPLETE
10 3-042-451-01 TERMINAL (L), CHARGE
11 3-042-450-01 TERMINAL (R), CHARGE
12 X-3378-667-1 CABINET (REAR) ASSY
13 X-3378-532-1 LID ASSY, BATTERY CASE
14 3-043-181-01 STICKER (ATTENTION/CHARGE) (A946)
14 3-044-346-01 STICKER (ATTENTION/CHARGE) (A947)
SP801 1-529-541-11 SPEAKER (2.8cm)
