– 59 –

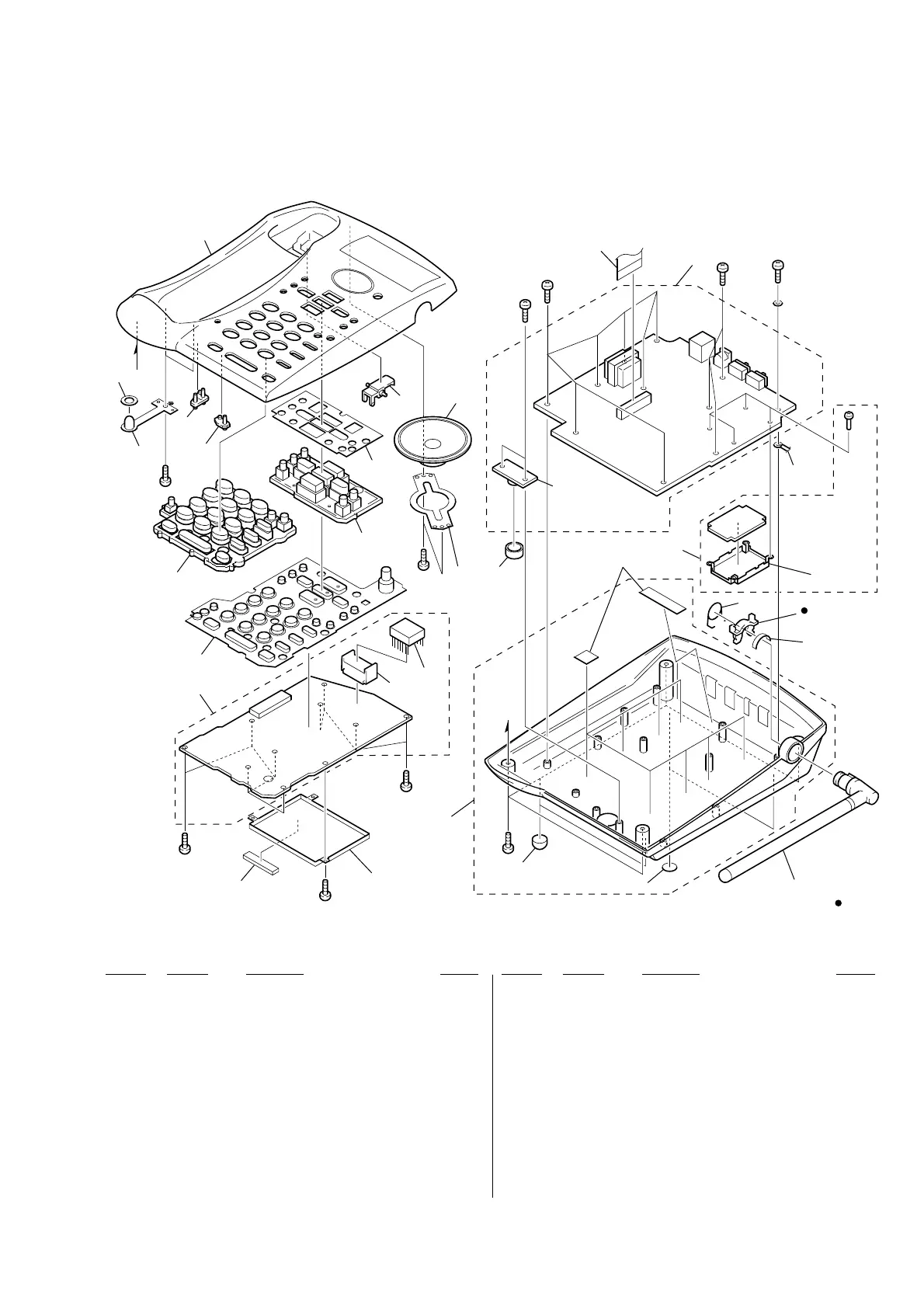

(2) BASE UNIT SECTION
51
not supplied
#3
#3
#3
#4
D217
SP701
#2
52
53
54
60
59
55
66
57
58
61
56
62
70
not
supplied
not
supplied
#3
#3
#3
#3
#1
#3
#5
not
supplied
(BASE MIC board,
complete)
not
supplied
not
supplied
AT701
(Including A)
67
68
69
64
65
51
71
63
A
A
A
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
51 3-043-638-01 CUSHION
* 52 A-3672-931-A BASE KEY BOARD, COMPLETE
53 1-771-869-11 SWITCH, RUBBER KEY (BASE 12 KEY)
54 X-3378-522-1 BUTTON (BASE FUNCTION) ASSY
55 X-3378-521-1 BUTTON (TAD FUNCTION) ASSY
56 3-043-591-01 WOVEN, FABRIC NON
57 3-042-445-01 TERMINAL (BASE SET), CHARGE
58 3-043-697-01 SPACER
59 3-042-440-01 LENS (CHG), LED
60 3-042-441-01 LENS (SPP), LED
61 X-3378-519-1 CABINET (UPPER) ASSY (A946)
61 X-3378-520-1 CABINET (UPPER) ASSY (A947)
62 3-036-336-01 HOOK
* 63 A-3672-930-A BASE MAIN BOARD, COMPLETE
(Including BASE MIC board complete)
64 A-3672-929-A BASE RF BOARD, COMPLETE
65 3-039-399-01 SPRING, TORSION
66 3-043-646-01 HOLDER (MICROPHONE)
67 X-3378-523-1 CABINET (LOWER) ASSY
68 3-043-589-01 FOOT, RUBBER
69 3-043-645-01 FOOT
70 3-043-643-01 HOLDER (LED)
71 1-574-161-11 WIRE, FLAT TYPE (22 CORE)
AT701 1-754-093-11 ANTENNA
SP701 1-505-802-11 SPEAKER (5.7cm)
