Sony SRF-H11 - Page 10

10
SRF-H11

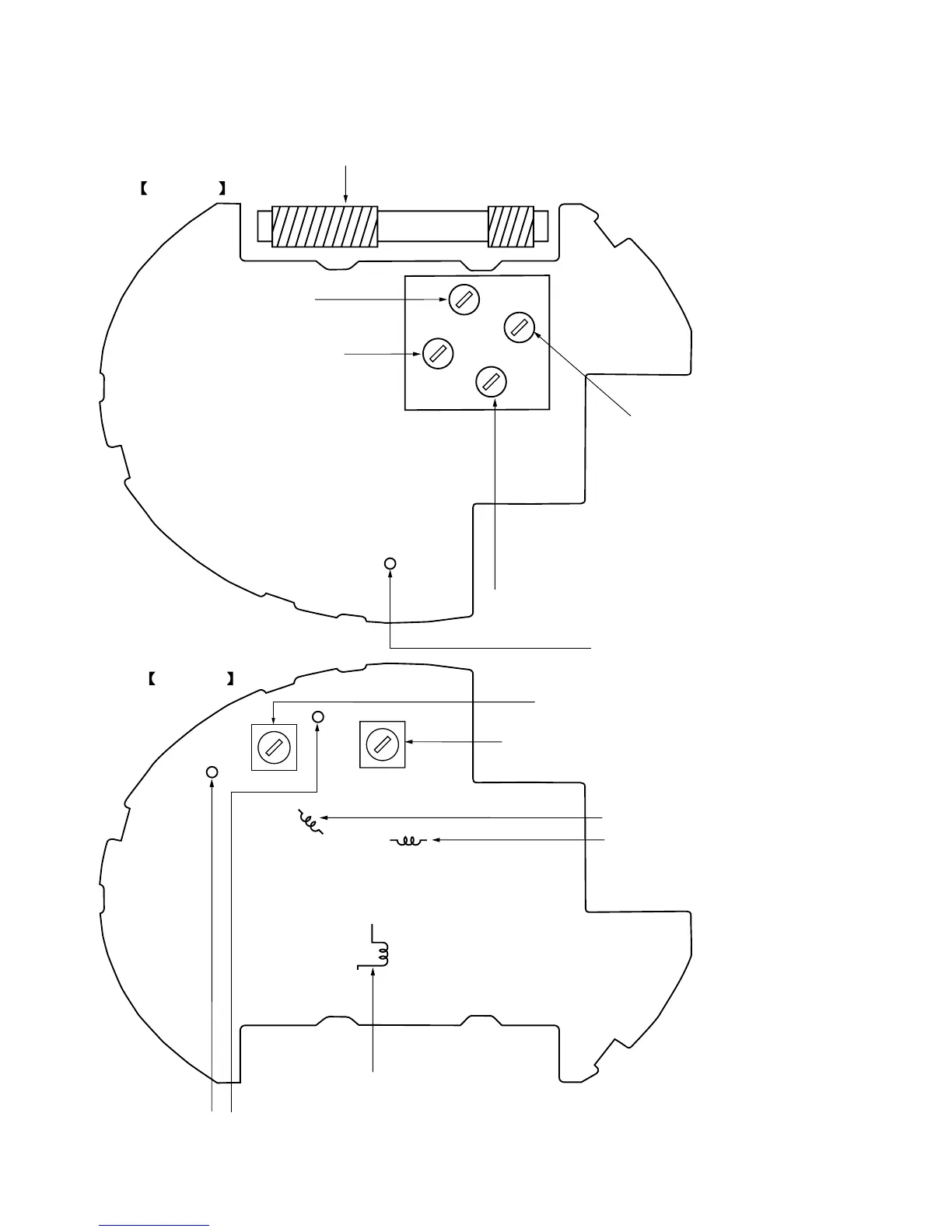

Adjustment Location :
(SIDE A)
MAIN BOARD
(SIDE B)
MAIN BOARD
CT1-1 : FM Frequency
Coverage Adjustment
CT1-3 : AM Frequency
Coverage Adjustment
FM wire antenna input
CT1-4 : AM Tracking Adjustmen
t
CT1-2 : FM Tracking Adjustment
L7 : AM Tracking Adjustment
L8 : FM Frequency Coverage Adjustment
Speaker output
L5 : AM Frequency Coverage Adjustment
L4 : FM 2nd OSC Adjustment
L6 : FM VCO Adjustment
L3 : FM Tracking Adjustment
+
–
