Sony SRF-H11 - 1 Servicing Note

3
SRF-H11
SECTION 1
SERVICING NOTE
TSE392-W TSE392-W
Poly-slider washer
Lever
Knob (band)
Knob
(tune)
Knob (power)
Knob
(volume)
TSE392-W TSE392-W
Cabinet (rear) R Cabinet (rear) L
Cabinet (rear) R
Cabinet (rear) R
Cabinet (rear) L
Cabinet (rear) L
Lever

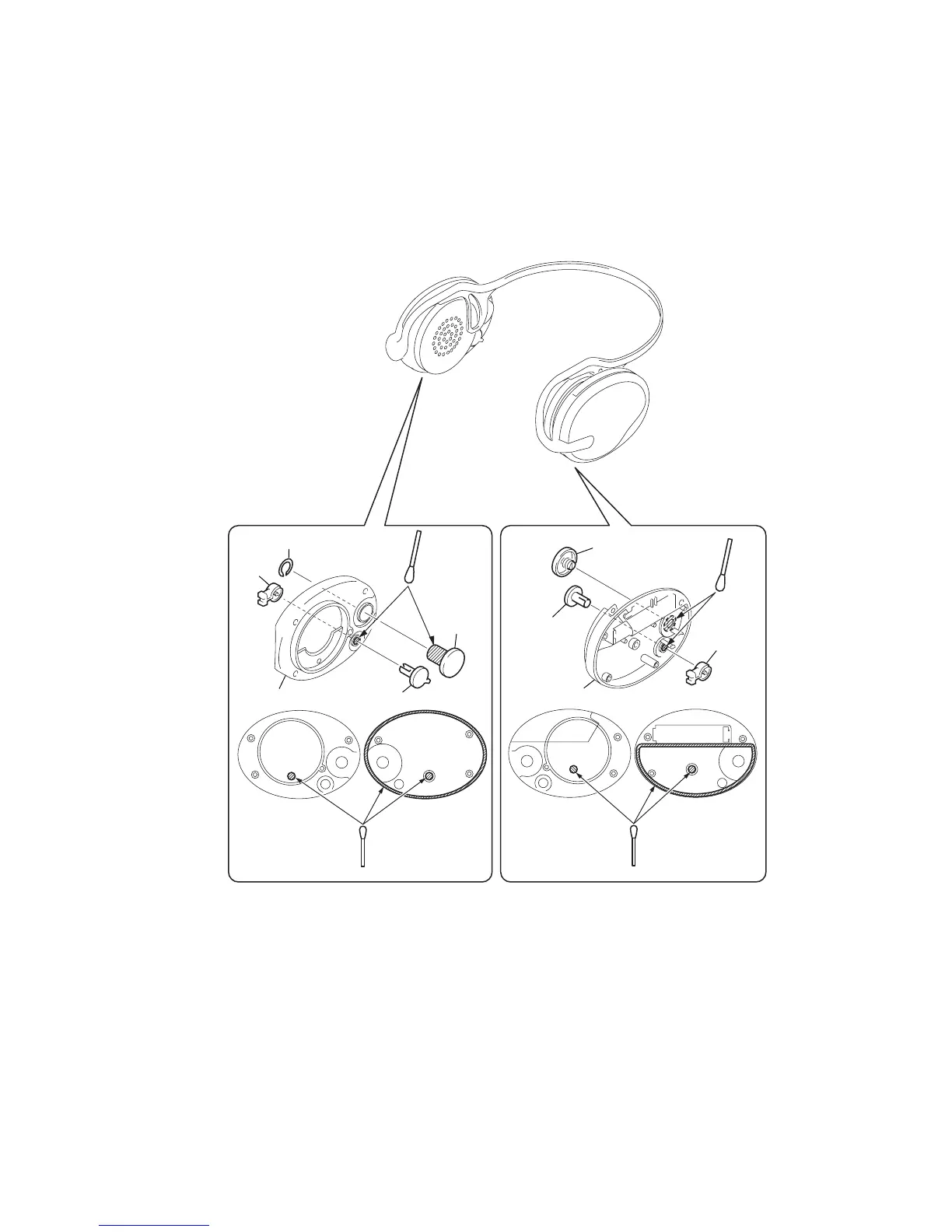

DRIP-PROOF TREATMENT
Be sure to execute the following, when the cabinet is removed
during service.
Apply the SONY coating sealant TSE392-W (7-432-950-03) to
the hatched portion shown in figure using an applicator, etc.
