SRF-H11
SECTION 3
DISASSEMBLY
Note : Follow the disassembly procedure in the numerical order given.

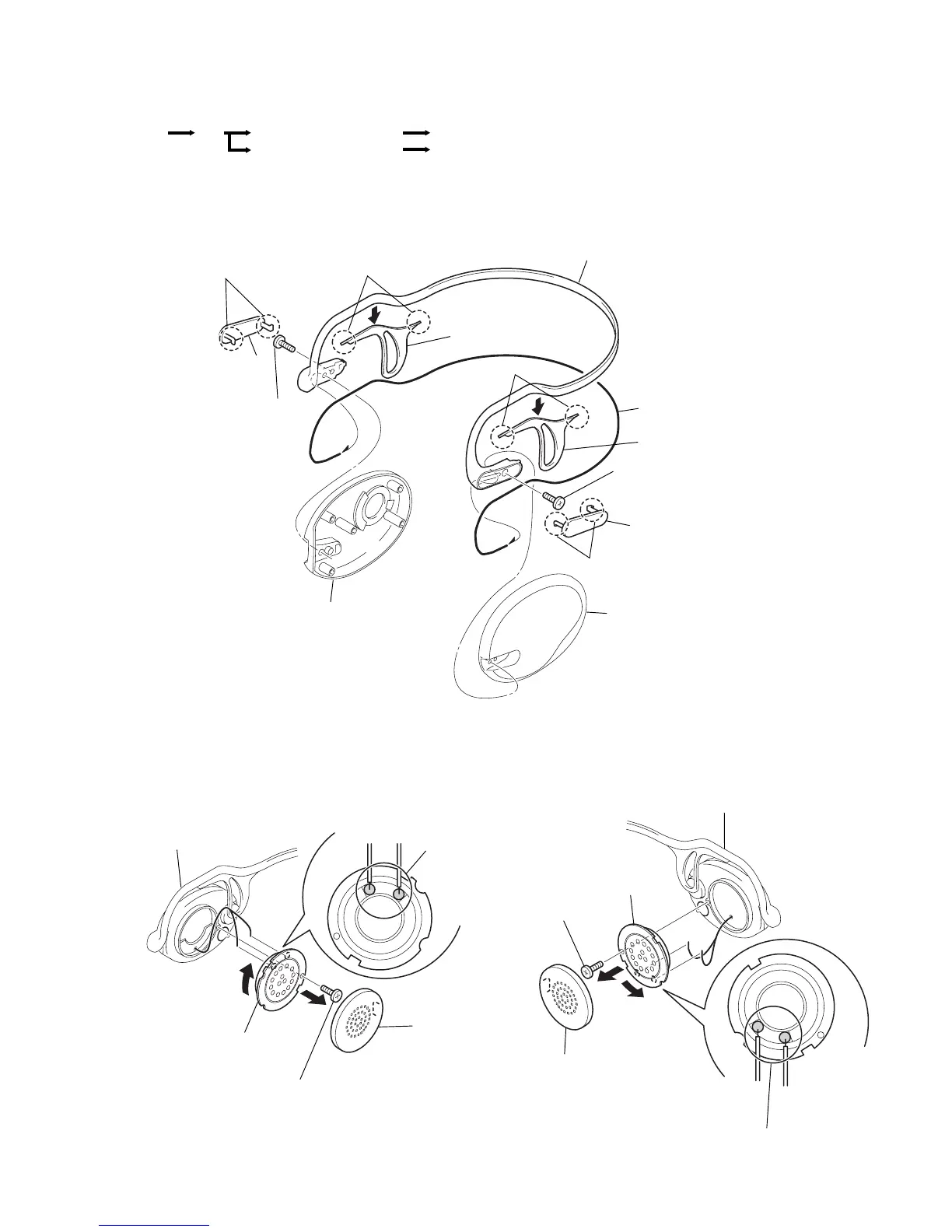

3-1. BELT REMOVAL
3-2. DRIVER (HEADPHONE) (R) REMOVAL
r
The equipment can be removed using the following procedure.
Belt
Set
DRIVER (Headphone) (R) Main board
DRIVER (Headphone) (L)
Audio board
Belt
1 Claws
1 Claws
3 Claws
4 Tapping screw (B1.7x8
)
4 Tapping screw
(B1.7x8)
Cap (L)
Hook (L)
Cap (R)
3 Claws
Hook (R)
Lead wire
2
2
Main (L) assyMain (R) assy
Driver
(headphone)
Main (R) assy
5 Remve solde
r
2 screw
(+BVTP1.7x 6)
1 Ear pad (R)
3
4
3-3. DRIVER (HEADPHONE) (L) REMOVAL
Driver
(headphone)
Main (L) assy
5 Remve solder
2 screw
(+BVTP1.7 x 6)
1 Ear pad (L)
3
4
