Sony SRF-M55 - Section 2 Disassembly; 2-1. Cabinet Assy, Front and Rear; 2-2. Main Board

– 3 –
SECTION 2
DISASSEMBLY
Note : Follow the disassembly procedure in the numerical order given.

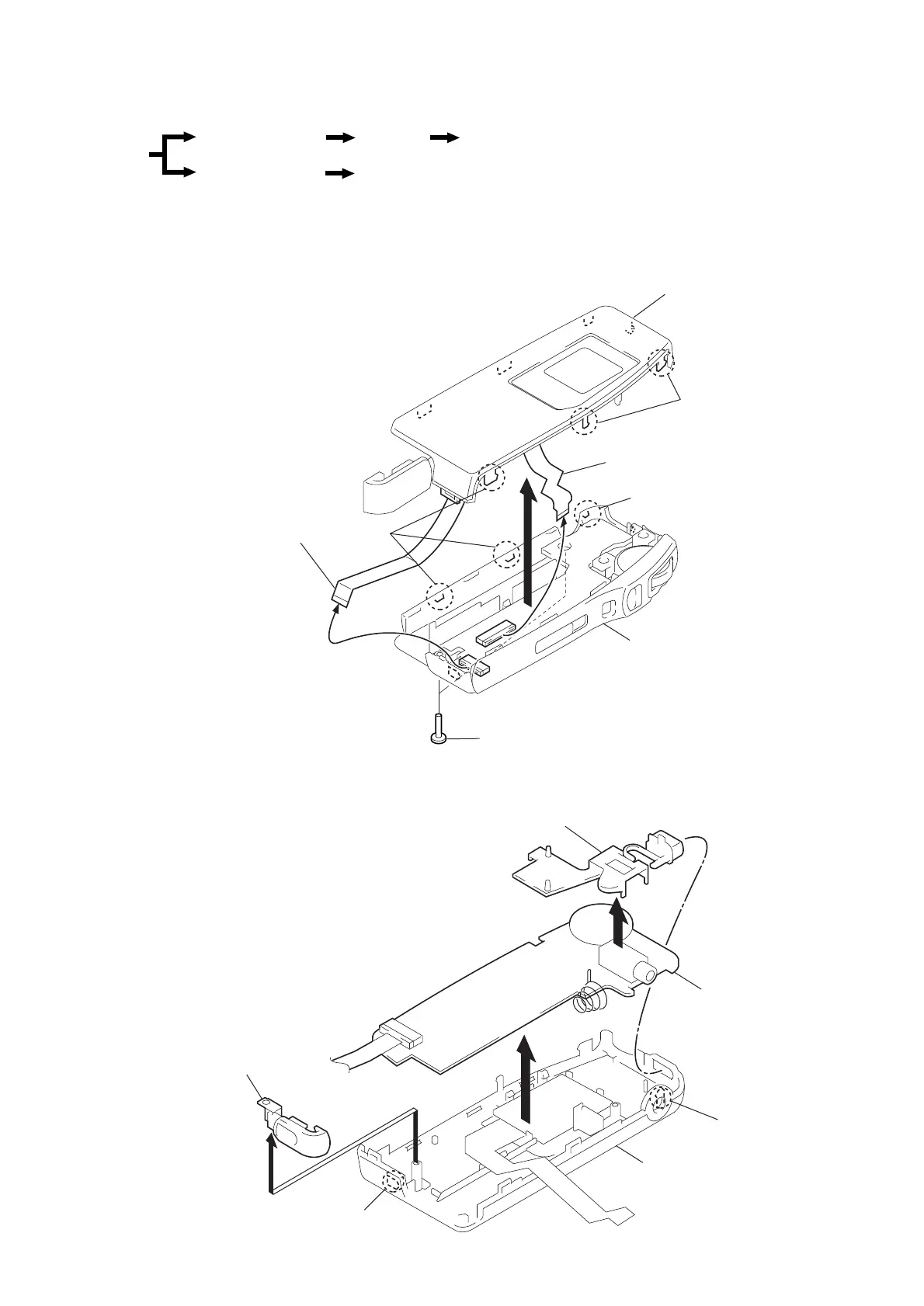

2-1. “CABINET ASSY, FRONT”, “CABINET ASSY, REAR”
2-2. MAIN BOARD
r
The equipment can be removed using the following procedure.
Cabinet ASSY, Front
Cabinet ASSY, Rear
Set
Main board
Microcomputer board
LCD201
1 Screws (B1.7x8)
2 Claws
2 Claws
3
4
Flexible board
(10 core)
5 LCD flexible board (13 core)
Cabinet ASSY, rear
Cabinet ASSY, front
2 Claw
3 Claw
4
1
2
Main board
Cabinet ASSY, front
Button (power)
Lid, battery case
3 Claw
