System Configuration
This unit has various system configuration capabilities using optional products. This section describes typical system
examples with the required components and the main usage of each system.
Operating a Camera Using the Supplied Infrared Remote Commander
What you can do with this system
To operate the camera readily from a short distance.

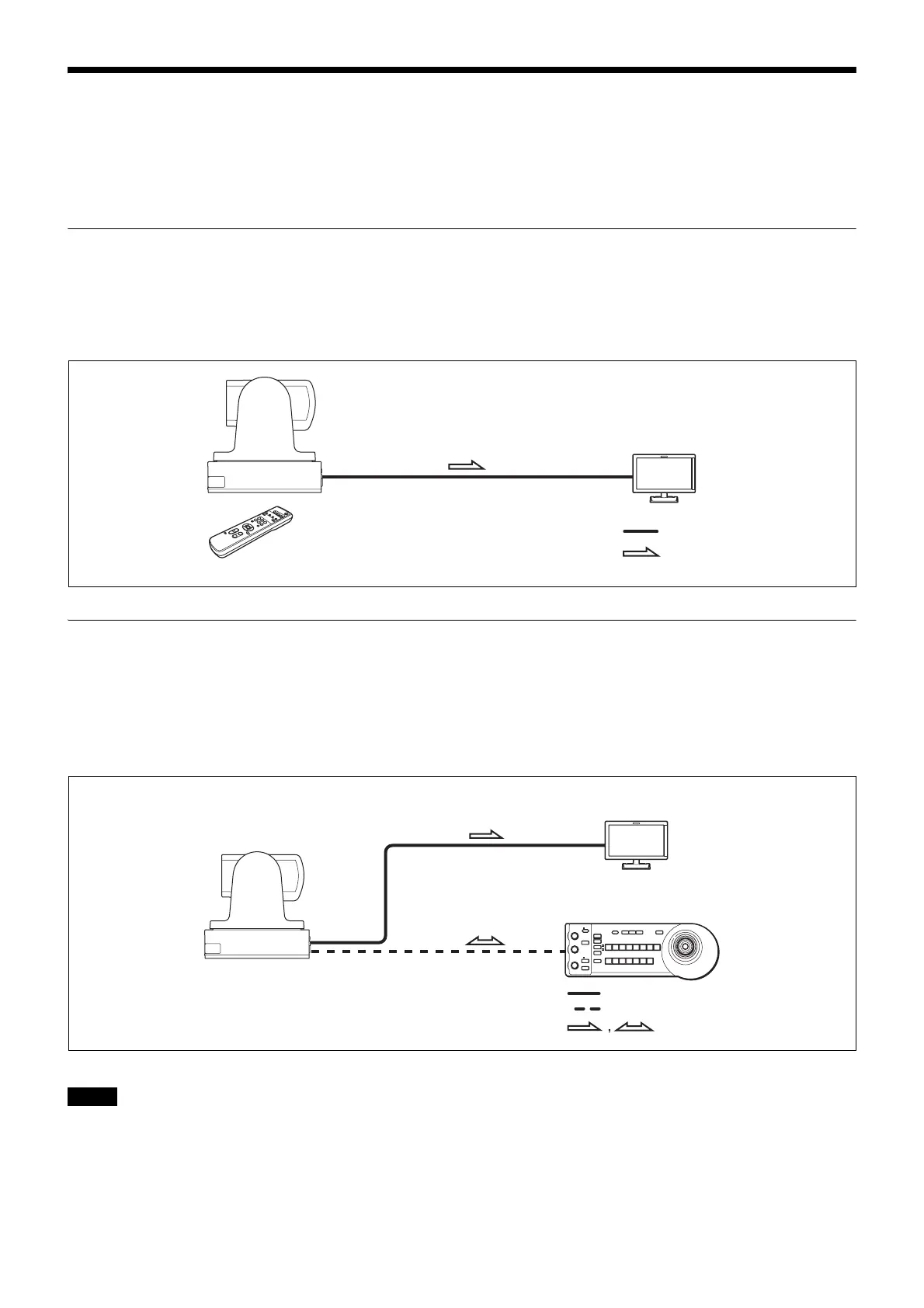

System configuration
Operating a Camera Using the IP Remote Controller
What you can do with this system
To perform pan/tilt and zoom operations using the joystick of the IP remote controller, and to perform the Preset operation
using the button.
System configuration
Select the MODE selector of IP remote controller to position 0 (automatically selected) when using a combination of this
unit and IP remote controller. For details, refer to the Operating Instructions of IP remote controller.
Note
Video signal
Infrared Remote
Commander (supplied)
HD video monitor
Signal flow
IP Remote Controller (not supplied)
Video signal
Remote Control (VISCA) signal
Signal flow
HD video monitor
