SS-CPX22/NXM3
Ref. No. Part No. Description Remarks
Ref. No. Part No. Description Remarks

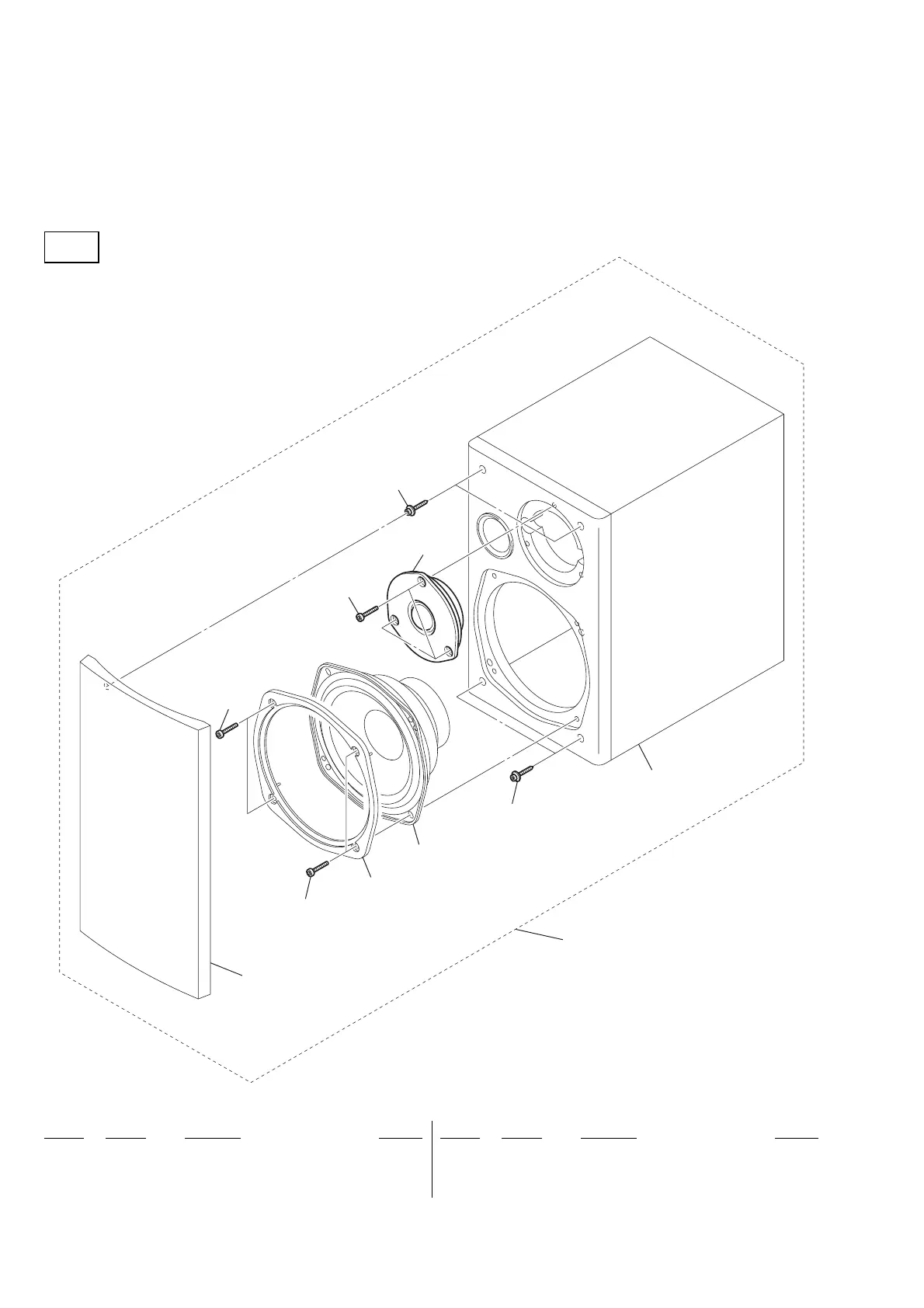

EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some difference from the original one.
• Items marked “ * ”are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number in
the exploded views are not supplied.
not supplied
not supplied
not supplied
not supplied
1
3
3
2
3
2
4
R-CH
1 A-4713-853-A SYSTEM (R) ASSY
1 A-4713-854-A SYSTEM (L) ASSY
2 4-249-981-01 PIN, CATCHER
3 4-235-903-02 SCREW (3.5X20)
4 X-4956-273-1 TWEETER ASSY
