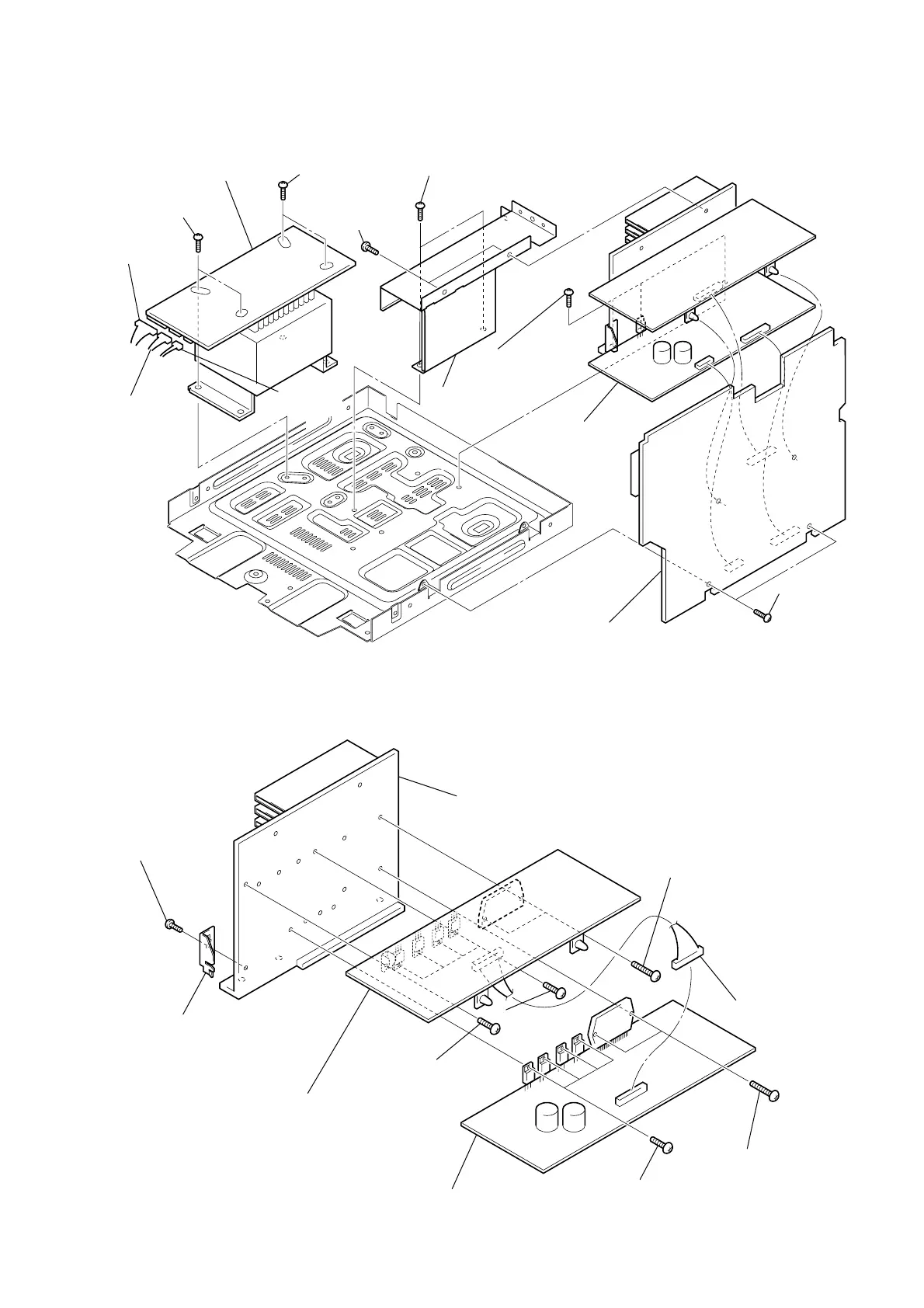

2-8. TRANS BOARD, MAIN BOARD
2-9. FRONT AMP BOARD, SURROUND AMP BOARD
0 t wo screws
(+BVTP 3 × 8)
1 connector
(CN914)
2 connector
(CN915)
3 connector
(CN913)
qs t wo screws
(+BVTP 3 × 8)
qd MAIN board
4 two screws
(+BVTT 4 × 8)
6 TRANS board
5 two screws
(+BVTT 4 × 8)
7 two screws
(+BVTT 3 × 8)
8 two screws
(+BVTP 3 × 8)
9 cover (heat sink)
qa SURROUND and
FRONT AMP
board ASSY
1 screw
(+BVTT 3 × 8)
2 bracket
3 connector (CN803
)
6 FRONT AMP board
0 SURROUND AMP board
4 four screws
(+BVTT 3 × 8)
8 four screws
(+BVTT 3 × 8)
7 screw
(+BVTT 3 × 8)
5 t wo screws
(+BVTP 3 × 16)
9 t wo screws
(+BVTP 3 × 16)
heat sink assy
