12
HCD-DP1000D

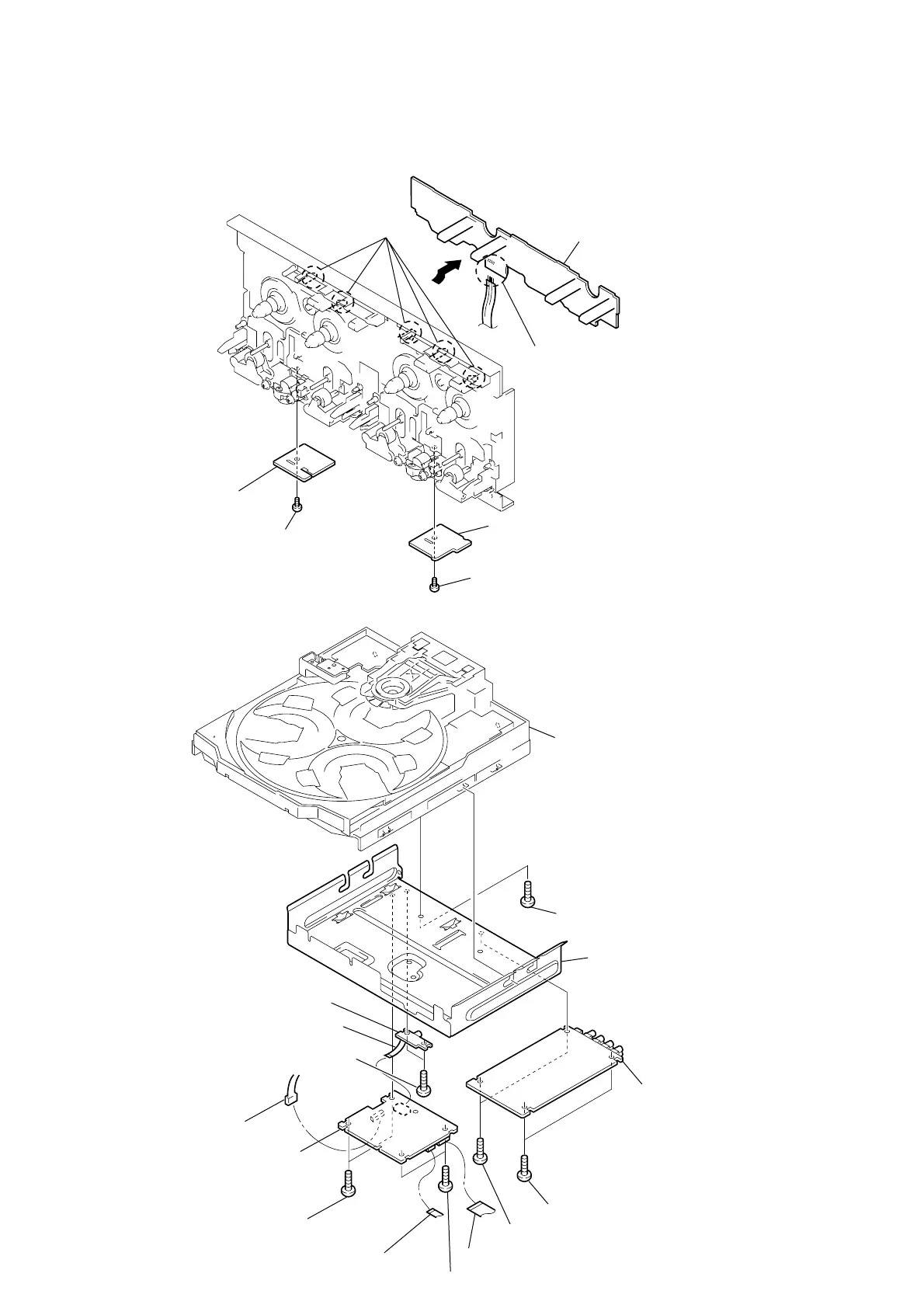

2-11. BASE UNIT, DSP BOARD, MB BOARD, VIDEO BOARD
2-10. LEAF SW BOARD, HEAD (A) BOARD, HEAD (B) BOARD (TCM-230AWR41/MWR41)
4
screw (+PTT 2
×
4),
ground point
4
screw (+PTT 2
×
4),
ground point
2
LEAF SW board
1
five claws
5
HEAD (A) board
6
HEAD (B) board
3
remove the four solderings.
Note: This illustration is for TCM-230MWR, but in case of TCM-230AWR, you can remove them in the same way.
qd
screw (+BVTP 3X8)
qf
bracket (DVD)
3
DSP board
1
two screws (+BVTP 3X8)
4
flat type wire (CN010)
5
flat type wire (CN009)
8
two screws (+BVTP 3X8)
2
two screws (+BVTP 3X8)
qa
two screws (+BVTP 3X8)
9
two screws (+BVTP 3X8)
DVD mechanism deck (CDM58D)
6
fiat type wire (CN011)
qs
VIDEO board
7
connector (CN202)
0
MB board
To Next Page
