SS-GT4DB
2
SECTION 1
DISASSEMBLY
• This set can be disassembled in the order shown below.
1-1. DISASSEMBLY FLOW
Note: Follow the disassembly procedure in the numerical order given.
1-2. FRONT PANEL SECTION-1
• Continued on 1-3 (page 3).
Note: L-ch and R-ch can be similarly disassembled.
The illustration of L-ch is used for explanation.
SET
1-2. FRONT PANEL SECTION-1
(Page 2)
1-3. FRONT PANEL SECTION-2
(Page 3)
1-4. LOUDSPEAKER (4cm) (SP3)
(Page 4)
1-5. LOUDSPEAKER (8cm) (SP1, SP2)
(Page 4)
JIG
When disassembling the unit, use the following
jig for speaker removal.
Part No. Description
J-2501-238-A JIG FOR SPEAKER REMOVAL
– Rear top view –
– Rear bottom view –

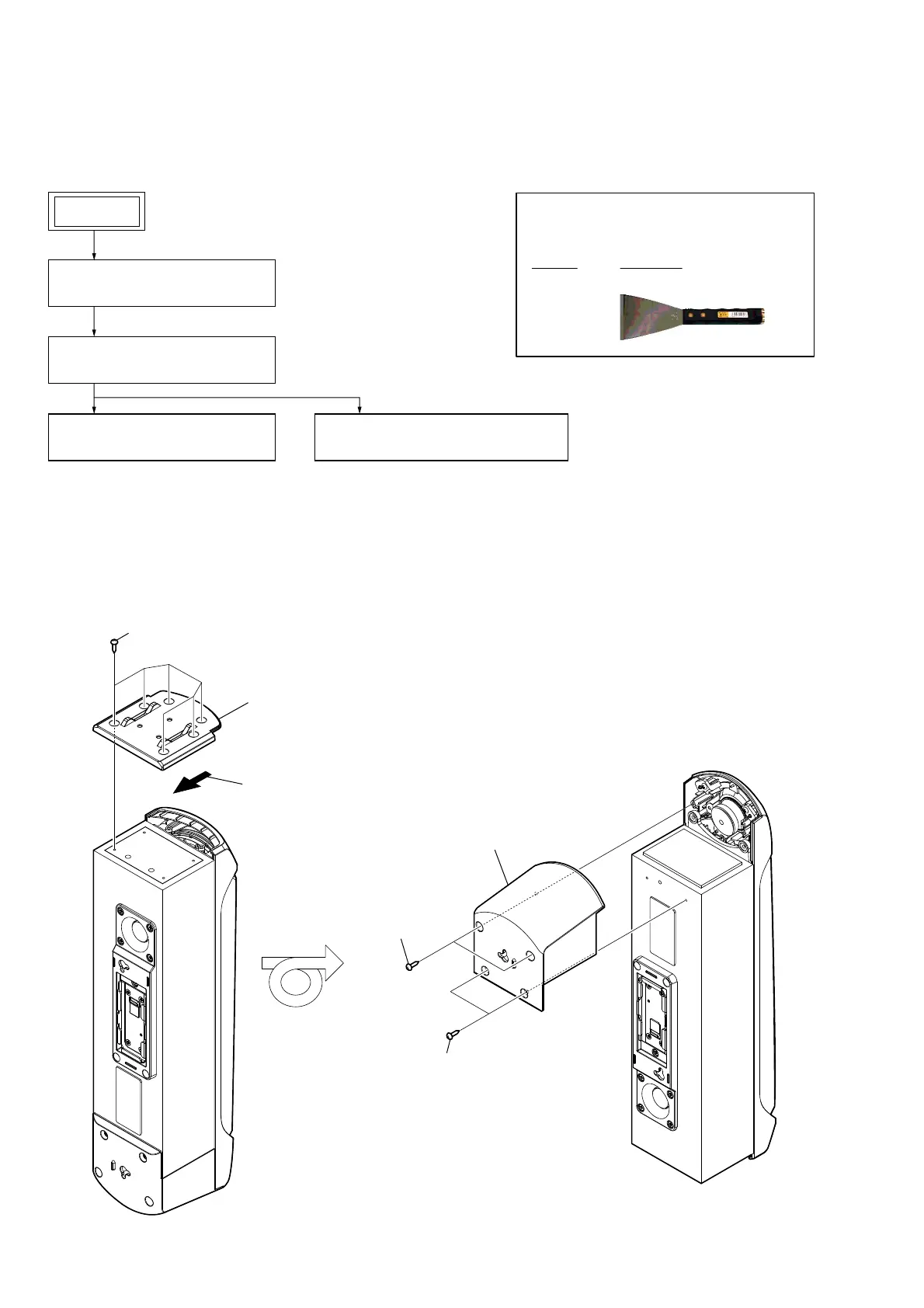

4 two screws
((1) (3.5 u 14), TAPPING)
1 six screws
((1) (3.5 u 14), TAPPING)
4 two screws
((1) (3.5 u 14),
TAPPING)
5 top panel (L) section
3 bottom panel (L) section
2 Remove the bottom panel (L) section
in the direction of the arrow.
To Next Page
