SS-GT4DB
4

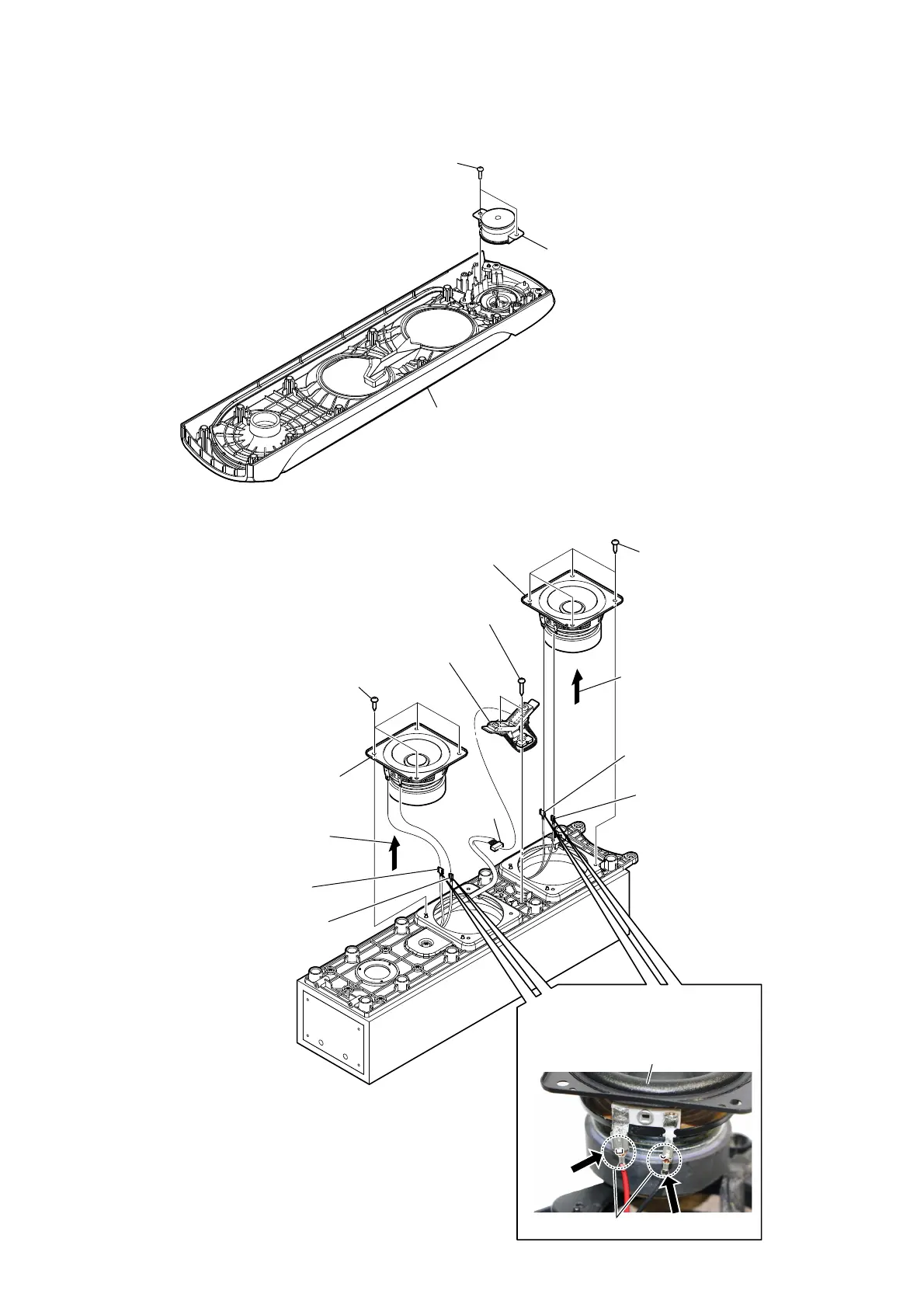

1-4. LOUDSPEAKER (4cm) (SP3)
1-5. LOUDSPEAKER (8cm) (SP1, SP2)
3 front panel section
– Rear bottom view –
1 two screws
(+BVTP 3 u 10)
2 loudspeaker (4cm)
(SP3)
4 four screws
(3.5 u 12)
4 four screws
(3.5 u 12)
1 two screws
(+BV TAPPING TYPE-1 3.5)
2 CN1600
(7P)
5 Remove the loudspeaker (8cm) (SP2)
section in the direction of the arrow.
5 Remove the loudspeaker
(8cm) (SP1) section in
the direction of the arrow.
8 loudspeaker (8cm) (SP1)
3 LED bracket section
8 loudspeaker (8cm) (SP2)
7 terminal
(narrow side)
7 terminal
(narrow side)
7 terminal
(wide side)
7 terminal
(wide side)
:LUHVHWWLQJ
Push
protrusion
loudspeaker (8cm)
Push
–7RSYLHZ–
6 Push the protrusion, and remove
the terminal.
