ST-SE520

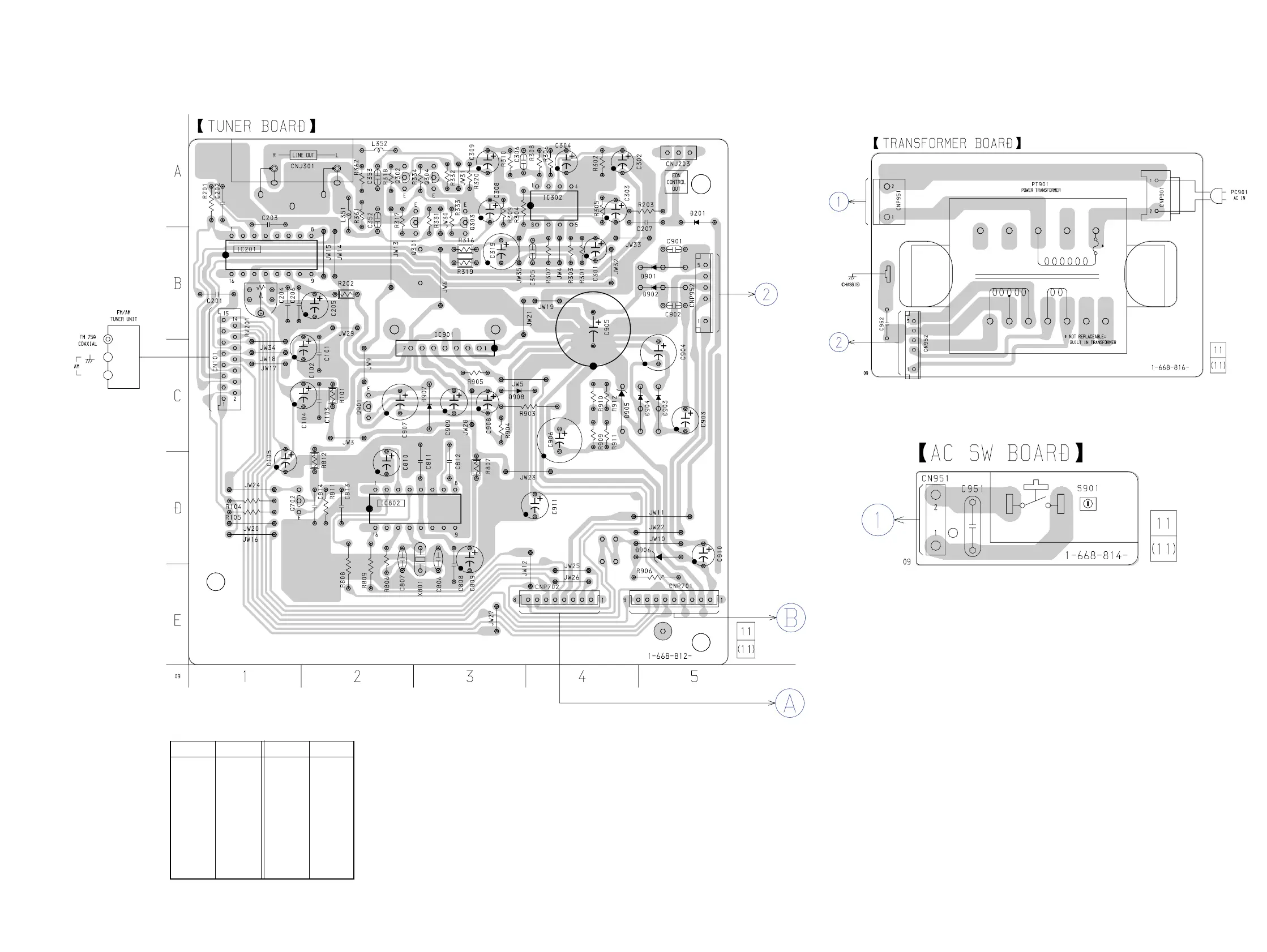

4-3. PRINTED WIRING BOARD –TUNER SECTION –
• See page 5 for Circuit Boards Location.
Ref. No. Location
• Semiconductor Location
D201 A-5
D901 B-5
D902 B-5
D903 C-5
D904 C-5
D905 C-4
D906 D-5
D907 C-3
D908 C-3
IC201 B-1
IC302 A-4
IC802 D-3
IC901 C-3
Q301 A-3
Q302 A-2
Q303 A-3
Q304 A-3
Q702 D-1
Q901 C-2
Ref. No. Location
(Page 9)
(Page 9)
