Sony STR-AV570X - Connections; System Connections Overview; Antenna and Speaker Connections

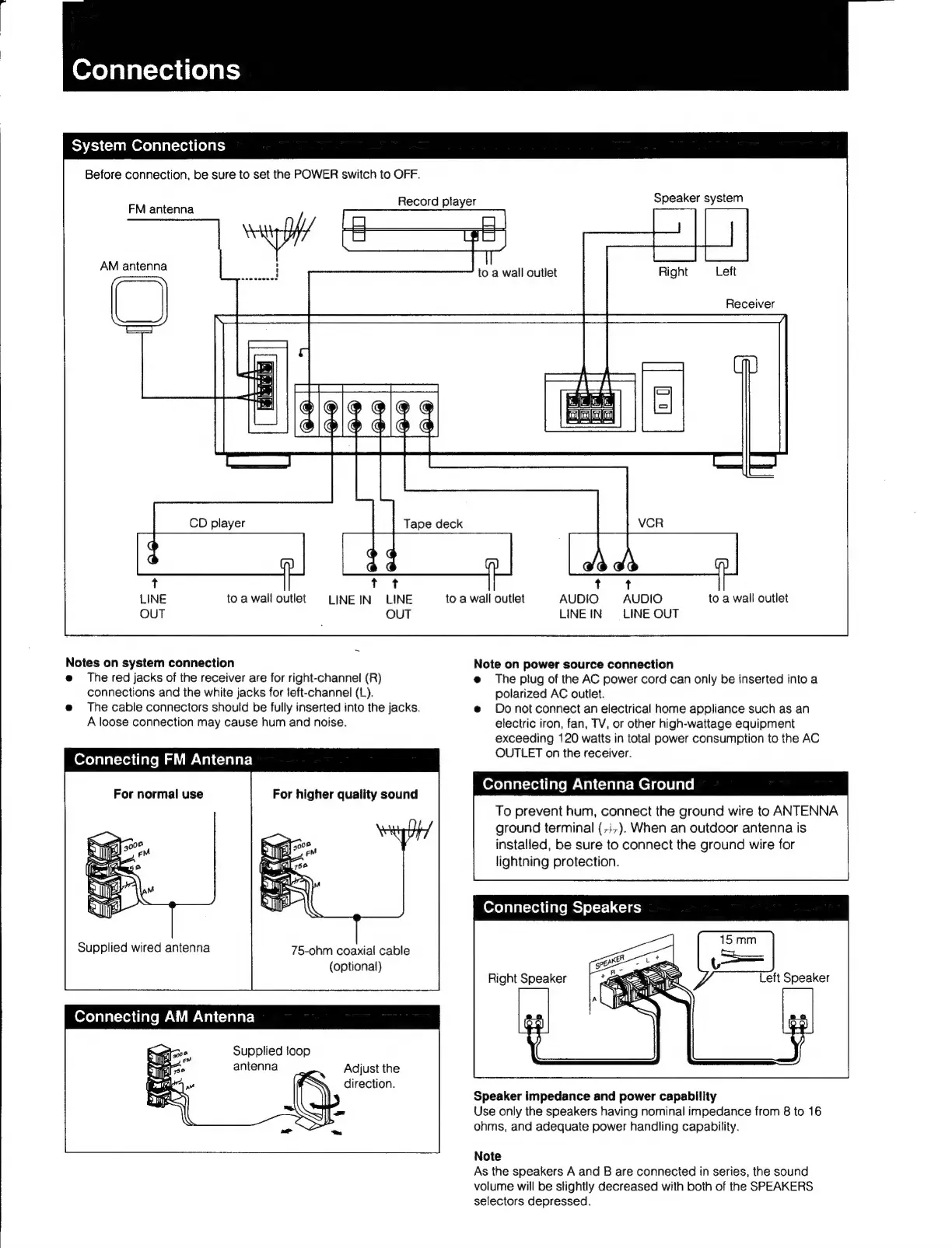

Connections
System Connections
FM antenna
AM antenna
Before connection, be sure to set the POWER switch to OFF.
Record player
Speaker system
Right Left
Receiver
fi Tape deck 7 VCR
@ «G
ay
42
al
Ge
GC
—)
t ¢
to a wall outlet LINE IN LINE
OUT
Notes on system connection
e@ The red jacks of the receiver are for right-channel (R)
connections and the white jacks for left-channel (L).
e@ The cable connectors should be fully inserted into the jacks.
A loose connection may cause hum and noise.
Connecting FM Antenna
For normal use For higher quality sound
Supplied wired antenna 75-ohm coaxial cable
(optional)
Connecting AM Antenna
Supplied loop
antenna Adjust the
to a wall outlet AUDIO AUDIO
t t
to a wall outlet
LINE IN = LINE OUT
Note on power source connection
e@ The plug of the AC power cord can only be inserted into a
polarized AC outlet.
e Donot connect an electrical home appliance such as an
electric iron, fan, TV, or other high-wattage equipment
exceeding 120 watts in total power consumption to the AC
OUTLET on the receiver.
Orel alat-re (are MeN (Ula Melee t late |
To prevent hum, connect the ground wire to ANTENNA
ground terminal (-!,). When an outdoor antenna is
installed, be sure to connect the ground wire for
lightning protection.
Connecting Speakers
Left Speaker
Speaker impedance and power capability
Use only the speakers having nominal impedance from 8 to 16
ohms, and adequate power handling capability.
Note
As the speakers A and B are connected in series, the sound
volume will be slightly decreased with both of the SPEAKERS
selectors depressed.
