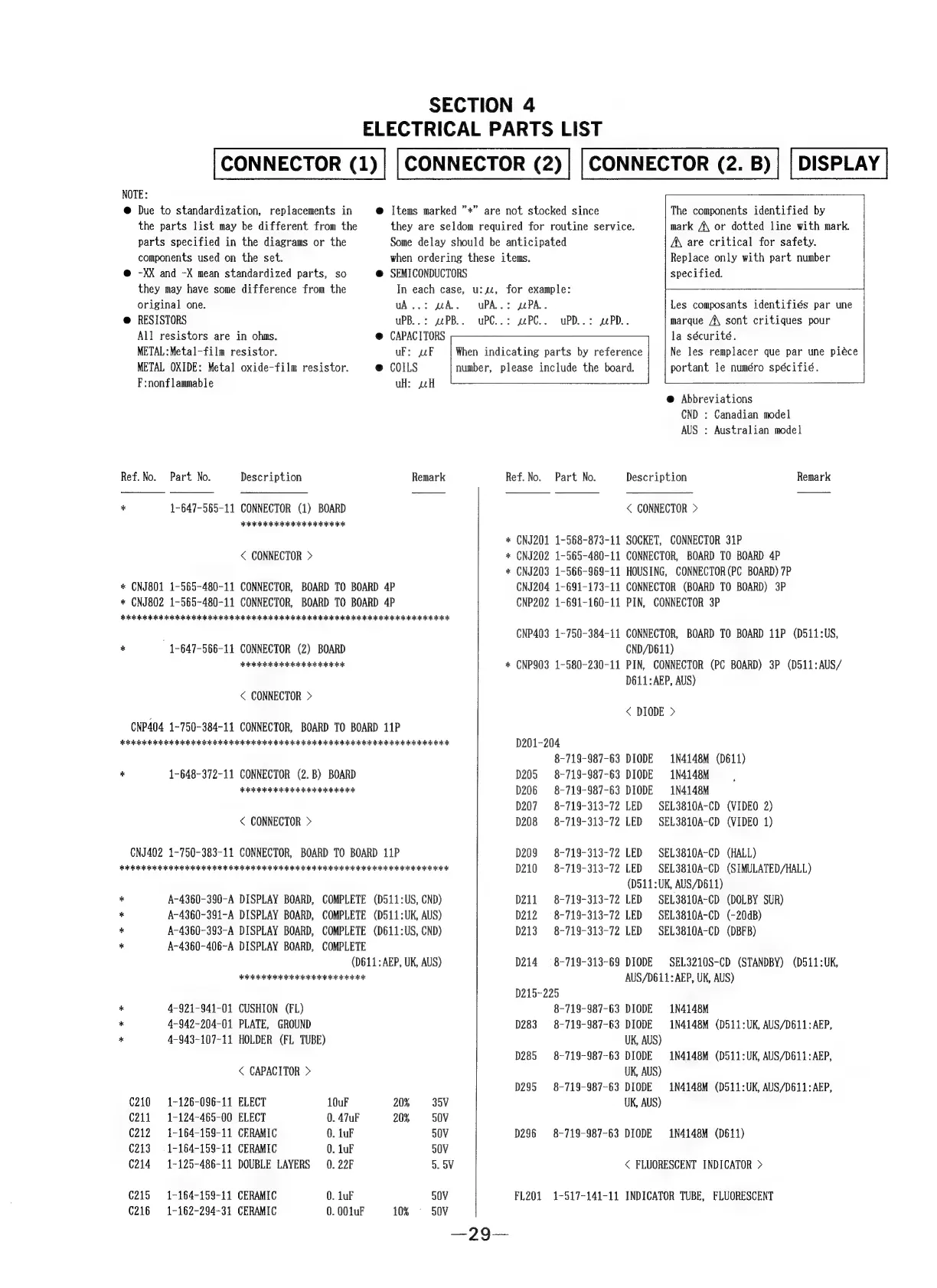

SECTION 4
ELECTRICAL PARTS LIST
CONNECTOR (1)/| | CONNECTOR (2)| | CONNECTOR (2. B)| | DISPLAY
NOTE:
@ Due to standardization, replacements in @ Items marked ”*” are not stocked since The components identified by
the parts list may be different from the they are seldom required for routine service. mark A\ or dotted line with mark.
parts specified in the diagrams or the Some delay should be anticipated A\ are critical for safety.
components used on the set. when ordering these items. Replace only with part number
@ -XX and -X mean standardized parts, so @ SEMICONDUCTORS specified.
they may have some difference from the In each case, u:z, for example:
original one. uA..: WA. uPA: “PA. Les composants identifiés par une
@ RESISTORS uPB..: “PB.. uPC..: sPC.. uPD..: xPD.. marque A\ sont critiques pour
All resistors are in ohms. @ CAPACITORS la sécurité.
METAL :Metal-film resistor. uF: uF When indicating parts by reference Ne les remplacer que par une piéce
METAL OXIDE: Metal oxide-film resistor. @ COILS number, please include the board. portant le numéro spécifié.
F:nonflammable uH: wH
@ Abbreviations
CND : Canadian model
AUS : Australian model
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
* 1-647-565-11 CONNECTOR (1) BOARD < CONNECTOR >
SR RR oioiolokok ko dokokok ok
* ONJ201 1-568-873-11 SOCKET, CONNECTOR 31P
< CONNECTOR > * C(NJ202 1-565-480-11 CONNECTOR, BOARD TO BOARD 4P
* (NJ203 1-566-969-11 HOUSING, CONNECTOR (PC BOARD) 7P
* CNJ801 1-565-480-11 CONNECTOR, BOARD TO BOARD 4P CNJ204 1-691-173-11 CONNECTOR (BOARD TO BOARD) 3P
* (NJ802 1-565-480-11 CONNECTOR, BOARD TO BOARD 4P CNP202 1-681-160-11 PIN, CONNECTOR 3P
FRO IO III OR IO CIO I OR IG I Rk kok a tok kok
CNP403 1-750-384-11 CONNECTOR, BOARD TO BOARD 11P (D511:US,
* 1-647-566-11 CONNECTOR (2) BOARD CND/D611)
lla lalallala * CNP903 1-580-230-11 PIN, CONNECTOR (PC BOARD) 3P (D511:AUS/
D611: AEP, AUS)
< CONNECTOR >
< DIODE >
CNP404 1-750-384-11 CONNECTOR, BOARD TO BOARD 11P
SEO OOOO BIOORG IOI GGA IR Ok D201-204
8-719-987-63 DIODE 1N4148M (D611)
* 1-648-372-11 CONNECTOR (2.B) BOARD D205 8-719-987-63 DIODE 1N4148M
FOIA IIIA III D206 8-719-987-63 DIODE 1N4148M
D207 + 8-719-313-72 LED SEL3810A-CD (VIDEO 2)
< CONNECTOR > D208 8-719-313-72 LED SEL3810A-CD (VIDEO 1)
CNJ402 1-750-383-11 CONNECTOR, BOARD TO BOARD 11P D209 = =8-719-313-72 LED SEL3810A-CD (HALL)
SEFC IO OO GIO GOOG GOOG OOOO OIC OOO IO IS Rzok kok D210 8-719-313-72 LED SEL3810A-CD (SIMULATED/HALL)
(D511: UK, AUS/D611)
* A-4360-390-A DISPLAY BOARD, COMPLETE (D511:US, CND) D211 8-719-313-72 LED SEL3810A-CD (DOLBY SUR)
* A-4360-391-A DISPLAY BOARD, COMPLETE (D511:UK, AUS) D212 = 8-719-313-72 LED SEL3810A-CD (-20dB)
* A-4360-393-A DISPLAY BOARD, COMPLETE (D611:US, CND) D213 8-719-313-72 LED SEL3810A-CD (DBFB)
* A-4360-406-A DISPLAY BOARD, COMPLETE
(D611: AEP, UK, AUS) D214 = 8-719-313-69 DIODE SEL3210S-CD (STANDBY) (D511:UK,
FESO IO RI IIE AUS/D611: AEP, UK, AUS)
D215-225
* 4-921-941-01 CUSHION (FL) 8-718-987-63 DIODE 1N4148M
* 4-942-204-01 PLATE, GROUND D283 = 8-719-987-63 DIODE 1N4148M (D511:UK, AUS/D611: AEP,
* 4-943-107-11 HOLDER (FL TUBE) UK, AUS)
D285 8-719-987-63 DIODE 1N4148M (D511:UK, AUS/D611: AEP,
< CAPACITOR > UK, AUS)
D295 8-719-987-63 DIODE 1N4148M (D511:UK, AUS/D611: AEP,
C210 = =1-126-096-11 ELECT 10uF 20% 35V UK, AUS)
C211 1-124-465-00 ELECT 0. 47uF 20% 30V
C212 =1-164-159-11 CERAMIC 0. 1uF 50V D296 8-719-987-63 DIODE 1N4148M (D611)
(213 = 1-164-159-11 CERAMIC 0. luF 50V
C214 1-125-486-11 DOUBLE LAYERS 0. 22F 5. 5V < FLUORESCENT INDICATOR >
€215 1-164-159-11 CERAMIC 0. LuF 30V FL201 1-517-141-11 INDICATOR TUBE, FLUORESCENT
C216 1-162-294-31 CERAMIC 0. O01uF 10% ~ 50V
