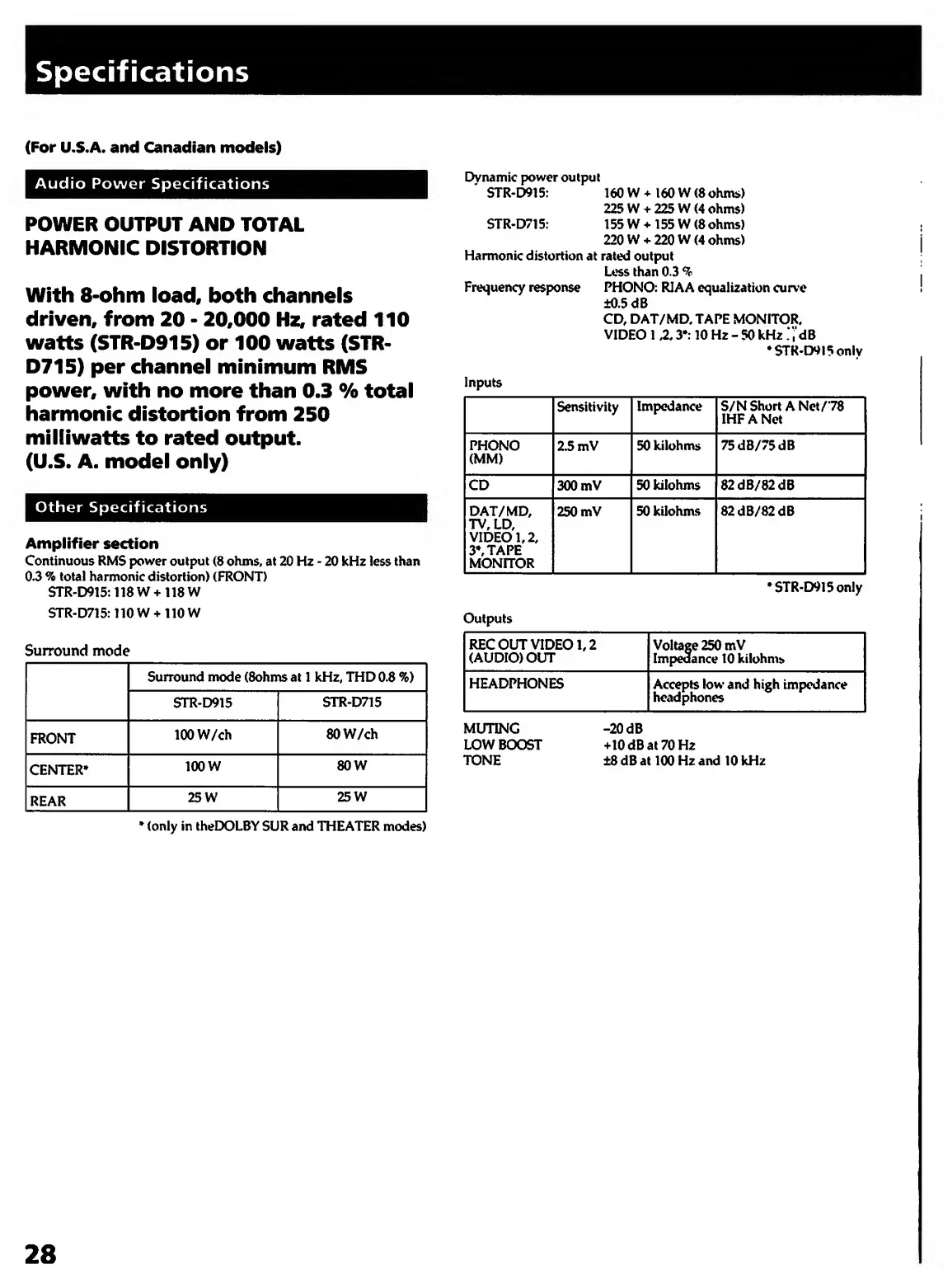

Specifications
(For U.S.A. and Canadian models)
Audio Power Specifications
POWER OUTPUT AND TOTAL
HARMONIC DISTORTION
With 8-ohm load, both channels
driven, from 20 - 20,000 Hz, rated 110
watts (STR-D915) or 100 watts (STR-
D715) per channel minimum RMS
power, with no more than 0.3 % total
harmonic distortion from 250
milliwatts to rated output.
(U.S. A. model only)
Other Specifications
Amplifier section
Continuous RMS power output (8 ohms, at 20 Hz • 20 kHz less than
0.3 % total harmonic distortion) (FRONT)
STR-D915:118W+n8W
STR-D715:110W + 110W
Surround mode
Surround mode (Sohms at 1 kHz, THD 0.8 %)
STR-D915
STR-D715
FRONT
lOOW/ch
80W/ch
CENTER*
100 W
80W
REAR
25W
25W
* (only in theDOLBY SUR and THEATER modes)
Ovnamic power output
STR-D915: 160 W + 160 W (8 ohms)
225 W + 225 W (4 ohms)
STR-D715: 155 W + 155 W (8 ohms)
220 W + 220 W (4 ohms)
Harmonic distortion at rated output
Loss than 0.3 %
Frequency response PHONO; RIAA equalization curve
±0.5 dB
CD, DAT/MD. TAPE MONITOR,
VIDEO 1,2,3^: 10 Hz - 50 kHz . JdB
•STR-WISonlv
Inputs
Sensitivity
Impedance
S/NShort ANet/’TS
IHFANet
PHONO
(MM)
2.5 mV
50 kilohms
75dB/75dB
CD
300 mV
50 kilohms 82dB/82dB
DAT/MD,
TV, LD,
VIDEO 1,2,
3*, TAPE
MONITOR
250mV
50 kilohms 82dB/82dB
•STR.D915only
Outputs
REC OUT VIDEO 1,2
(AUDIO) OUT
Voltaee 250 mV
Impedance 10 kilohms
HEADPHONES
Accepts low and high impedance
headphones
MUTING
LOWBO(3ST
TONE
-20 dB
+10 dB at 70 Hz
±8dBat 100 Hz and 10 kHz
28
