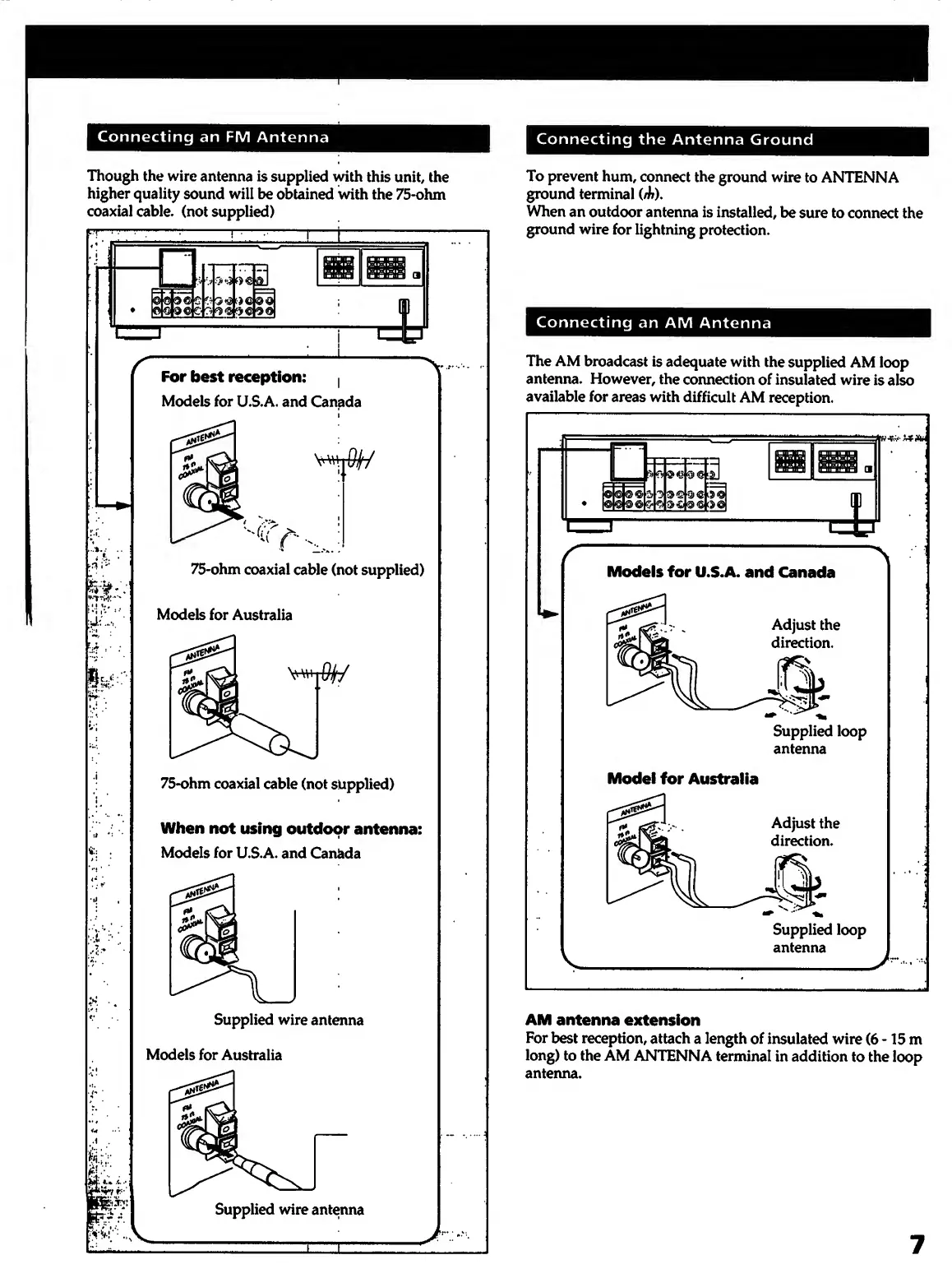

Connecting an FM Antenna
Connecting the Antenna Ground
Though the wire antenna is supplied with this unit the
higher quality sound will be obtained with the 75-ohm
coaxial cable, (not supplied)
For best reception: |
Models for US.A. and Canada
75-ohm coaxial cable (not supplied)
Models for Australia
75-ohm coaxial cable (not supplied)
When not using outdoor antenna:
Models for U.S.A. and Canada
Supplied wire antenna
Models for Australia
To prevent hum, connect the ground wire to ANTENNA
ground terminal (/fc).
When an outdoor antenna is installed, be sure to connect the
ground wire for lightning protection.
Connecting an AM Antenna
The AM broadcast is adequate with the supplied AM loop
antenna. However, the connection of insulated wire is also
available for areas with difficult AM reception.
AM antenna extension
For best reception, attach a length of insulated wire (6 -15 m
long) to the AM ANTENNA terminal in addition to the loop
antenna.
Supplied wire antenna
7
