Sony STR-D911 - Identifying Controls and Components; Front Panel Controls and Indicators

Ko{ztaldtavitate Maal: Moe: late lave mOzelalage) (=
side) a) Mf ot) a1=4 |
Fa oe 7} (silgifio) § fi i2] t3 15)[16} {17} 18)
nimi
:
+=]
ss SSuUuSSc LILJIWMIWMIUILJIUINHoHtHuIwIt Iw 3) =|
31} [30

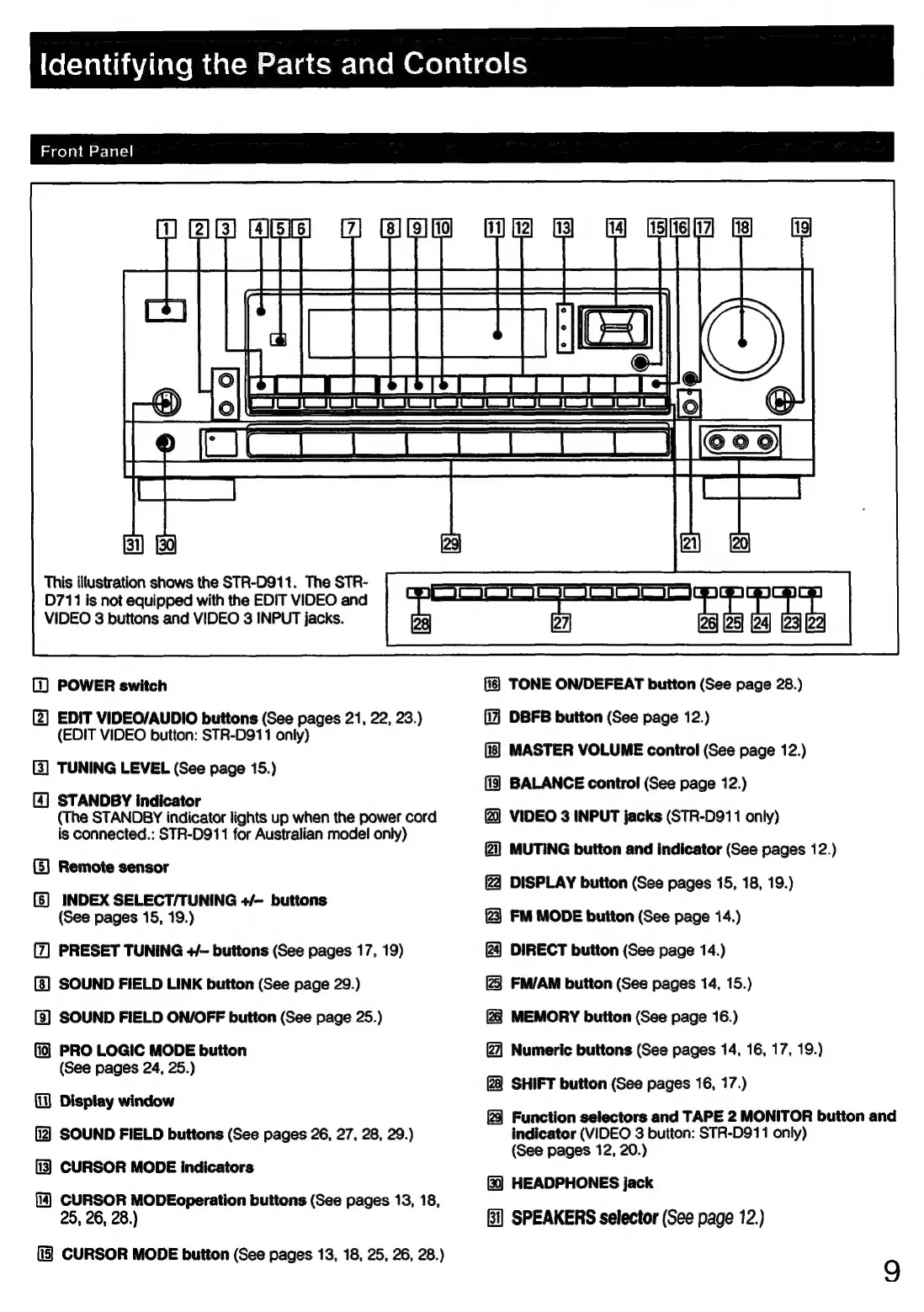

This illustration shows the STR-D911. The STR-
D711 is not equipped with the EDIT VIDEO and
VIDEO 3 buttons and VIDEO 3 INPUT jacks.
) POWER switch
[2] EDIT VIDEO/AUDIO buttons (See pages 21, 22, 23.)
(EDIT VIDEO button: STR-D911 only)
[3] TUNING LEVEL (See page 15.)
(4) STANDBY indicator
(The STANDBY indicator lights up when the power cord
is connected.: STR-D911 for Australian model only)
(5) Remote sensor
(6) INDEX SELECT/TUNING +/~ buttons
(See pages 15, 19.)
PRESET TUNING +/- buttons (See pages 17, 19)
SOUND FIELD LINK button (See page 29.)
SOUND FIELD ON/OFF button (See page 25.)
PRO LOGIC MODE button
(See pages 24, 25.)
{W) Display window
[2] SOUND FIELD buttons (See pages 26, 27, 28, 29.)
(3) CURSOR MODE indicators
[4] CURSOR MODEoperation buttons (See pages 13, 18,
25, 26, 28.)
{3 CURSOR MODE button (See pages 13, 18, 25, 26, 28.)
TONE ON/DEFEAT button (See page 28.)
{i7] DBFB button (See page 12.)
MASTER VOLUME control (See page 12.)
(i3] BALANCE control (See page 12.)
VIDEO 3 INPUT jacks (STR-D911 only)
2) MUTING button and indicator (See pages 12.)
24 DISPLAY button (See pages 15, 18, 19.)
i233 FM MODE button (See page 14.)
DIRECT button (See page 14.)
FM/AM button (See pages 14, 15.)
26 MEMORY button (See page 16.)
@2 Numeric buttons (See pages 14, 16, 17, 19.)
NS
SHIFT button (See pages 16, 17.)
&)
Function selectors and TAPE 2 MONITOR button and
indicator (VIDEO 3 button: STR-D911 only)
(See pages 12, 20.)
HEADPHONES jack
Bi] SPEAKERS selector (See page 12.)
