Sony STR-DA3000ES - Front Panel Section

12
STR-DA3000ES

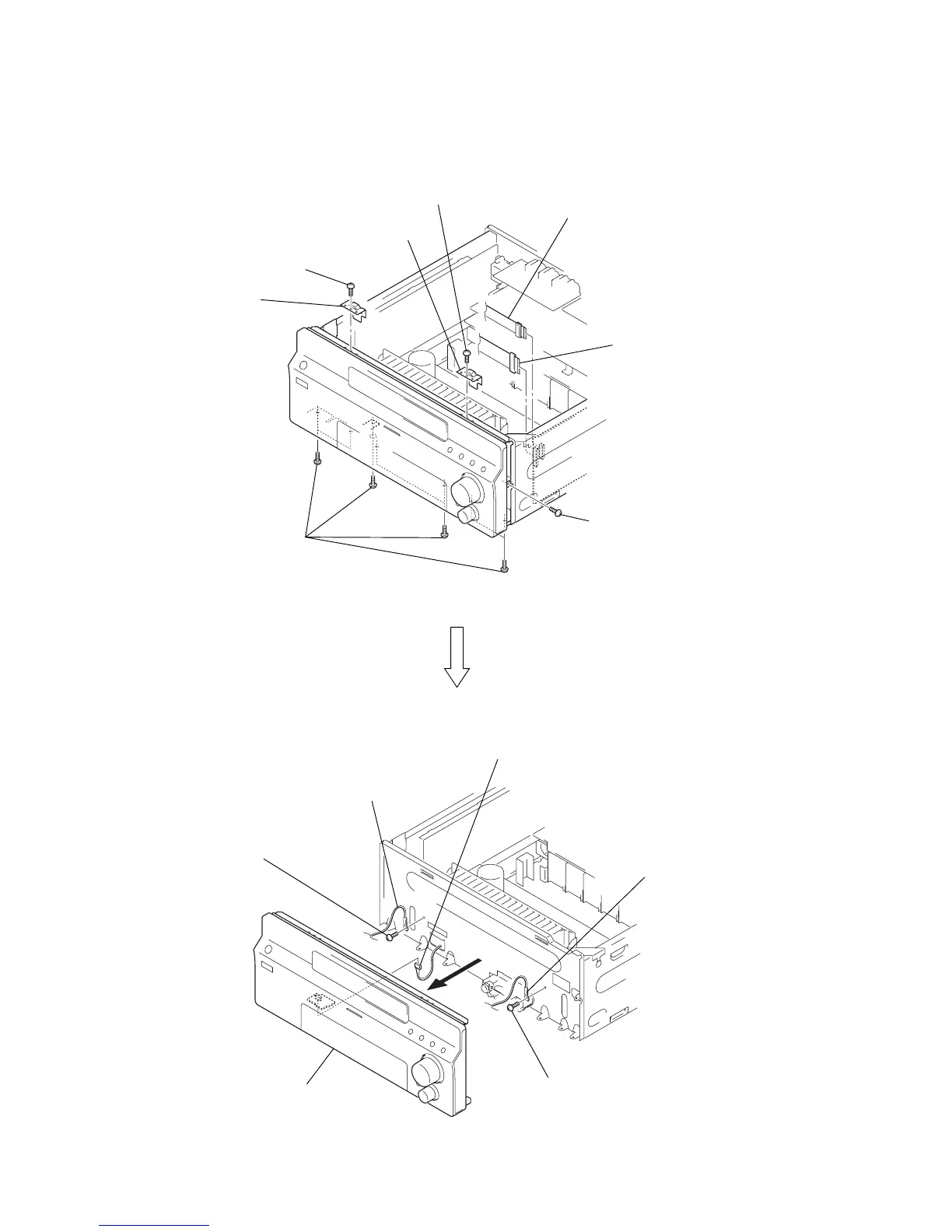

3-3. FRONT PANEL SECTION
5 screw (BV/RING)
2 wire (flat type) (23 core)
(CN2008)
1 wire (flat type) (17 core)
(CN2007)
3 screw
(BVTP3
× 8)
3 screw
(BVTP3
× 8)
5 seven screws
(BV/RING)
4 bracket (panel)
4 bracket (panel)
8 screw
(BVTP3
× 8)
8 screw
(BVTP3
× 8)
6
0 front panel section
9 ground wire
9 ground wire
7 connector
(CN1012)
