6
STR-DA3000ES
Note: Follow the disassembly procedure in the numerical order given.

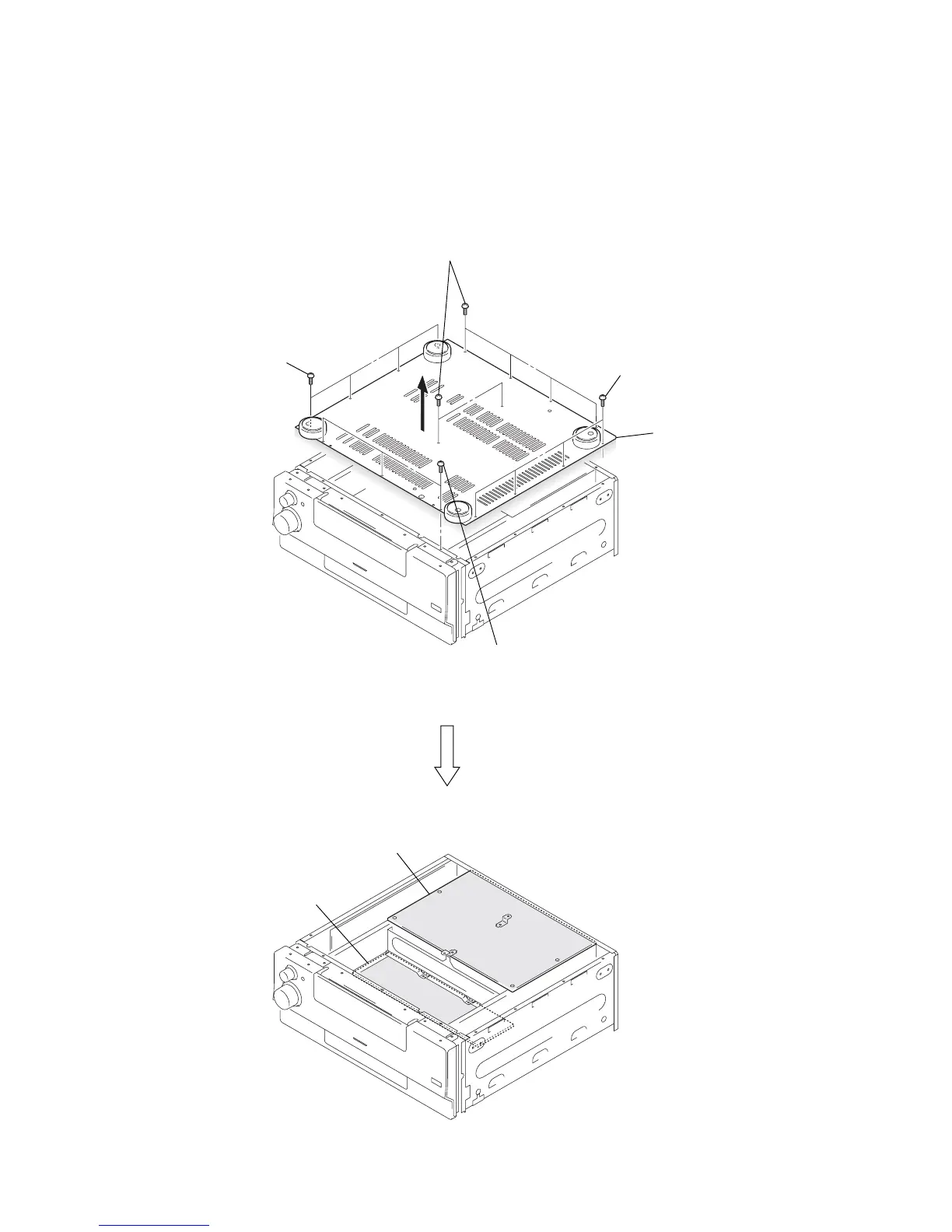

D-AMP BOARD, REG BOARD SERVICE POSITION
– BOTTOM VIEW –
1
four screws
(BVTP3
×
8)
1
six screws
(BVTP3
×
8)
1
four screws
(BVTP3
×
8)
1
three screws
(BVTP3
×
8)
2
bottom plate
REG board
D-AMP board
