Hooking Up the Components
11
GB
STR-DE595/DE495 4-244-173-71(1) (GB, CS)
AFAF
L
R
FRONT
SURROUND
SUB
WOOFER
MULTI CH OUT
CENTER
L
R
L
R
L
R
L
R
L
R
y
AM
DIGITAL
ANTENNA
MONITOR
OPTICAL
VIDEO 2
IN
CD/
SACD
IN
DVD IN
COAXIAL
FRONT SURROUND
SUB
WOOFER
CENTER
IN OUT
IN
AUDIO IN AUDIO IN
AUDIO OUT
AUDIO IN
VIDEO IN VIDEO IN VIDEO OUT VIDEO IN VIDEO OUT
AUDIO
OUT
SUB
WOOFER
VIDEO 1
VIDEO 2
DVDMD/TAPE
CD
/
SACD
MULTI CH IN

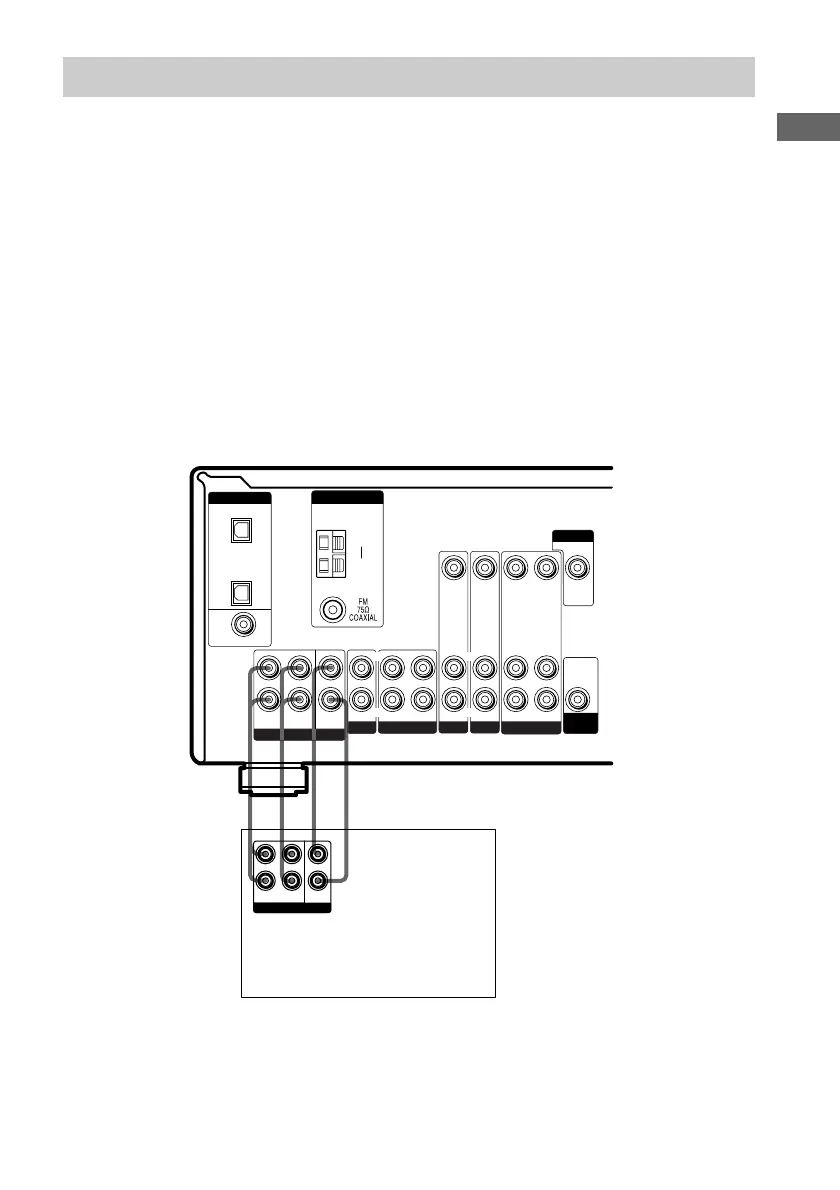

Multi channel input hookups
STR-DE595 only
Although this receiver incorporates a multi channel decoder, it is also equipped with multi channel
input jacks. These connections allow you to enjoy multi channel software encoded in formats other
than Dolby Digital and DTS. If your DVD player is equipped with multi channel output jacks, you
can connect them directly to the receiver to enjoy the sound of the DVD player’s multi channel
decoder. Alternatively, the multi channel input jacks can be used to connect an external multi channel
decoder.
To fully enjoy multi channel surround sound, five speakers (two front speakers, two surround
speakers, and a center speaker) and a sub woofer are required. Refer to the operating instructions
supplied with your DVD player, multi channel decoder, etc., for details on the multi channel
hookups.
Notes
• When using the connections described below, adjust the level of the surround speakers and sub woofer from the
DVD player or multi channel decoder.
• See page 13 for details on speaker system hookup.
DVD player,
Multichannel decoder, etc.
To Next Page
