16
GB

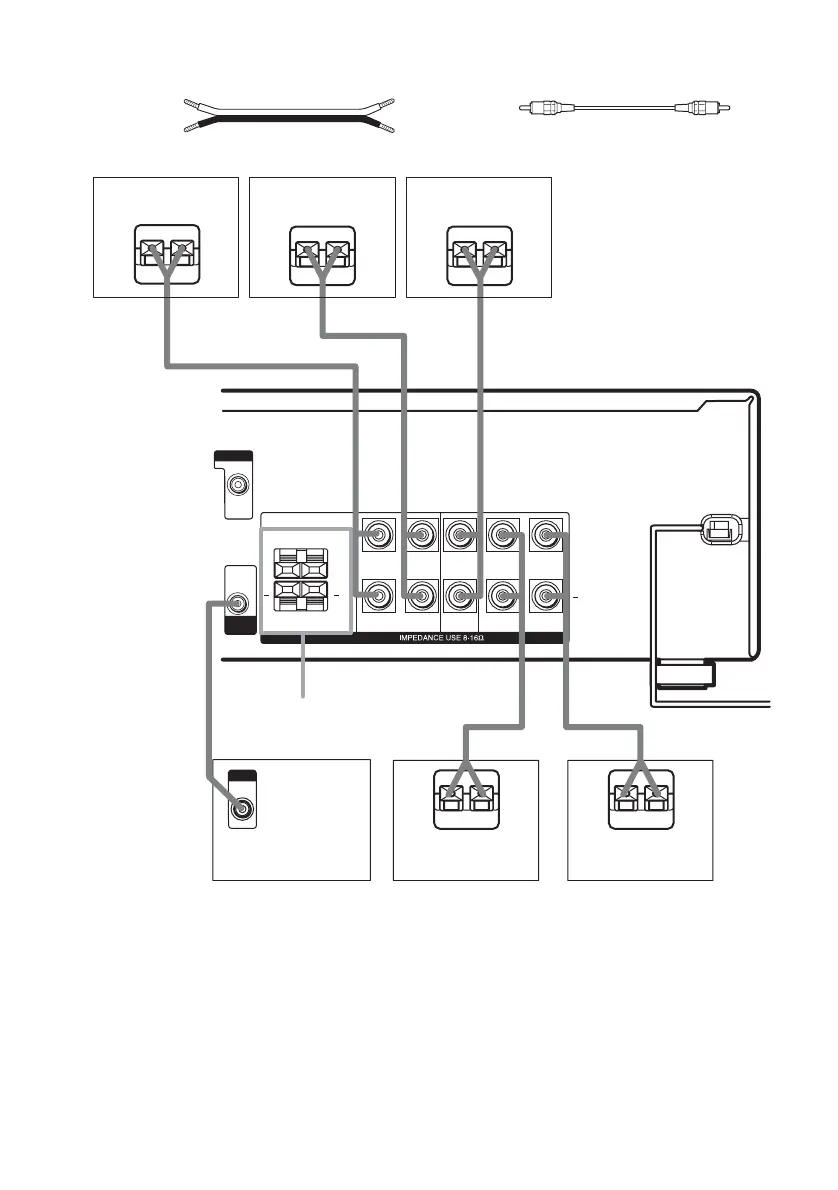

Required cords
A Speaker cords (not supplied)
(+)
B Monaural audio cord (not supplied)
Black
(–)
* If you have an additional front speaker system, connect them to the SPEAKERS FRONT B terminals. You can
select the front speakers you want to use with the SPEAKERS (OFF/A/B/A+B) button. For details, see “Selecting
the speaker system” (page 36).
MONITOR
SUB
WOOFER
VIDEO OUT
AUDIO
OUT
SPEAKERS
FRONT B
RL
RL
RL
+ +
+
CENTER
SURROUND
RL
Ee
A
Ee
A
E e
A
INPUT
AUDIO
IN
B
E e
A
SPEAKERS
FRONT B*
Ee
A
FRONT A
Surround speaker
(Right)
Sub woofer
Front speaker
(Right)
Surround speaker
(Left)
Center speaker
Front speaker
(Left)
