Hooking up a DVD player or satellite tuner
For details on the required cords (A–F), see page 6.
1 Connect the audio jacks.
Note
You can listen to the sound of your TV by connecting your TV’s audio output jacks to the VIDEO 2 AUDIO IN jacks
on the receiver. In this case, do not connect the TV’s video output jack to the VIDEO 2 VIDEO IN jack on the
receiver.

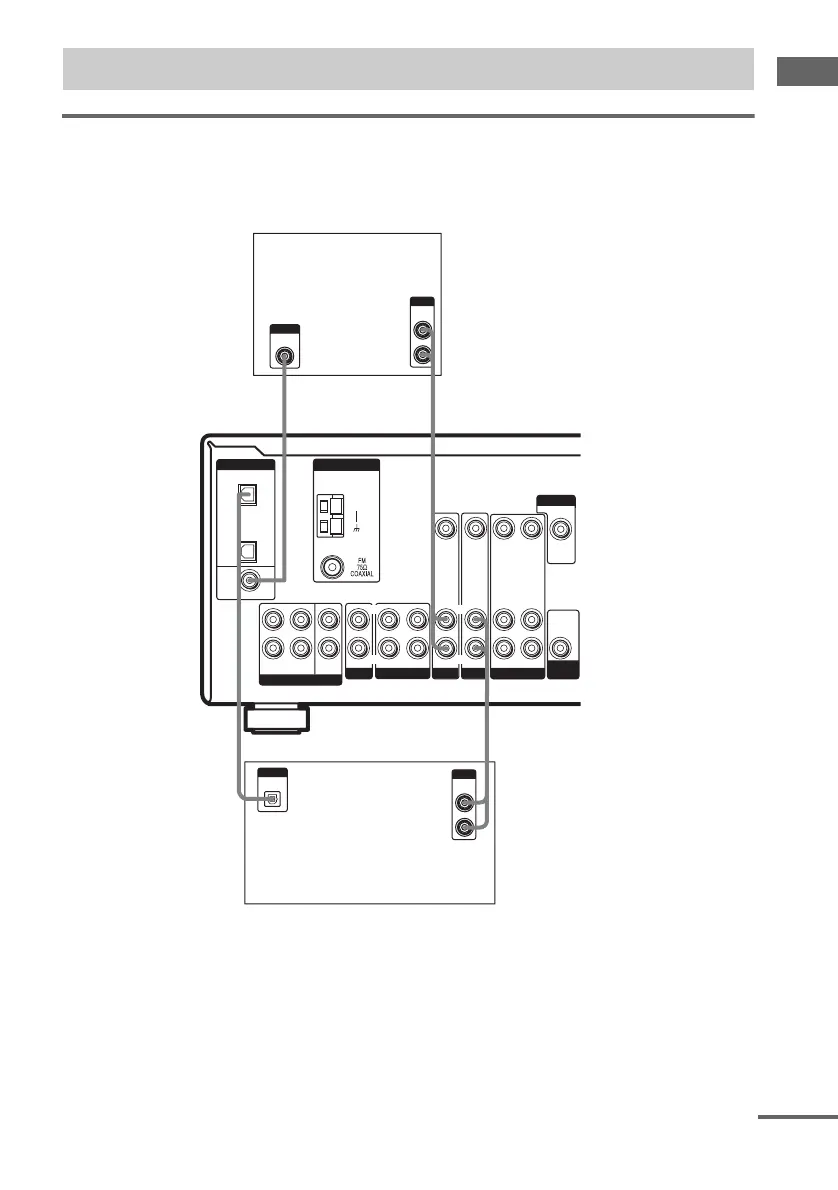

1a: Connecting components with digital audio output jacks
