Sony STR-DE925 - Power Supply Schematic Details

STR-DE925/V919
— 39 —
— 40 —

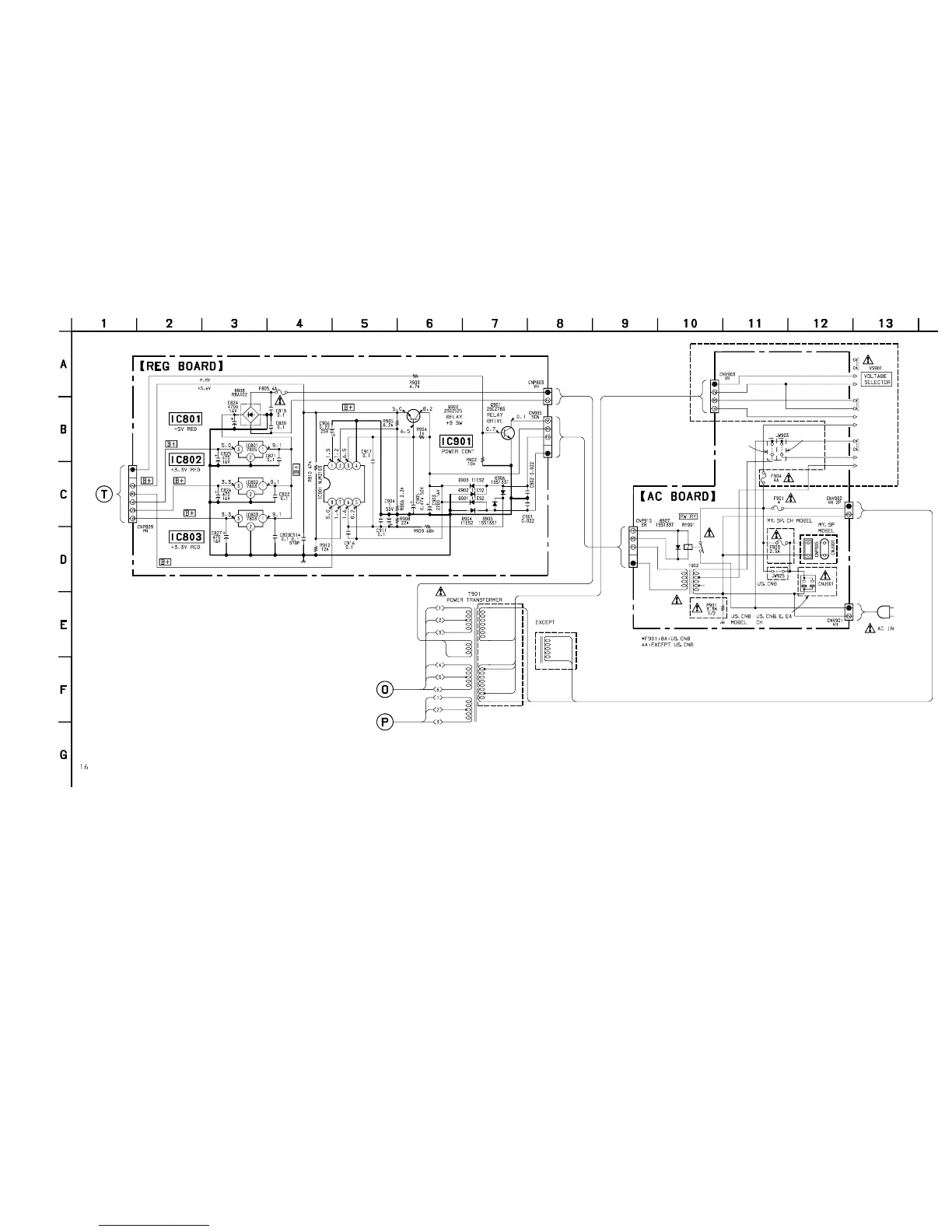

3-17. SCHEMATIC DIAGRAM — POWER SECTION —
• See page 61 for IC Block Diagrams.
(Page16)
(Page16)
(Page49)
E, EA, PX MODEL
E, EA, PX MODEL
E, EA, PX MODEL
, PX MODEL
E, EA, PX
MODEL
EXCEPT
E, EA, PX
MODEL
E, EA, PX MODEL
