STR-DE925/V919
— 35 —
— 36 —

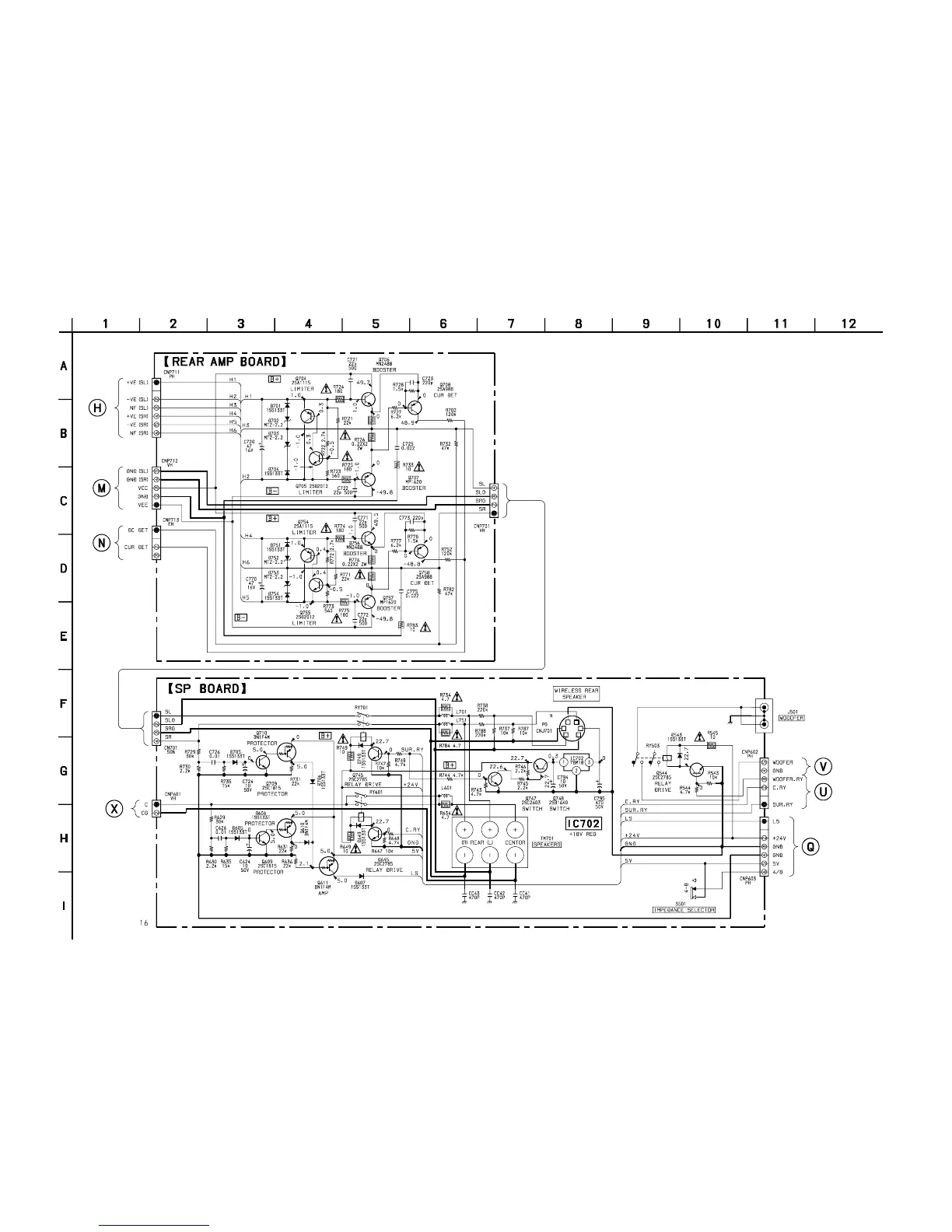

3-15. SCHEMATIC DIAGRAM — SPEAKER SECTION —
(Page28)
(Page15)
(Page15)
(Page16)
(Page28)
(Page47)
(Page16)
