Sony STR-DE925 - Page 13

STR-DE925/V919
— 47 — — 48 —

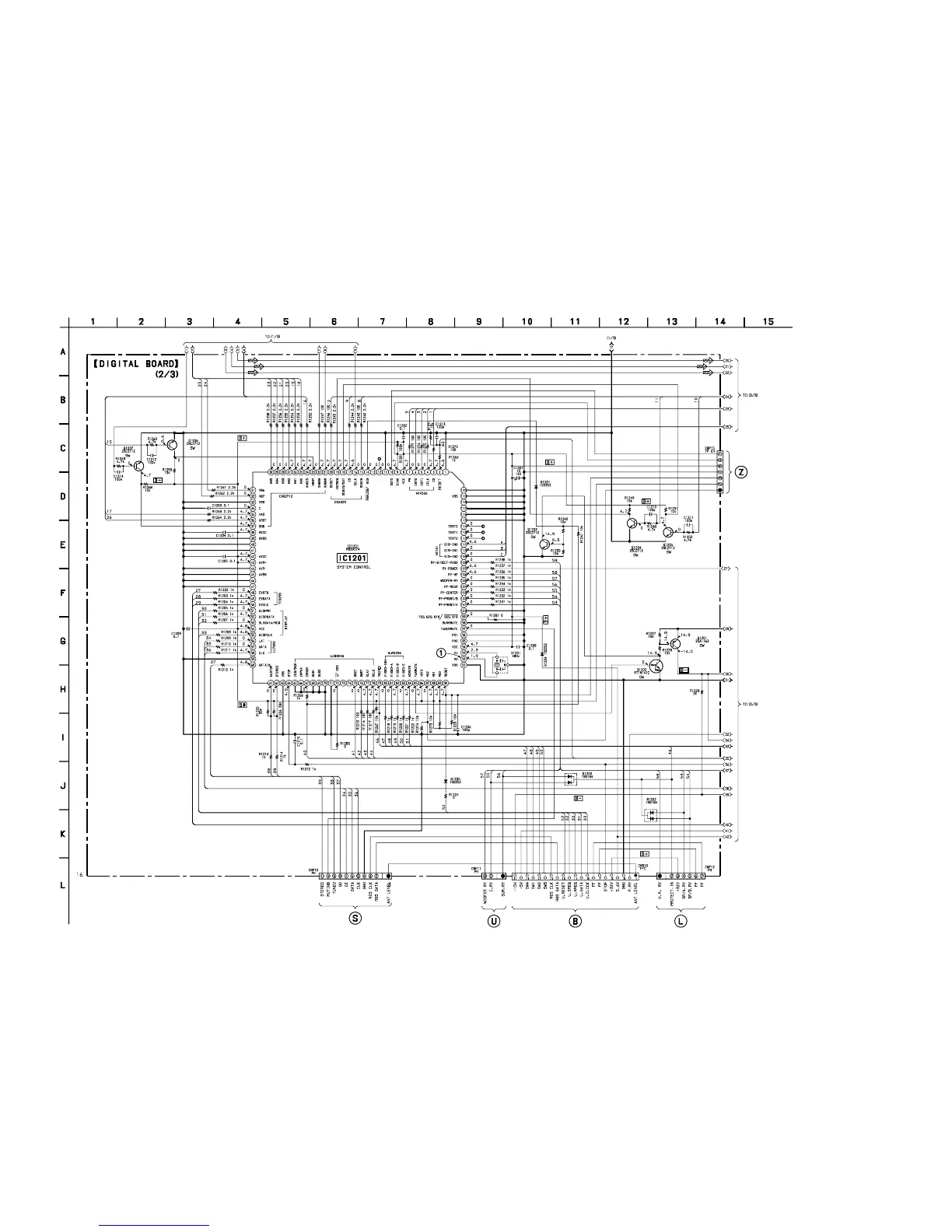

3-21. SCHEMATIC DIAGRAM — DIGITAL SECTION (2/3)— • See page 51 for IC Pin Functions. • See page 8 for Waveforms.
(Page45)
(Page46)
(Page49)
(Page32)
(Page49)
(Page15)
(Page31)(Page36)
(Page24)
