8: Adjusting the speaker
levels and balance
(TEST TONE)
You can adjust the speaker levels and balance
while listening to the test tone from your
listening position.
Tip
The receiver employs a test tone with a frequency
centered at 800 Hz.
1 Press AMP MENU.
“1-LEVEL” appears on the display.
2 Press the control button or
control button b to enter the
menu.
3 Press control button V/v
repeatedly to select “T. TONE”.
4 Press the control button or
control button b to enter the
parameter.
5 Press control button V/v
repeatedly to select “T. TONE
Y”.
The test tone is output from each speaker
in sequence as follows:
Front left t Center t Front right t
Surround right t Surround back right*
t Surround back left* t Surround left
t Sub woofer
* You will only hear test tone from the
– surround back left and right speakers when
the surround back speakers are set to
“DUAL”
(page 43).
– surround back speaker when the surround
back speakers are set to “SINGLE”
(page 43).
6 Adjust the speaker levels and
balance using the LEVEL menu
so that the level of the test tone
sounds the same from each
speaker.
For details, see “Adjusting the level
(LEVEL menu)” (page 44).
Tips
• To adjust the level of all speakers at the same
time, press MASTER VOL +/–. You can also
use MASTER VOLUME on the receiver.
• The adjusted value are shown on the display
during adjustment.
7 Repeat steps 1 to 5 to select
“T. TONE N”.
The test tone turns off.
Note
The test tone does not work when MULTI CH IN or
ANALOG DIRECT is selected.

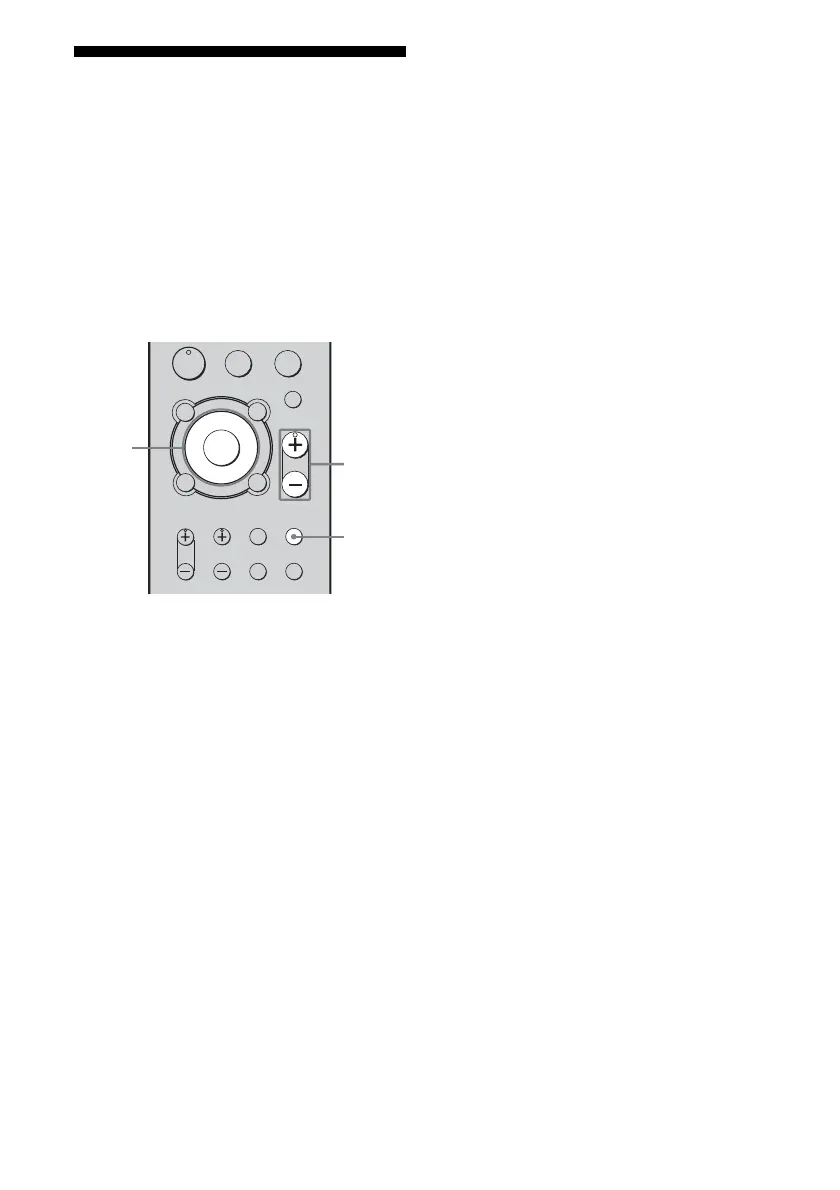

H
