STR-DN1000

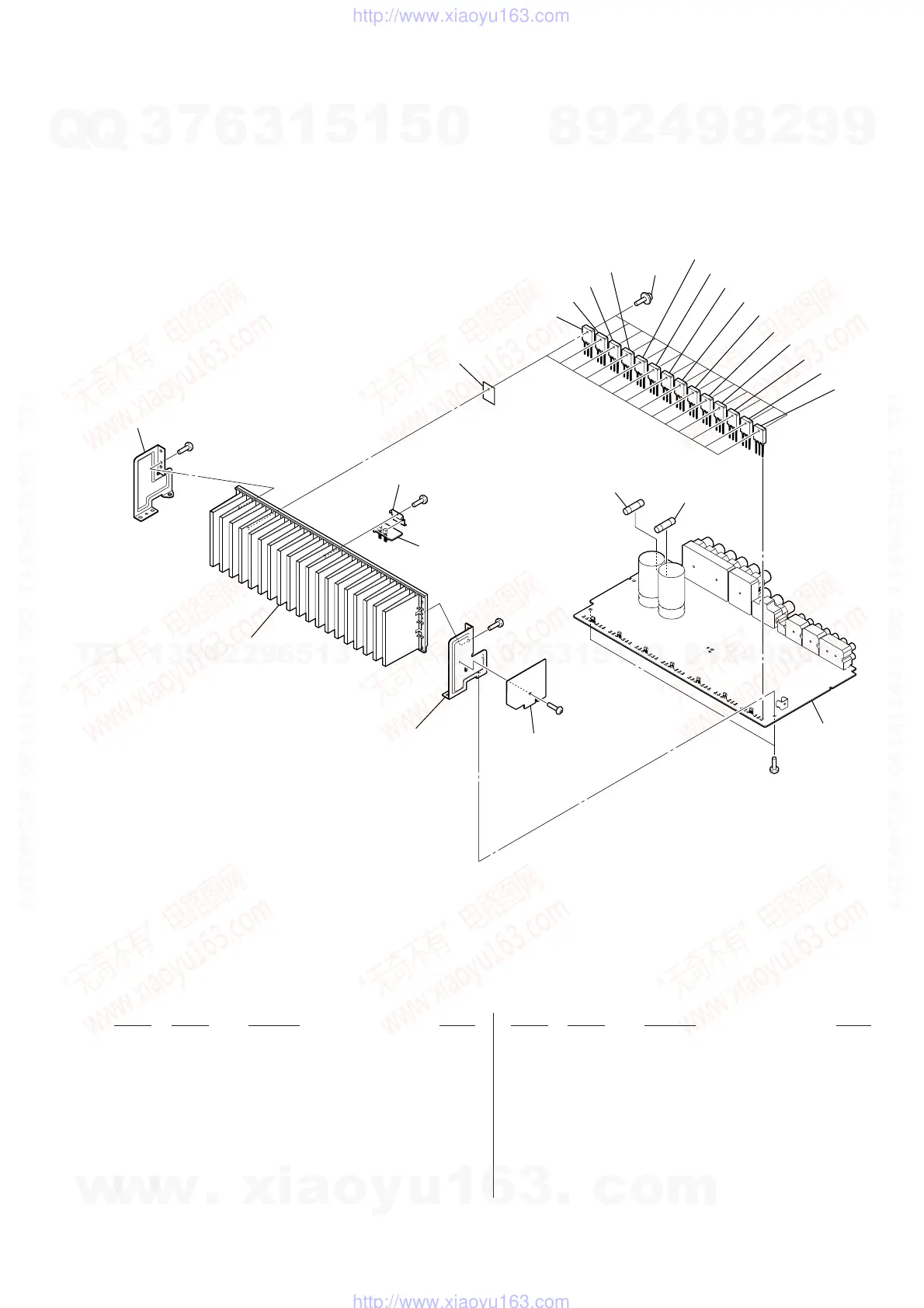

6-5. HEATSINK SECTION
201 A-1701-177-A MAIN BOARD, COMPLETE (US, CND)
201 A-1701-207-A MAIN BOARD, COMPLETE (AEP, UK, E51, AUS)
202 3-905-609-01 SCREW (TRANSISTOR)
0 F403 1-532-506-33 FUSE (T6.3AL/250V)
0 F404 1-532-506-33 FUSE (T6.3AL/250V)
0 IC604 6-702-390-01 TRANSISTOR MN2488-OPY-MK
0 IC605 6-702-391-01 TRANSISTOR MP1620-OPY-MK
0 IC606 6-702-390-01 TRANSISTOR MN2488-OPY-MK
0 IC607 6-702-391-01 TRANSISTOR MP1620-OPY-MK
0 IC608 6-702-390-01 TRANSISTOR MN2488-OPY-MK
0 IC609 6-702-391-01 TRANSISTOR MP1620-OPY-MK
0 IC610 6-702-390-01 TRANSISTOR MN2488-OPY-MK
0 IC611 6-702-391-01 TRANSISTOR MP1620-OPY-MK
0 IC612 6-702-390-01 TRANSISTOR MN2488-OPY-MK
0 IC613 6-702-391-01 TRANSISTOR MP1620-OPY-MK
0 IC614 6-702-390-01 TRANSISTOR MN2488-OPY-MK
0 IC615 6-702-391-01 TRANSISTOR MP1620-OPY-MK
0 IC616 6-702-390-01 TRANSISTOR MN2488-OPY-MK
0 IC617 6-702-391-01 TRANSISTOR MP1620-OPY-MK
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
not supplied
not supplied
not supplied
(INSULATOR board)
not supplied
not supplied
not supplied
(THERMAL SENSOR board:
CND, AEP, UK, E51, AUS/
THERMAL SENSOR2 board: US)
supplied with
IC604 IC617
IC617
IC614
IC616
IC611
IC610
IC607
IC606
IC613
IC612
IC609
IC608
IC605
IC604
F404
F403
IC615
#1
#1
#1
#1
#1
202
