Sony STR-DN1010 Service Manual

77
STR-DN1010

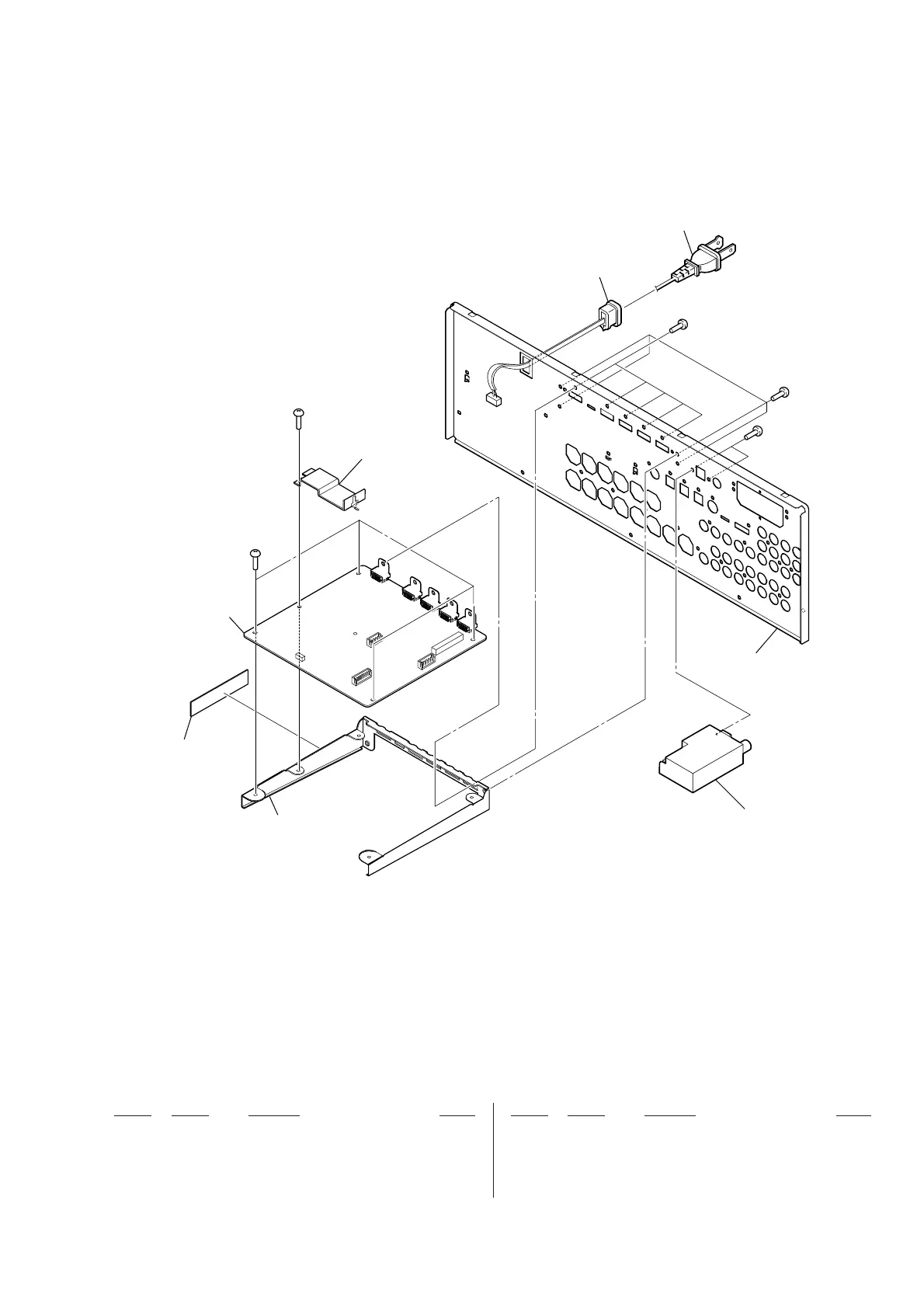

6-3. BACK PANEL SECTION
9 101 A-1755-484-A DIGITAL VIDEO BOARD, COMPLETE
0 102 4-966-267-12 BUSHING (FBS001), CORD
0 103 1-777-071-83 CORD, POWER (UK, ECE)
0 103 1-834-270-11 CORD, POWER (US, CND)
0 103 1-833-566-21 POWER SUPPLY CORD (AUS)
104 3-381-709-21 CUSHION, SARANET
TN1 1-693-737-21 TUNER (FM/AM) (UK, AUS, ECE)
TN1 1-693-779-11 TUNER (FM/AM) (US, CND)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-871-01 SCREW +BVTT 3X6 (S)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
not supplied
TN1
#1
#1
#2
#1
#1
101
not supplied
not supplied
(heat sink DVIDEO)
104
102
103

Sony STR-DN1010 Specifications

General

Impedance	8 Ω
Audio output channels	7.1 channels
HDMI	Yes
Output power	200 W
Dimensions (WxDxH)	430 x 157.5 x 324.5 mm
Supported video modes	1080p
Product color	Black
Connectivity technology	Wired
Headphone outputs	1
Component video (YPbPr/YCbCr) in	3
