2 Connect the video jacks.

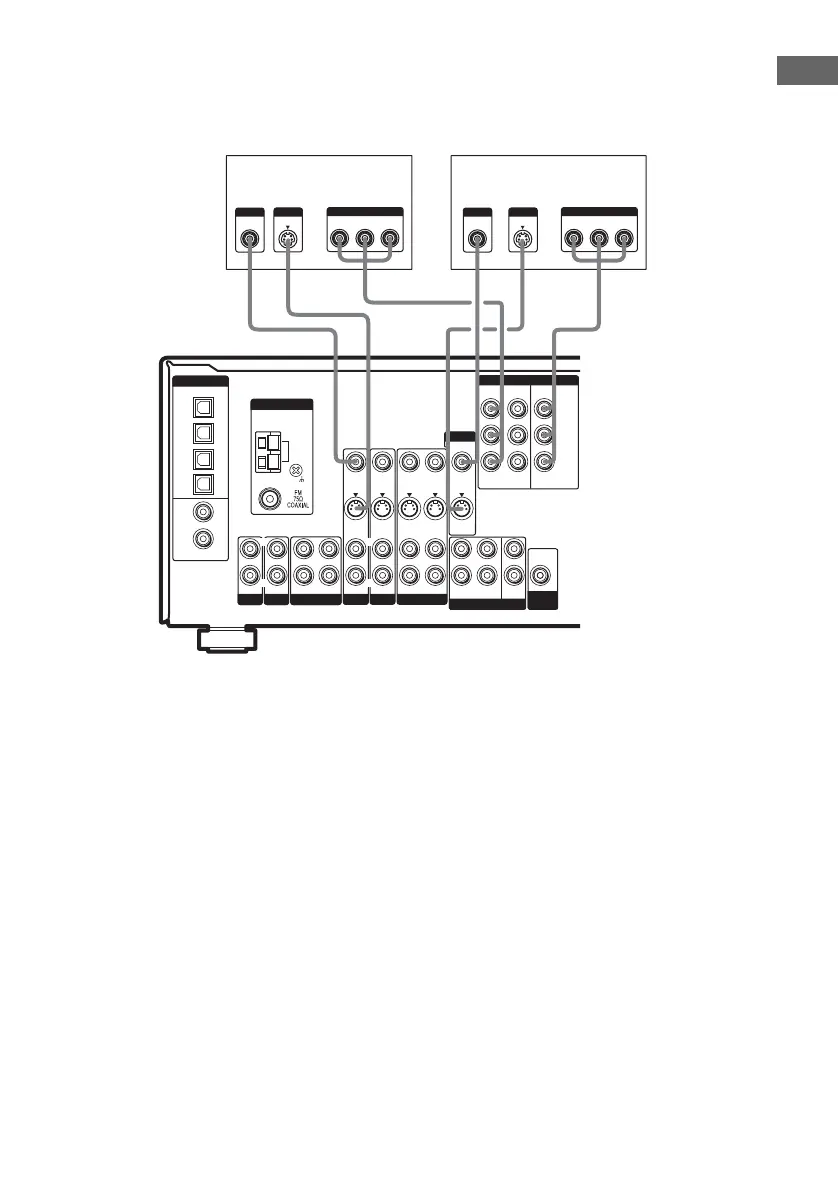

The following illustration shows how to connect a DVD player with COMPONENT VIDEO (Y,
P
B
/C
B
/B-Y, P
R
/C
R
/R-Y) output jacks. Connecting a TV with component video input jacks allows you
to enjoy higher quality video.
Tip
When using the S-video jacks instead of the video jacks, your monitor must also be connected via an S-video jack.
S-video signals are on a separate bus from the video signals and will not be output through the video jacks.
Note
On this receiver, the standard video signals cannot be converted to S-video or component video signals (or vice
versa).
S VIDEO
OUTPUT
S VIDEO
INPUT
S-VIDEO
OUT
VIDEO 1
MULTI CH IN
FRONT
CENTER
SUB
WOOFER
SURROUND
S-VIDEO
IN
VIDEO IN
AUDIO IN
AUDIO
OUT
S-VIDEO
IN
VIDEO IN
S-VIDEO
OUT
VIDEO OUT
VIDEO 2
AUDIO IN
DIGITAL
OPTICAL
VIDEO 2
IN
MD/
TAPE
IN
MD/
TAPE
OUT
SA-CD/
CD
IN
SA-CD/
CD
IN
DVD
IN
COAXIAL
AUX MD/TAPE SA-CD / CD
L
R
L
R
SUB
WOOFER
L
R
L L
R R
OUT ININ IN
S-VIDEO
IN
VIDEO IN
DVD
AUDIO IN AUDIO OUT
VIDEO OUT
DVD
IN
VIDEO 2
IN
MONITOR
OUT
Y
P
B/CB
/B–Y
P
R/CR
/R–Y
AM
ANTENNA
HC
COMPONENT
INPUT
VIDEO
INPUT
HCD D
COMPONENT
OUTPUT
VIDEO
OUTPUT
Y
P R /C R /R–Y P B /C B /B–Y
Y
P R /C R /R–Y P B /C B /B–Y
COMPONENT VIDEO
ASSIGNABLE
MONITOR
TV monitorDVD player
