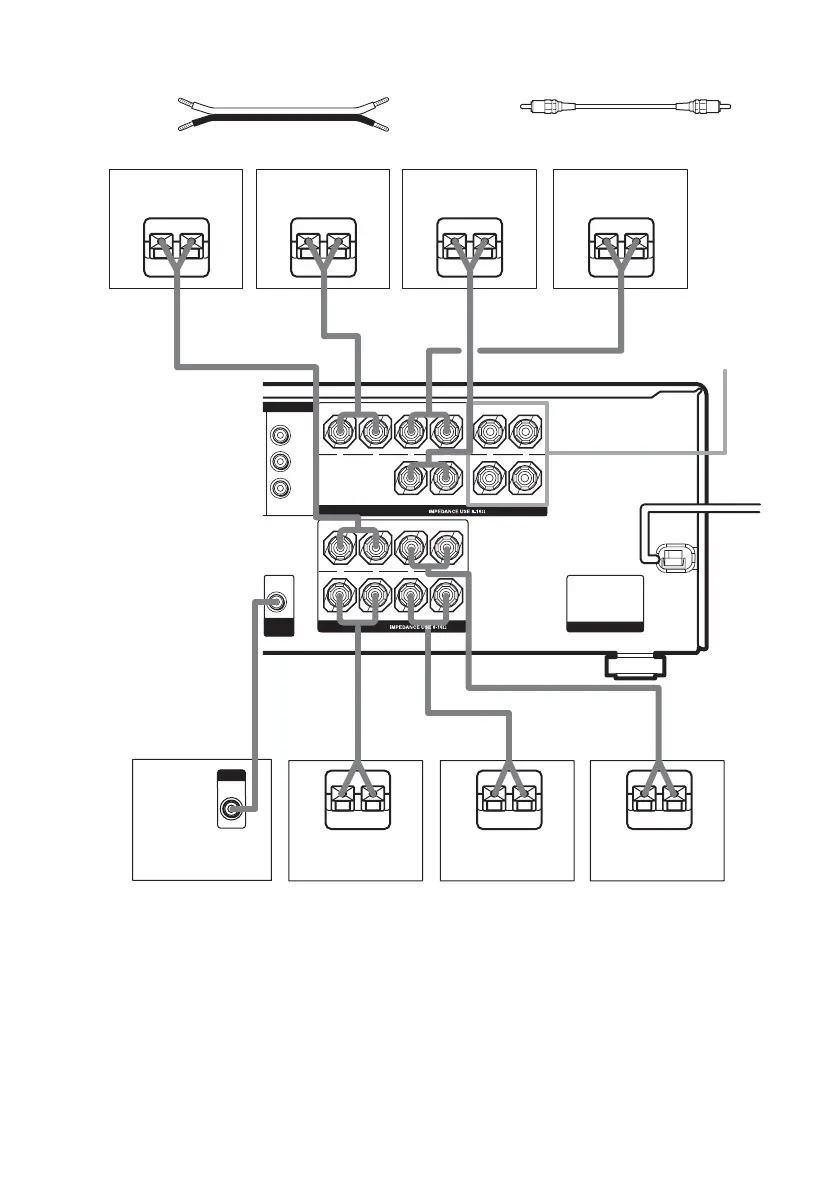

Required cords
A Speaker cords (not supplied)
(+)
B Monaural audio cord (not supplied)
Black
(–)
* If you have an additional front speaker system, connect them to the SPEAKERS FRONT B terminals. You can
select the front speakers you want to use with the SPEAKERS (OFF/A/B/A+B) button. For details, see “Selecting
the speaker system” (page 41).
** If you connect only one surround back speaker, connect it to the SPEAKERS SURROUND BACK L jack.
AUDIO
OUT
CENTER
SPEAKERS
SUB
WOOFER
L
R
+ – + ––
MONITOR
OUT
NT VIDEO
Y
P
B/CB
/B–Y
P
R/CR
/R–Y
FRONT A
LR
L
+ ––
AC OUTLET
A
Ee
A
Ee
A
Ee
E e
A
INPUT
AUDIO
IN
B
E e
A
SPEAKERS
FRONT B*
E e
A
Ee
A
SURROUND BACK
LR
+
SURROUND
SPEAKERS
+
R
FRONT B
Sub woofer
Surround back
speaker (Left)**
Center speakerSurround back
speaker (Right)**
Front speaker
(Right)
Surround speaker
(Right)
Surround speaker
(Left)
Front speaker
(Left)
