49
STR-K1600
Ver. 1.1
SECTION 6
EXPLODED VIEWS
Ref. No. Part No. Description Remark

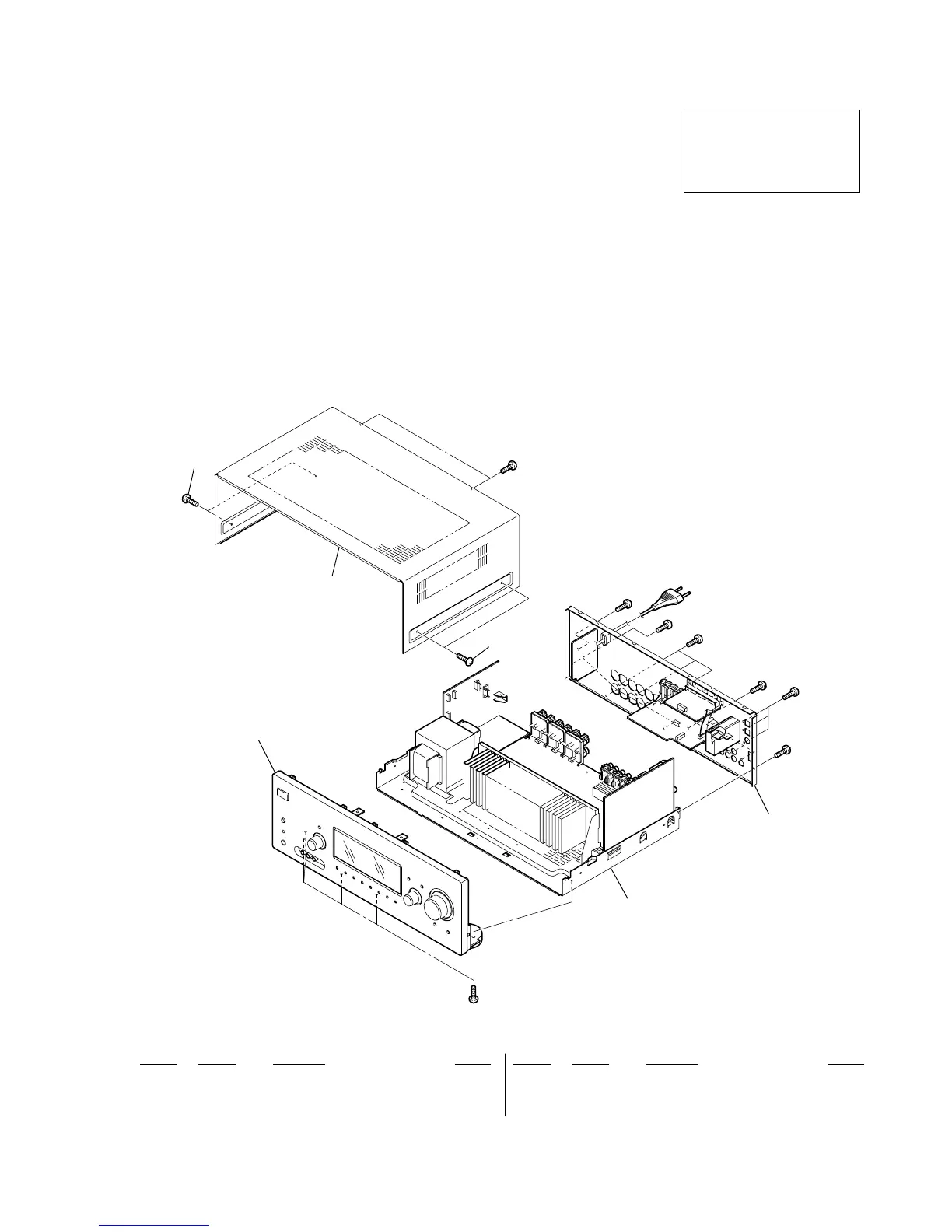

6-1. CASE SECTION
Ref. No. Part No. Description Remark
12-661-145-11 CASE (BLACK)...(BLACK) (MX)
12-661-145-31 CASE (SILVER)...(SILVER) (EXCEPT MX)
23-363-099-02 SCREW (CASE 3 TP2) (BLACK)...(BLACK) (MX)
2 3-363-099-11 SCREW (CASE 3 TP2) (SILVER)...(SILVER)
(EXCEPT MX)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
NOTE:
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Color Indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ... (RED)
Parts Color Cabinet’s Color
• Accessories are given in the last of this parts list.
R
R
•Abbreviation
MX : Mexican model
E51 : Chilean and Peruvian models
AUS: Australian model
MY : Malaysia model
SP : Singapore model
TH : Thai model
AR : Argentina model
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
1
2
2
#1
#1
#1
#1
#1
#1
#1
#1
front panel section
back panel sectio
To Next Page
