Sony STR-K1600 - Section 2 Disassembly; Case Disassembly

8
STR-K1600
Note : This set can be disassemble according to the following sequence.
SECTION 2
DISASSEMBLY
2-1. CASE
Note : Follow the disassembly procedure in the numerical order given.

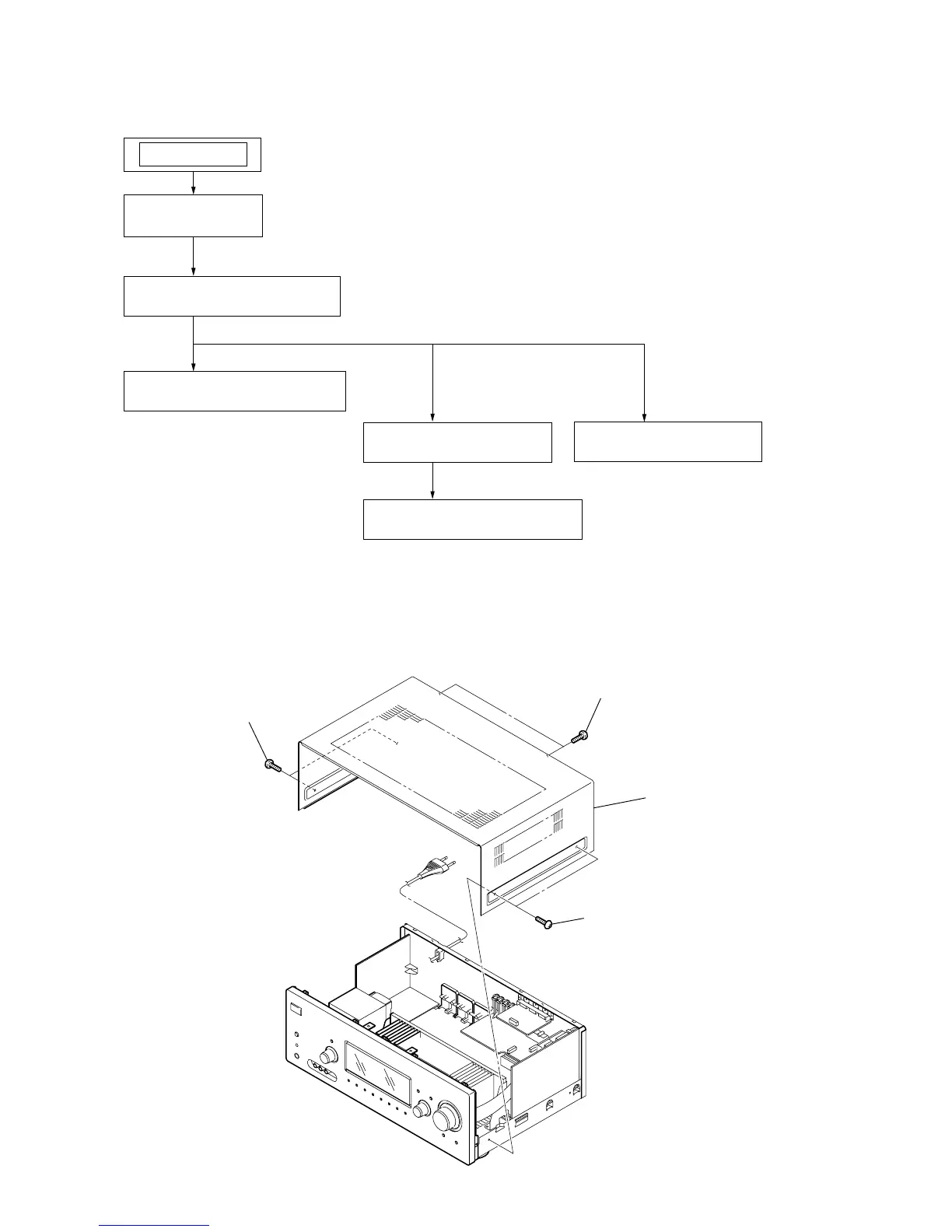

1 two screws
(case 3 TP2)
2 two screws
(case 3 TP2)
3 two screws
(+BVTP 3
× 8
)
4 case
2-1. CASE
(Page 8)
2-3. FRONT PANEL SECTION
(Page 9)
SET
2-2. BACK PANEL SECTION
(Page 9)
2-6. STANDBY BOARD
(Page 11)
2-4. DIGITAL BOARD
(Page 10)
2-5. MAIN BOARD SECTION
(Page 10)
