STR-KM5/KM7
5
HDMI RE PC board
Extension jigs
(A-1870-129-A)
DCDC board
DIGITAL AUDIO board
Connect jig to the HDMI RE PC board (CN3510 (5P)),
DCDC board (CN1503 (13P)) and
DIGITAL AUDIO board (CN2502 (8P))
Connect jig to the POWER AVIDEO board (CN271 (12P)),
and DIGITAL AUDIO board (CN2103 (12P))
Connect jig to the MAIN board (CN300 (14P)), (CN301 (14P)) and
DIGITAL AUDIO board (CN2105 (14P)), (CN2104 (14P))
POWER AVIDEO board
Connect RCA cord/audio cord to the
DIGITAL AUDIO board (J2301
(DIGITAL COAXIAL BD/DVD IN)) and
POWER AVIDEO board (J210
(MONITOR VIDEO OUT))

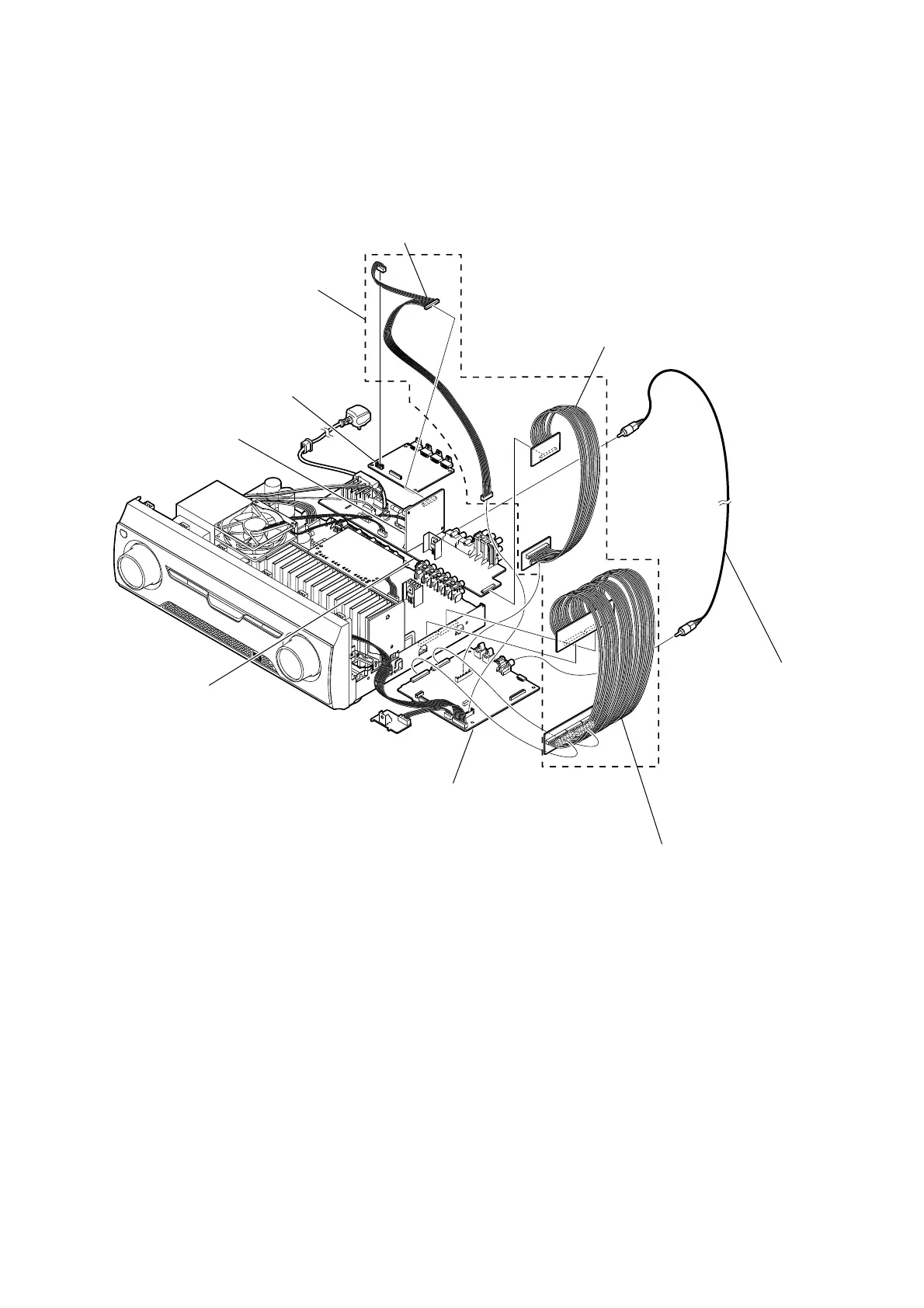

MICOM (IC2105) ON DIGITAL AUDIO BOARD SERVICE POSITION
• In checking the MICOM (IC2105) on the DIGITAL AUDIO board, prepare a set of extension jigs (A-1870-129-A) which consists of
three extension cables and one RCA cord/audio cord (for grounding purpose).
